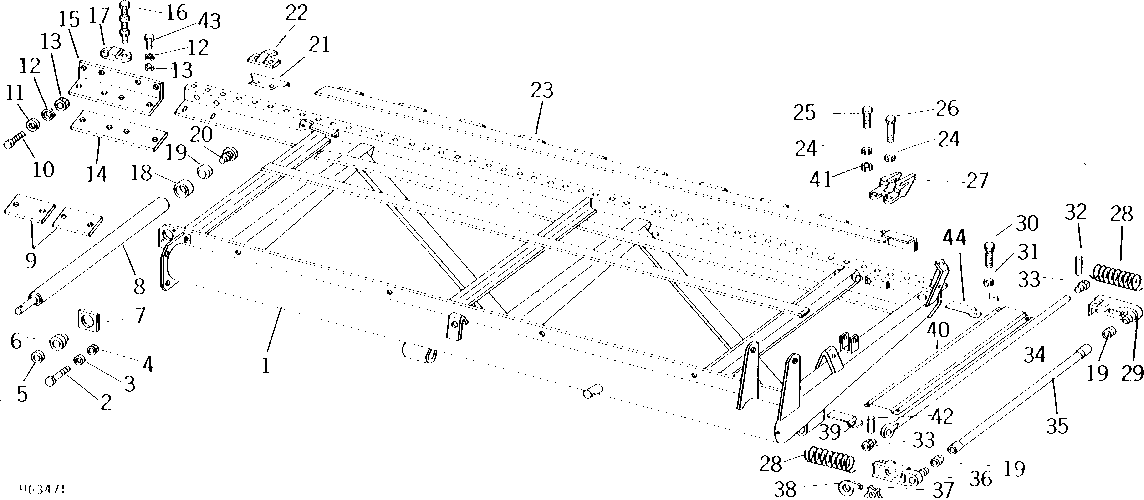

RIGHT-HAND MAIN FRAME, DRAPER DRIVE AND IDLER ROLLER [A09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AW16343	1	MAIN FRAME	(SUB FOR AW13881)
2	03H1540	2	Bolt	5/16" X 3/4"
3	12H303	2	Lock Washer	5/16"
4	14H785	2	Nut	5/16"
5	AW14412	1	ECCENTRIC LOCKING COLLAR	(SUB JD8563)
6	AW14341	1	BALL BEARING	-
7	W12243	1	Pressed Flanged Housing	-
8	AW13819	1	ROLLER	-
9	W19100	1	STRAP	-
10	19H1815	4	Cap Screw	1/2" X 1-1/4"
11	24H1162	4	Washer	17/32" X 1-1/4" X 0.060"
12	12H301	8	Lock Washer	1/2"
13	14H1040	8	Nut	1/2"
14	W17089	1	STRAP	-
15	W22281	1	BRACKET	(SUB FOR W17097)
16	03H1834	1	Bolt	3/8" X 2"
16	12H304	1	Lock Washer	3/8"
16	14H1076	1	Nut	3/8"
17	W18530	1	STRAP	-
18	W14408	1	HOUSING	-
19	AW12279	3	BALL BEARING	-
20	AW16331	1	SHAFT	(SUB FOR AW12274)
21	E47954	12	Cutterbar Wear Plate	(SUB FOR Z5926H)
22	E47955	12	HOLD-DOWN CLIP	(SUB FOR H10925)
23	AW19519	1	RUBBER TRACK BELT	(SUB FOR AW14538)
24	12H304	1	Lock Washer	3/8"
25	19H988	21	CAP SCREW	3/8" X 1-1/4"
26	03H1558	26	Bolt	3/8" X 1-1/2"
27	H61954	24	KNIFE GUARD	-
28	H29476	1	Spring	-
29	AW12700	1	BOX	-
30	19H1948	4	Cap Screw	1/4" X 3/4"
31	12H302	4	Lock Washer	1/4"
32	34H282	2	Spring Pin	3/16" X 1"
33	H11190	2	PINION	-
34	W17099	1	ROD	-
35	AW12699	1	ROLLER	-
36	AW12701	1	BOX	-
37	PK1979H	1	RATCHET	-
38	H10921	1	DOG	-
39	W22279	1	DEFLECTOR	(SUB FOR W14407)
40	W12697	1	PARTITION	-
41	14H1076	1	Nut	3/8"
42	34H296	1	SPRING PIN	7/32" X 15/16"
43	19H1721	1	CAP SCREW	1/2" X 1-1/2"
44	W14406	1	DEFLECTOR	-
