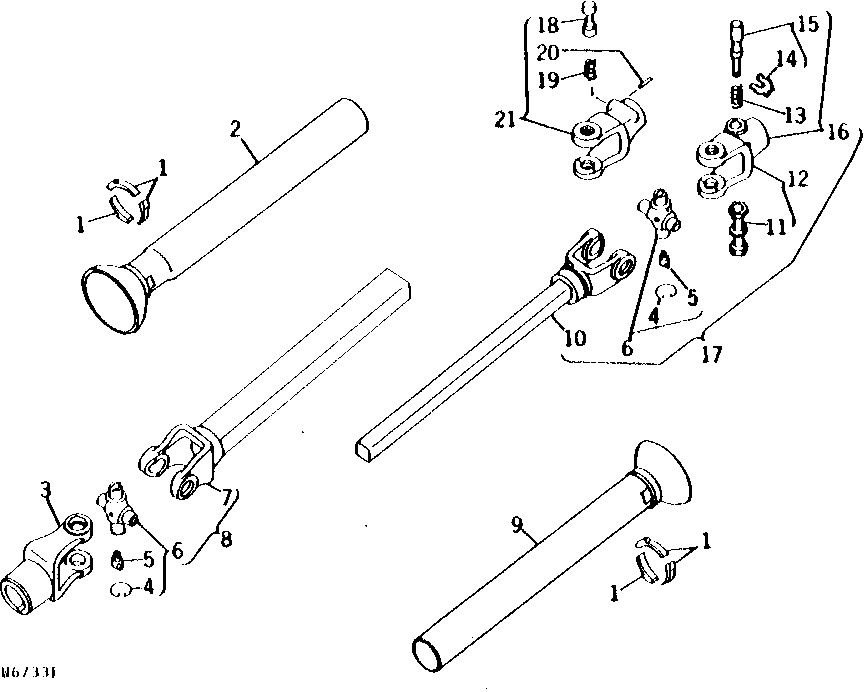

PUSH-PIN YOKE DRIVELINE (TRACTOR TO SUPPORT BEARING) [A16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	W16923	6	PTO SHIELD RETAINER	-
2	AW14790	1	POWERSHAFT SHIELD	-
3	H22217	1	UNIVERSAL JOINT YOKE	-
4	BP13669	1	Snap Ring	-
5	JD7760	1	Lubrication Fitting	-
6	AE23716	1	Cross And Bearing Assembly	-
7	AW13865	1	YOKE WITH TUBE	-
8	AW13839	1	UNIVERSAL JOINT WITH TUBE	-
9	AW18534	1	POWERSHAFT SHIELD	-
10	AW13866	1	YOKE WITH SHAFT	-
11	14H1040	1	Nut	1/2"
11	12H301	1	Lock Washer	1/2"
11	19H1820	1	Cap Screw	1/2" X 3"
12	AW12497	1	UNIVERSAL JOINT YOKE	(1000 RPM)
13	H22802	1	Compression Spring	(540 RPM)
14	Z9785H	1	WASHER	(540 RPM)
15	AW26594	1	QUICK COUPLER KIT	(540 RPM) (INCLUDES PIN, SPRING AND CLIP) (SUB FOR AC13361 OR AW25269)
16	AC13360	1	UNIVERSAL JOINT YOKE	(540 RPM)
17	AW13841	1	UNIVERSAL JOINT WITH SHAFT	(540 RPM)
17	AW13840	1	UNIVERSAL JOINT WITH SHAFT	(1000 RPM)
18	W12260	1	Pin Fastener	(SUB AC13360)
19	W12261	1	SPRING	(SUB AC13360)
20	34H248	1	Spring Pin	1/8" X 13/16"
21	-	1	Part 24	(540 RPM) (SUB AC13360)

PUSH-PIN YOKE DRIVELINE (TRACTOR TO SUPPORT BEARING) [A16]

Нет текстового описания
