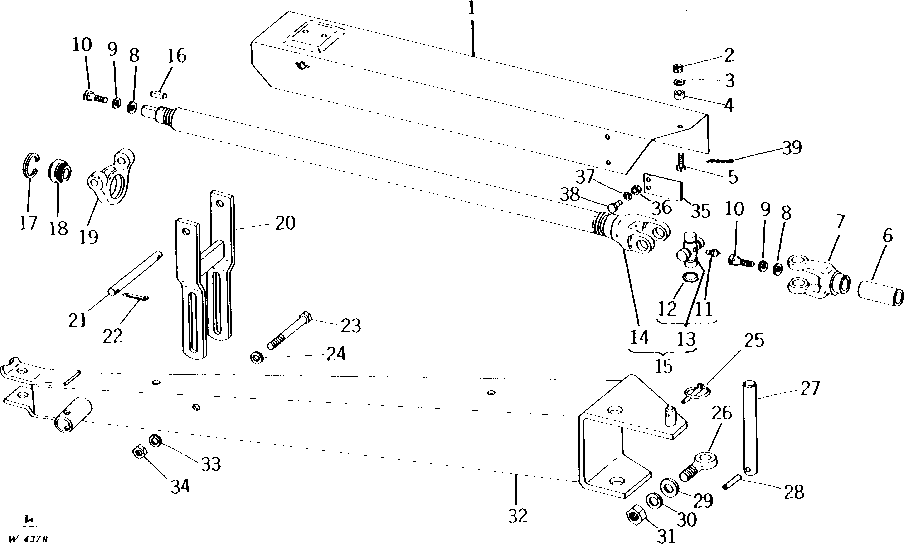

FRONT HITCH, REAR DRIVELINE AND SHIELD [A06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	W17238	1	SHIELD	-
2	14H909	1	Nut	1/2"
3	24H1227	1	Washer	17/32" X 13/16" X 0.060"
4	W17156	1	BUSHING	-
5	W17155	1	BOLT	-
6	W17158	1	BUSHING	-
7	H22217	1	UNIVERSAL JOINT YOKE	-
8	24H1351	1	Washer	9/16" X 1-1/2" X 0.164"
9	12H293	1	Lock Washer	7/16"
10	W19076	2	BOLT	-
11	JD7760	1	Lubrication Fitting	67-1/2°, 1/8"
12	BP13669	4	Snap Ring	-
13	AE23716	1	Cross And Bearing Assembly	KIT, CENTER PARTS
14	AW13844	1	YOKE WITH TUBE	-
15	AW13845	1	UNIVERSAL JOINT WITH SHAFT	(SUB AE23716, AW13844, H22217)
16	P46328	1	KEY	-
17	P42232	1	Snap Ring	-
18	JD7160	1	BALL BEARING	-
19	W12798	1	HOUSING	-
20	AW13821	1	SUPPORT	-
21	W10267	1	PIN FASTENER	-
22	11M7030	2	Cotter Pin	5 X 40 MM
23	19H1872	1	Cap Screw	5/8" X 6"
24	24H1370	1	Washer	21/32" X 1-3/8" X 0.134"
25	AA21292	1	Quick Lock Pin	(SUB FOR B11182)
26	W17197	1	EYEBOLT	-
27	W17152	1	PIN FASTENER	-
28	34H386	1	Spring Pin	1/4" X 2"
29	24H1138	1	Washer	1-1/16" X 2" X 0.134"
30	12H234	1	LOCK WASHER	1"
31	14H805	1	Nut	1"
32	AW13874	1	HITCH	-
33	12H294	1	Lock Washer	5/8"
34	14H1039	1	Nut	5/8"
35	W17890	1	FLAP	-
36	14H786	2	Nut	1/4"
37	12H302	2	Lock Washer	1/4"
38	19H1948	2	Cap Screw	1/4" X 3/4"
38	24H1287	2	Washer	9/32" X 5/8" X 0.065"
39	11M7015	1	Cotter Pin	3.200 X 25 MM

FRONT HITCH, REAR DRIVELINE AND SHIELD [A06]
