Wiring Harness, CommandARM™, Cab

Wiring Harness, CommandARM™, Cab

Wiring Harness, CommandARM™, Cab

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Wiring Harness, CommandARM™, Cab

Нет текстового описания

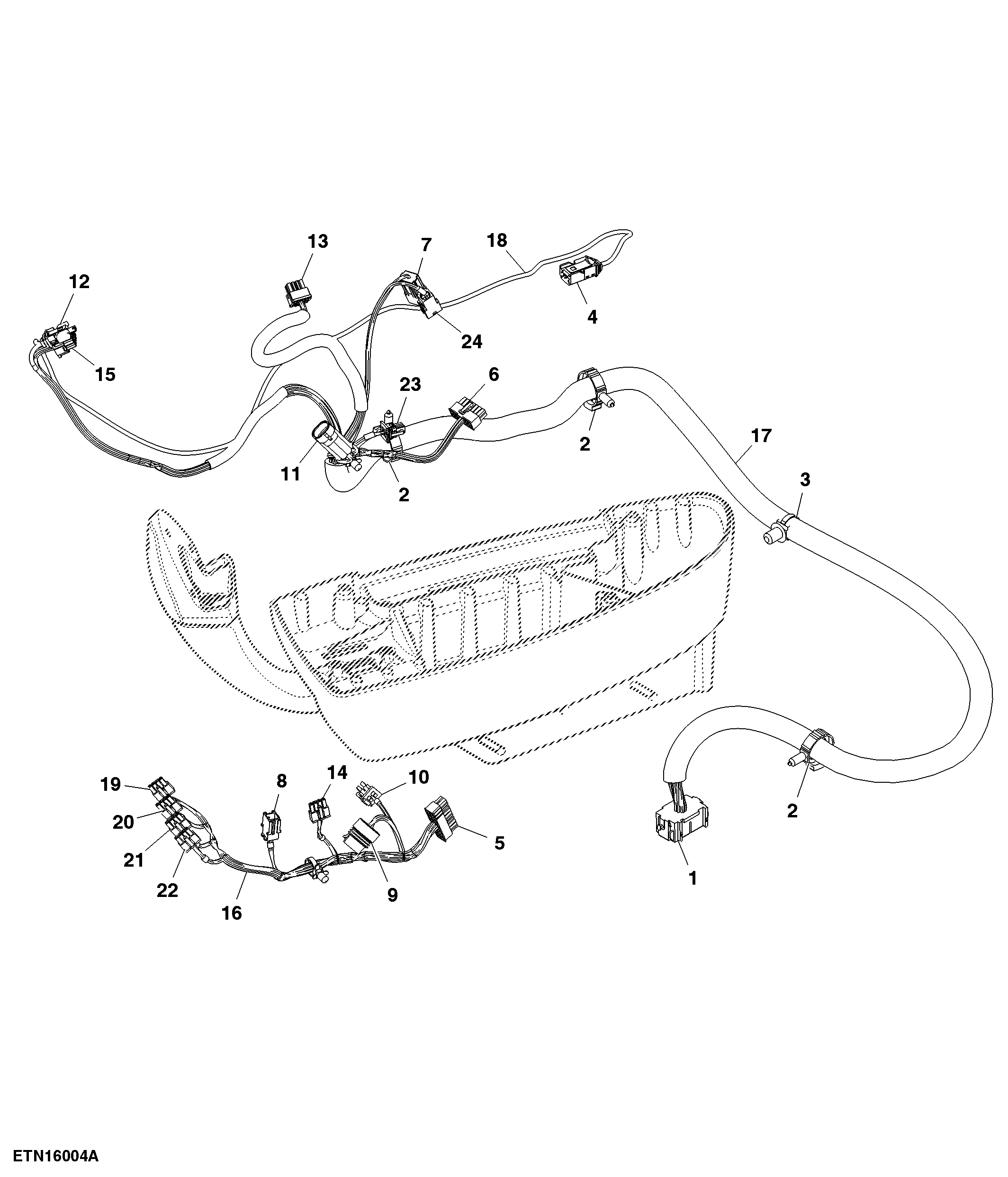

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	Cab Connection
2	57M9212	1	Clip	-
3	R44302	3	Tie Band	-
4	-	1	Part 4	-
5	57M8806	1	Elec. Connector Housing	Armrest Control Unit (USE WITH (20) 57M7427_Pins)
6	57M8804	1	Elec. Connector Housing	Armrest Controller (USE WITH (9) 57M8808_Pins)
7	57M7792	1	Electrical Connector Assy	Secondary Brake Switch (USE WITH (4) 57M8386_Pins)
7	57M7731	1	Electrical Connector Assy	-
8	57M7713	2	Electrical Connector Assy	IMS Switch (USE WITH (4) 57M7548_Pins)
8	57M7718	1	Electrical Connector Assy	-
9	57M8906	1	Elec. Connector Housing	Throttle (USE WITH (6) 57M7830_Pins)
10	57M7712	1	Electrical Connector Assy	Rear PTO Switch (USE WITH (3) 57M7427_Pins)
10	57M7718	1	Electrical Connector Assy	-
11	57M7256	1	Elec. Connector Housing	Neutral Start Switch (USE WITH (2) 57M7552_Pins and (2) 57M7258_Seals)
11	57M7289	1	Elec.Connect Locking Device	-
12	-	1	Part 16	-
13	57M8802	1	Elec. Connector Housing	Cab Switch Module (USE WITH (6) 57M8808_Pins)
14	57M7708	5	Electrical Connector Assy	SCV 4 Paddle POT (USE WITH (4) 57M7427_Pins)
15	57M7470	1	Elec. Connector Housing	Secondary Display Unit (USE WITH (9) 57M8808_Pins)
16	RE265577	1	Cab Wiring Harness	-
17	RE308195	1	Wiring Harness	-
18	RE283569	1	Monitor Wiring Harness	-
19	57M7708	5	Electrical Connector Assy	Rear Hitch (USE WITH (4) 57M7427_Pins)
20	57M7708	5	Electrical Connector Assy	SCV 1 Paddle POT (USE WITH (4) 57M7427_Pins)
21	57M7708	5	Electrical Connector Assy	SCV 2 Paddle POT (USE WITH (4) 57M7427_Pins)
22	57M7708	5	Electrical Connector Assy	SCV 3 Paddle POT (USE WITH (4) 57M7427_Pins)
23	57M7712	1	Electrical Connector Assy	Front PTO Switch (USE WITH (3) 57M8808_Pins)
23	57M7718	1	Electrical Connector Assy	-
24	57M7713	2	Electrical Connector Assy	Inverter Connector (USE WITH (2) 57M7548_Pins)
24	57M7718	1	Electrical Connector Assy	Inverter Connector (USE WITH (2) 57M7548_Pins)
