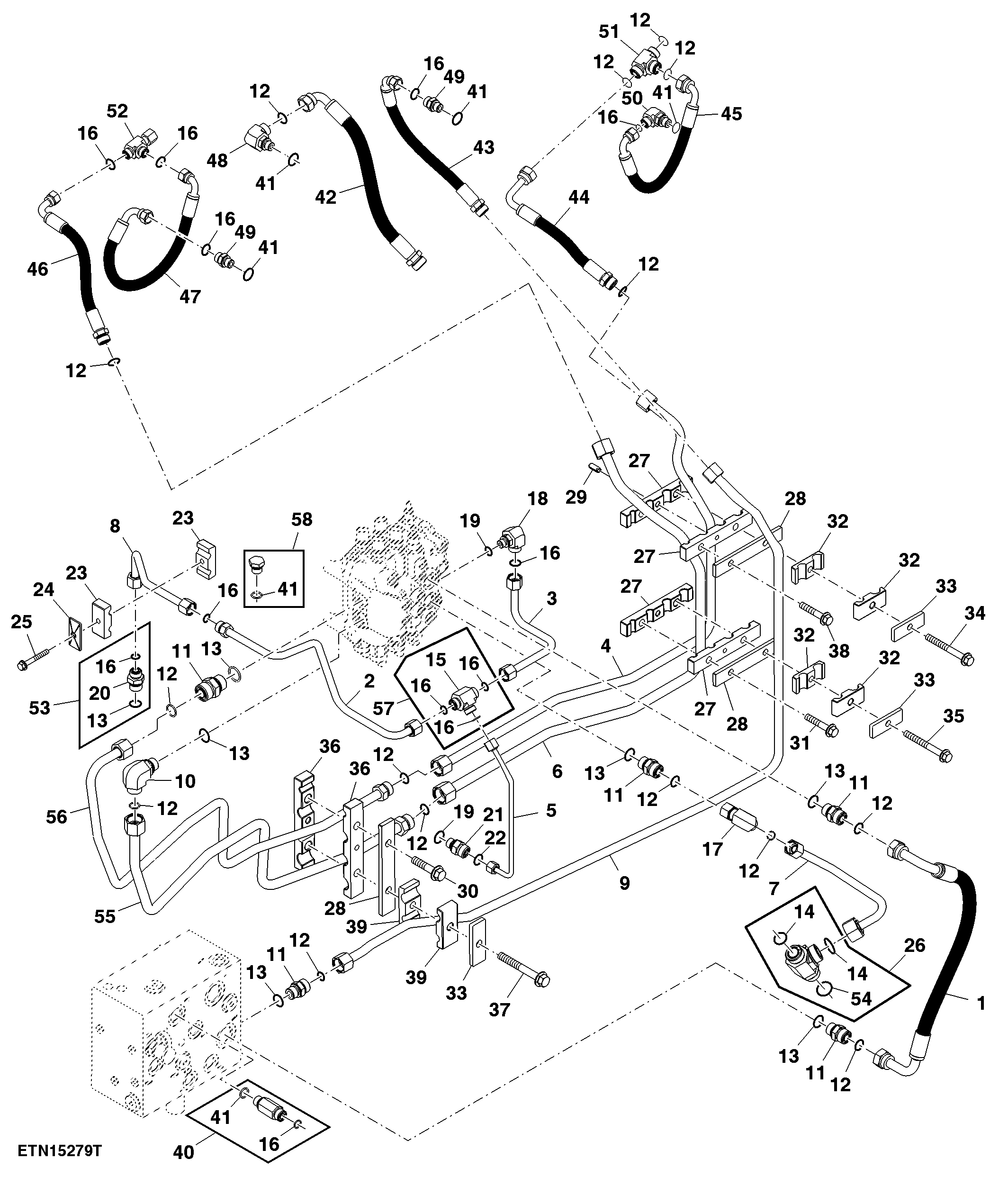

Steering System, W/O ACS™

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE345816	1	Hydraulic Hose	P Port to EH Port on Manifold
1	RE310995	1	Hydraulic Hose	NLA; ORDER RE345816
2	RE312031	1	Oil Line	Tank Return
3	RE312032	1	Oil Line	Autotrac Valve PT Tank Port
4	RE330800	1	Oil Line	Port A to Steering Valve
5	RE312029	1	Oil Line	Manifold to Tank Return
6	RE330798	1	Oil Line	Port B on Manifold to Steering Valve
7	RE297890	1	Oil Line	T Port to SCV
8	RE312862	1	Oil Line	Differential Case to Tank return
9	RE330477	1	Oil Line	Steering Manifold to Steering Vlave
10	38H5018	1	Elbow Fitting	-
11	38H5004	5	Adapter Fitting	-
12	T77932	1	O-Ring	-
13	51M7045	1	O-Ring	19.300 X 2.200 mm
14	T76938	1	O-Ring	-
15	38H5031	1	Tee Fitting	-
16	T77857	1	O-Ring	-
17	38H1096	1	Elbow Fitting	-
18	38H5023	1	Elbow Fitting	-
19	51M7041	1	O-Ring	11.300 X 2.200 mm
20	38H5076	1	Adapter Fitting	-
21	38H5002	1	Adapter Fitting	-
22	T77613	1	O-Ring	-
23	H141510	2	Clamp	-
24	H112567	1	Plate	-
25	19M7801	1	Screw	M8 X 60
26	61M5110	1	Tee Fitting	-
27	R313221	4	Half Clamp	-
28	R221777	3	Plate	-
29	34M7061	1	Spring Pin	8 X 20 mm
30	19M7807	1	Screw	M10 X 60
31	19M7807	1	Screw	M10 X 60
32	R318379	4	Half Clamp	-
33	R221778	3	Plate	-
34	19M7810	1	Screw	M10 X 80
35	19M7811	1	Screw	M10 X 90
36	R307873	2	Half Clamp	-
37	19M7811	1	Screw	M10 X 90
38	19M7806	1	Screw	M10 X 50
39	R318378	2	Half Clamp	-
40	61M5153	1	Adapter Fitting	-
41	51M7043	1	O-Ring	15.300 X 2.200 mm
42	RE304983	1	Hydraulic Hose	Steering Valve Return
43	RE304993	1	Hydraulic Hose	Steering Valve Supply
44	RE305230	1	Hydraulic Hose	Port A to RH Steering Line
45	RE306986	1	Hydraulic Hose	Steering Valve RH Outlet to Top Front
46	RE304987	1	Hydraulic Hose	Port B Line to LH Steering Line
47	RE304988	1	Hydraulic Hose	Steering Valve LH Outlet to Top Front
48	38H5024	1	Elbow Fitting	-
49	38H5003	2	Adapter Fitting	-
50	38H5017	1	Elbow Fitting	-
51	38H5112	1	Tee Fitting	-
52	38H5069	1	Tee Fitting	-
53	61M5076	1	Adapter Fitting	-
54	51M7048	1	O-Ring	29.600 X 2.900 mm
55	RE330799	1	Oil Line	-
56	RE330801	1	Oil Line	-
57	61M5031	1	Tee Fitting	EH Valve and Manifold Tank Return Lines
58	RE46685	1	Fitting Plug	-
