Открытый узел

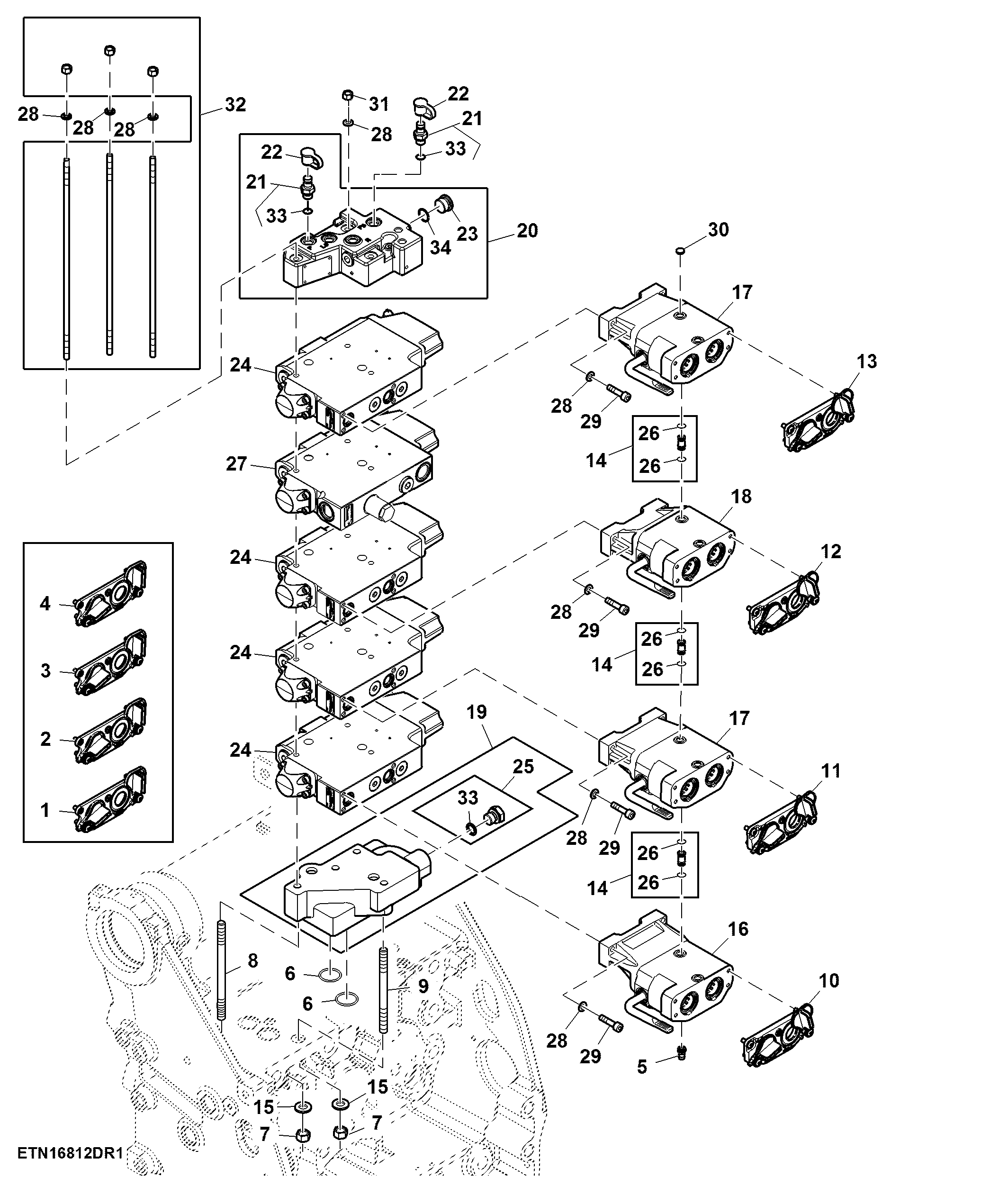

Selective Control Valve, 4 SCV, W/ Hitch Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE289055	1	Cover	Number I, Green, SCV Coupler ORDER RE574941
2	RE289056	1	Cover	Number II, Blue, SCV Coupler ORDER RE574660
3	RE289057	1	Cover	Number III, Brown, SCV Coupler ORDER RE574942
4	RE289058	1	Cover	Number IV, Black, SCV Coupler ORDER RE574943
5	R267668	2	Hose Fitting	-
6	T122075	2	O-Ring	-
7	14M7275	2	Nut	M12
8	42M7062	1	Stud	-
9	L169038	1	Stud	-
10	RE574941	1	Cover	Number I, Green, SCV Coupler
11	RE574660	1	Cover	Number II, Blue, SCV Coupler
12	RE574942	1	Cover	Number III, Brown, SCV Coupler
13	RE574943	1	Cover	Number IV, Black, SCV Coupler
14	RE272882	6	Tube	-
15	24M7240	2	Washer	13 X 25 X 3 mm
16	RE559659	1	Breakaway Coupler	Low Profile SUB FOR RE262015
17	RE559660	2	Breakaway Coupler	Mid Profile SUB FOR RE262016
18	RE559661	1	Breakaway Coupler	High Profile SUB FOR RE262017
19	RE260570	1	Manifold	-
20	RE292728	1	Manifold	-
21	RE190805	3	Diagnostic Coupling	-
22	R77175	3	Cover	-
23	R116115	1	Fitting	ALSO ORDER 51M7045
24	RE580227	4	Selective Control Valve	SUB FOR RE337466
25	RE46684	1	Fitting Plug	-
26	R10093	12	O-Ring	-
27	RE563557	1	Selective Control Valve	ORDER RE580525
27	RE588380	1	Selective Control Valve	SUB FOR RE580525
28	24M7095	19	Washer	8.400 X 15 X 1.600 mm
29	R266977	16	Socket Head Screw	-
30	R267667	2	Cap	-
31	14M7327	3	Lock Nut	M8
32	RE283442	1	Stud Kit	-
33	51M7041	4	O-Ring	11.300 X 2.200 mm
34	51M7045	1	O-Ring	19.300 X 2.200 mm

Selective Control Valve, 4 SCV, W/ Hitch Valve

Нет текстового описания
