Открытый узел

Roof Wiring Harness (ATC)

Roof Wiring Harness (ATC)

Roof Wiring Harness (ATC)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

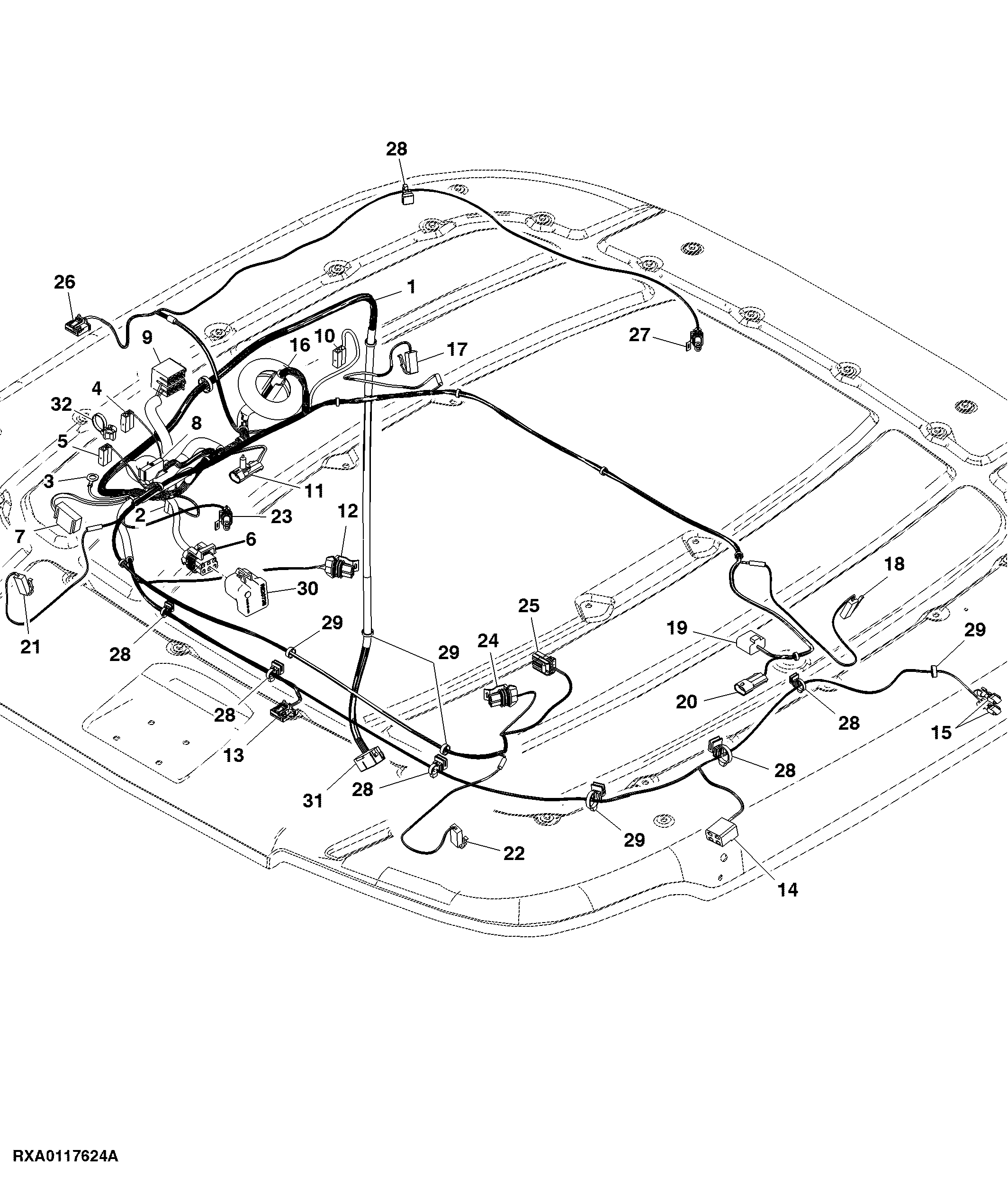

Roof Wiring Harness (ATC)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE307734	1	Roof Wiring Harness	ATC
2	57M7790	1	Electrical Connector Assy	Rear Wiper USE WITH 57M9189_Pins
2	57M7729	1	Electrical Connector Assy	-
3	57M8865	1	Elec. Connector Terminal	Chassis Ground
4	T107135	1	Electrical Connector Assy	Map Light
5	57M8968	1	Elec. Connector Housing	Console Light
6	57M7260	1	Elec. Connector Housing	Vehicle CAN Active Terminator Connector USE WITH (6) R104846_Pins, (4) 57M7258_Seals, (2) 57M9215_Seals
6	57M7291	1	Electrical Connector Assy	-
7	57M8033	1	Elec. Connector Housing	Rocket Switch 3 Pins Connector
8	-	1	Part 10	Control Head USE WITH (19) 57M8719_Pins
8	57M8721	1	Elec. Connector Accessory	-
9	57M8781	1	Elec. Connector Housing	Radio Connector 15 Pins Connector
10	57M8843	1	Elec. Connector Housing	Business Band Device USE WITH (3) MP150M18_Pins
10	57M9413	1	Clip	-
10	57M7725	1	Electrical Connector Assy	-
11	57M7256	1	Elec. Connector Housing	Power Mirror Inline USE WITH (2) 57M7252_Pins, (2) 57M7258_Seals
11	57M7289	1	Elec.Connect Locking Device	-
12	57M8612	1	Elec. Connector Housing	Cab Temp Sensor USE WITH (2) 57M8560_Pins, 57M8566_Seal, 57M8380_Seal
12	57M8633	1	Elec. Connector Accessory	-
13	57M8933	1	Elec. Connector Housing	HVAC Air Mode Actuator USE WITH (5) 57M8719_Pins
14	57M8761	1	Elec. Connector Housing	Dome Lamp Switch 3 Pins Connector
15	57M9199	1	Elec. Connector Terminal	LH Door Switch (Ground) USE WITH 57M9199_Pin
15	57M9199	1	Elec. Connector Terminal	LH Door Switch (Power) USE WITH 57M9199_Pin
16	-	1	Part 24	-
17	57M9669	1	Elec. Connector Housing	Right Rear Speaker USE WITH (2) 57M9714_Pins
18	57M9669	1	Elec. Connector Housing	Left Rear Speaker USE WITH (2) 57M9714_Pins
19	-	1	Part 27	PWM Motor Drive
20	57M8958	1	Elec. Connector Housing	Pressurizer Blower Motor 3 Pins Connector
21	57M9669	1	Elec. Connector Housing	Right Front Speaker USE WITH (2) 57M9714_Pins
22	57M9669	1	Elec. Connector Housing	Left Front Speaker USE WITH (2) 57M9714_Pins
23	57M7254	1	Elec. Connector Housing	Evaporator Temp Sensor USE WITH (2) 57M7494_Pins and 57M9214_Seals, 57M9215_Seals
23	57M7289	1	Elec.Connect Locking Device	-
24	57M8624	1	Elec.Connect Locking Device	-
24	57M8601	1	Elec. Connector Housing	Refrigerant Pressure Sensor USE WITH (3) 57M8560_Pins and (3) 57M8566_Seals
25	57M8612	1	Elec. Connector Housing	Duct And Case Temp Sensor USE WITH (2) 57M8560_Pins and 57M8380_Seals, 57M8566_Seals
25	57M8633	1	Elec. Connector Accessory	-
26	57M8206	1	Elec. Connector Housing	Electric Water Valve USE WITH (5) MCPF18_Pins
26	T186022	1	Electrical Connector Assy	-
27	57M8924	1	Elec. Connector Housing	Roof Temp Sensor USE WITH (2) 57M8560_Pins, 57M8566_Seal, 57M8380_Seal
27	57M8633	1	Elec. Connector Accessory	-
28	57M9229	8	Clip	-
29	RE258807	6	Tie Band	-
30	RE207311	1	Electronic Control Unit	-
31	57M11351	1	Elec. Connector Housing	Cab Inline Connector
32	57M11797	1	Elec. Connector Accessory	-
