Открытый узел

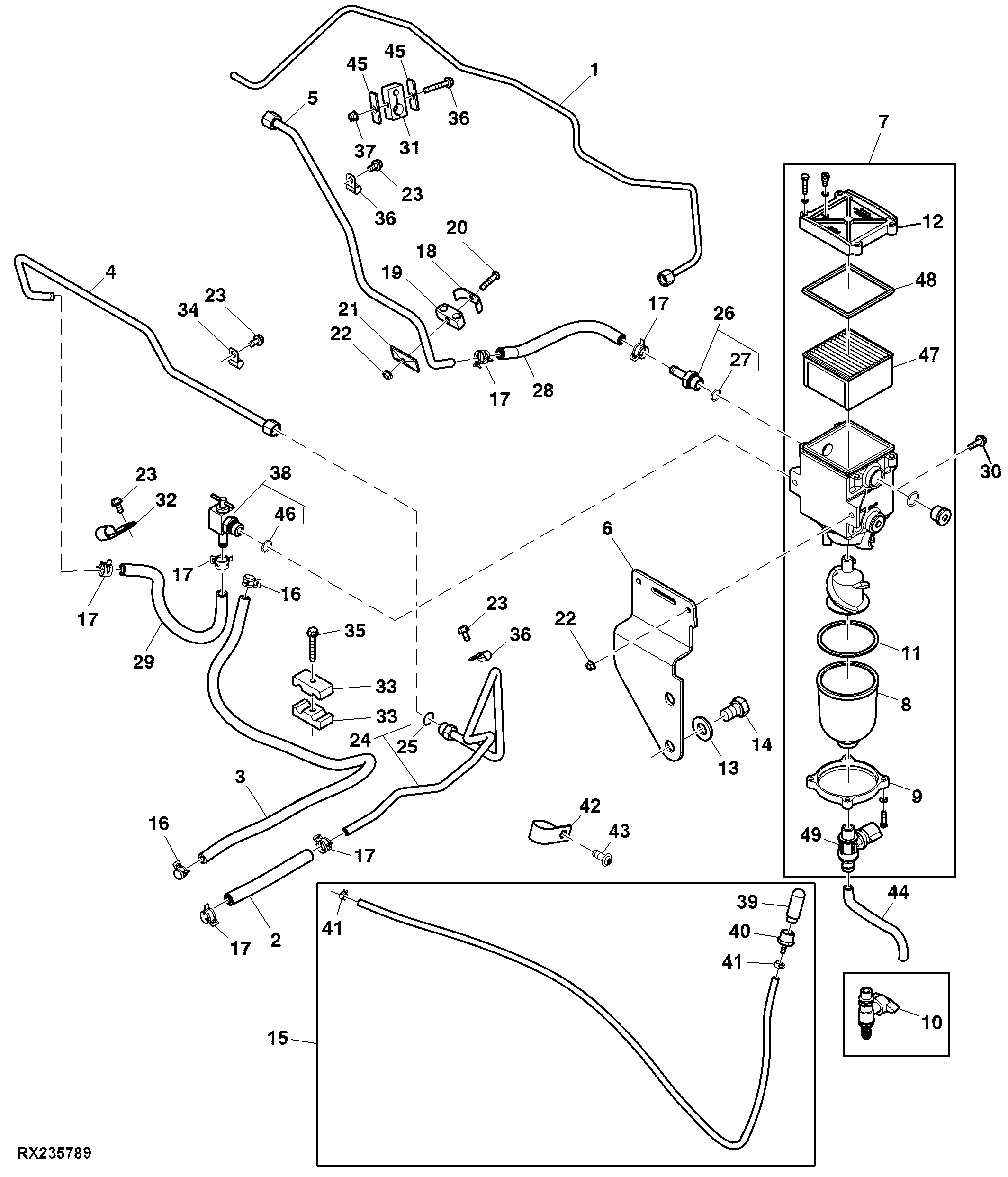

Fuel Lines, W/ Water Separator, Stage II

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE317274	1	Fuel Line	(Stage II) Engine to Cooler
2	R334400	1	Hose	Fuel Tank to Fuel Filter SUB FOR R293598
3	R293600	1	Hose	-
4	RE334402	1	Fuel Line	(W/ Water Separator) Fuel Tank to Fuel Filter SUB FOR RE301013
5	RE312416	1	Fuel Line	(W/ Water Separator) (Stage II) Filter to Engine
6	R339783	1	Bracket	(W/ Water Separator) SUB FOR R334403 OR R260099
7	RE575968	1	Sediment Bowl	(W/ Water Separator) SUB FOR RE242329
8	R281523	1	Bowl	(W/ Water Separator)
9	R281524	1	Ring	(W/ Water Separator)
10	R281525	1	Drain Valve	(W/ Water Separator) ORDER R553405
11	R281527	1	Gasket	(W/ Water Separator)
12	R281529	1	Cover	(W/ Water Separator)
13	24M7242	2	Washer	(W/ Water Separator) 21.400 X 42 X 5 mm
14	19M7946	2	Cap Screw	(W/ Water Separator) M20 X 40
15	-	1	Part 15	CTL 1579.6 mm, MF TY22551
16	R202160	2	Clamp	-
17	R184863	6	Hose Clamp	-
18	R184060	1	Cover	(W/ Water Separator)
19	R184066	1	Clamp	(W/ Water Separator)
20	R184640	1	Screw	(W/ Water Separator)
21	H112567	1	Plate	(W/ Water Separator)
22	14M7298	3	Flange Nut	(W/ Water Separator) M8
23	19M7865	4	Screw	(W/ Water Separator) M8 X 16
24	RE334398	1	Fuel Line	Fuel Tank to Fuel Filter SUB FOR RE319326
25	T15712	1	O-Ring	-
26	RE321504	1	Hose Fitting	-
27	HXE21461	1	O-Ring	-
28	R321505	1	Hose	(W/ Water Separator) Filter to Engine
29	R321506	1	Hose	(W/ Water Separator) Fuel Tank to Fuel Filter
30	19M7867	2	Screw	(W/ Water Separator) M8 X 25
31	R243509	1	Hose Clamp	-
32	T27523	1	Clamp	-
33	H141706	2	Clamp	-
34	H75541	3	Clamp	(W/ Water Separator)
35	19M7979	1	Screw	M8 X 55
36	19M7800	1	Screw	M8 X 50
37	14M7396	1	Lock Nut	M8
38	RE287835	1	Valve	(W/ Water Separator)
39	H216169	1	Breather	-
40	H217849	1	Fitting	-
41	R56101	2	Clip	-
42	T27550	1	Clip	-
43	R216838	1	Screw	-
44	R339717	1	Hose	ORDER R334579
44	R334579	1	Hose	-
45	R243511	2	Plate	-
46	51M7097	1	O-Ring	18 X 2.500 mm
47	N378886	1	Fuel Filter	-
48	N378887	1	Gasket	-
49	R553405	1	Drain Valve	-

Fuel Lines, W/ Water Separator, Stage II

Нет текстового описания
