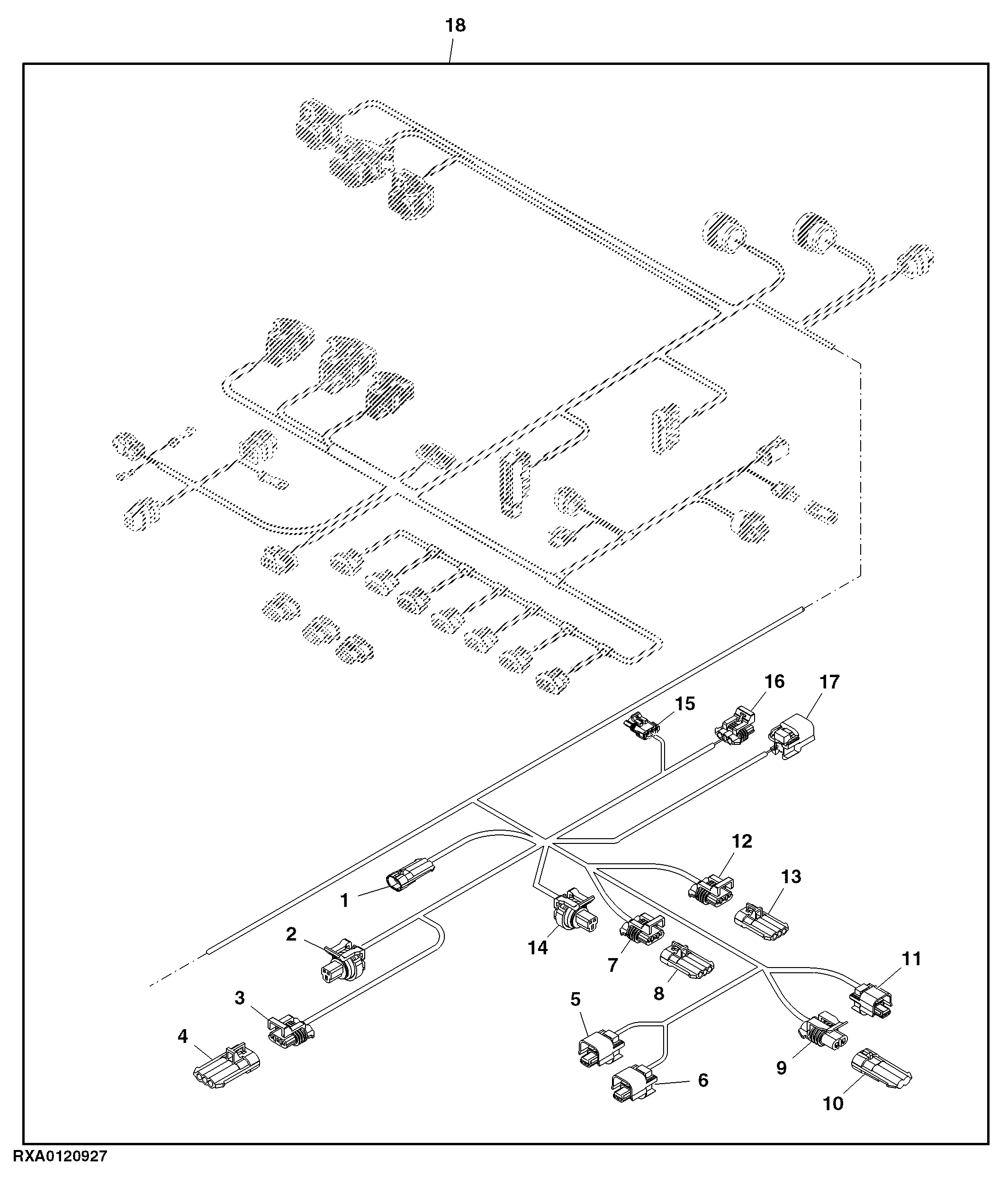

Chassis Wiring Harness Connectors, MFWD, W/ AutoTrac™, T2 Engine (5/5)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7289	1	Elec.Connect Locking Device	-
1	57M7256	1	Elec. Connector Housing	Clean Oil Reservoir Switch, USE WITH (2) 57M7495_Pins AND 57M9215_Seal
2	57M8625	1	Elec. Connector Housing	Hyd Oil Filter Rest, USE WITH 57M8560_Pin, 57M8621_Pin, 57M8566_Seal AND 57M8515_Seal
2	57M8624	1	Elec.Connect Locking Device	-
3	57M7255	1	Elec. Connector Housing	Radar, USE WITH (3) 57M7494_Pins AND (3) 57M9215_Seals
3	57M7290	1	Elec. Connector Accessory	-
4	57M7257	1	Elec. Connector Housing	Dust Cap
4	57M7290	1	Elec. Connector Accessory	-
5	57M8924	1	Elec. Connector Housing	Hydraulic Oil Temp, USE WITH (2) 57M8560_Pins AND (2) 57M8566_Seals
5	57M8633	1	Elec. Connector Accessory	-
6	57M8924	1	Elec. Connector Housing	Rear PTO Solenoid, USE WITH (2) 57M8560_Pins AND (2) 57M8566_Seals
6	57M8633	1	Elec. Connector Accessory	-
7	57M7255	1	Elec. Connector Housing	Primary Wheel Speed, USE WITH 57M8621_Pin AND 57M8515_Seal
7	57M7290	1	Elec. Connector Accessory	-
8	57M7257	1	Elec. Connector Housing	Dust Cap
8	57M7290	1	Elec. Connector Accessory	-
9	57M7289	1	Elec.Connect Locking Device	-
9	57M7254	1	Elec. Connector Housing	Air Trailer Brake
10	57M7256	1	Elec. Connector Housing	Dust Cap
10	57M7289	1	Elec.Connect Locking Device	-
11	57M8924	1	Elec. Connector Housing	Difflock Solenoid, USE WITH (2) 57M8560_Pins AND (2) 57M8566_Seals
11	57M8633	1	Elec. Connector Accessory	-
12	57M7255	1	Elec. Connector Housing	Secondary Wheel Speed, USE WITH 57M8621_Pin AND 57M8515_Seal
12	57M7290	1	Elec. Connector Accessory	-
13	57M7257	1	Elec. Connector Housing	Dust Cap
13	57M7290	1	Elec. Connector Accessory	-
14	57M8625	1	Elec. Connector Housing	Air Brake Pressure, USE WITH (3) 57M8560_Pins AND (3) 57M8566_Seals
14	57M8931	1	Electrical Connector Cap	-
14	57M8624	1	Elec.Connect Locking Device	-
15	RE12364	1	Electrical Connector Assy	Hitch Position Sensor, USE WITH (3) R78058_Pins AND (3) 57M9219_Seals
16	57M7255	1	Elec. Connector Housing	Draft Sensor, USE WITH (3) 57M7494_Pins AND (3) 57M9215_Seals
16	57M7290	1	Elec. Connector Accessory	-
17	57M8924	1	Elec. Connector Housing	Rear PTO Speed MPU Rear PTO Speed MPU, USE WITH (2) 57M8560_Pins AND (2) 57M8566_Seals
17	57M8633	1	Elec. Connector Accessory	-
18	RE335823	1	Chassis Wiring Harness	SUB FOR RE316007

Chassis Wiring Harness Connectors, MFWD, W/ AutoTrac™, T2 Engine (5/5)
