Cab Wiring Harness, Non- ACS™, IVT™, For Region II

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9786	1	Elec. Connector Housing	USE WITH (6) 57M9809_Pins; Steering Input Device
2	57M10233	4	Tie Band	-
3	R77480	1	Electrical Connector Assy	USE WITH (2) 57M9200_Pins; Start Aid
4	57M8857	1	Elec. Connector Housing	USE WITH (14) 57M8863_Pins, 57M12012_Pins, (2) 57M8862_Pins; Column In-Line
4	57M8859	2	Elec.Connect Locking Device	-
4	57M8860	1	Elec.Connect Locking Device	-
5	57M8910	1	Clip	-
6	R277657	1	Elec. Connector Housing	USE WITH (5) 57M7511_Pins, (5) 57M8292_Pins; Key Switch
7	57M9229	2	Clip	-
8	R343435	1	Grommet	-
9	57M9756	1	Elec. Connector Housing	USE WITH (7) 57M11318_Pins; Dual Brake Sensor
10	57M9789	1	Elec. Connector Housing	USE WITH (4) 57M9813_Pins, (2) 57M9811_Pins; AutoTrac™
11	57M11797	2	Elec. Connector Accessory	-
12	57M7328	1	Elec. Connector Housing	USE WITH (2) 57M7494_Pins AND (2) 57M9215_Seals; Differential Lock Switch
12	57M9712	1	Elec. Connector Accessory	-
13	57M8919	1	Elec. Connector Housing	USE WITH (6) 57M8560_Pins AND (6) 57M8566_Seals; Clutch Pedal
14	57M11346	1	Elec. Connector Housing	USE WITH (5) 57M10113_Pins, (2) 57M10110_Pins; Cab In Line 1
15	57M9697	1	Elec. Connector Terminal	USE WITH (3) 57M8299_Pins AND (6) 57M9223_Seals; Foot Throttle
15	57M10692	1	Elec. Connector Accessory	-
16	57M11348	1	Elec. Connector Housing	USE WITH (2) 57M10106_Pins, (16) 57M12012_Pins; Cab In Line 2
17	-	1	Part 21	-
18	57M11364	1	Elec. Connector Accessory	-
19	RE308193	1	Line	-
20	57M7712	1	Electrical Connector Assy	USE WITH (4) 57M7551_Pins; Cab Harness
20	57M7718	1	Electrical Connector Assy	-
20	RWA11122	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
21	57M9121	1	Elec. Connector Housing	ISO Connectoe
21	57M10651	1	Elec. Connector Accessory	-
22	RE248995	1	Wiring Harness	-
23	RE265580	2	Cab Wiring Harness	-
24	57M8901	2	Elec. Connector Terminal	-
25	57M8786	1	Elec. Connector Housing	USE WITH (9) 57M8164_Pins, (2) N282069_Pins; Left Hand Reverser
25	57M7682	1	Elec.Connect Locking Device	-

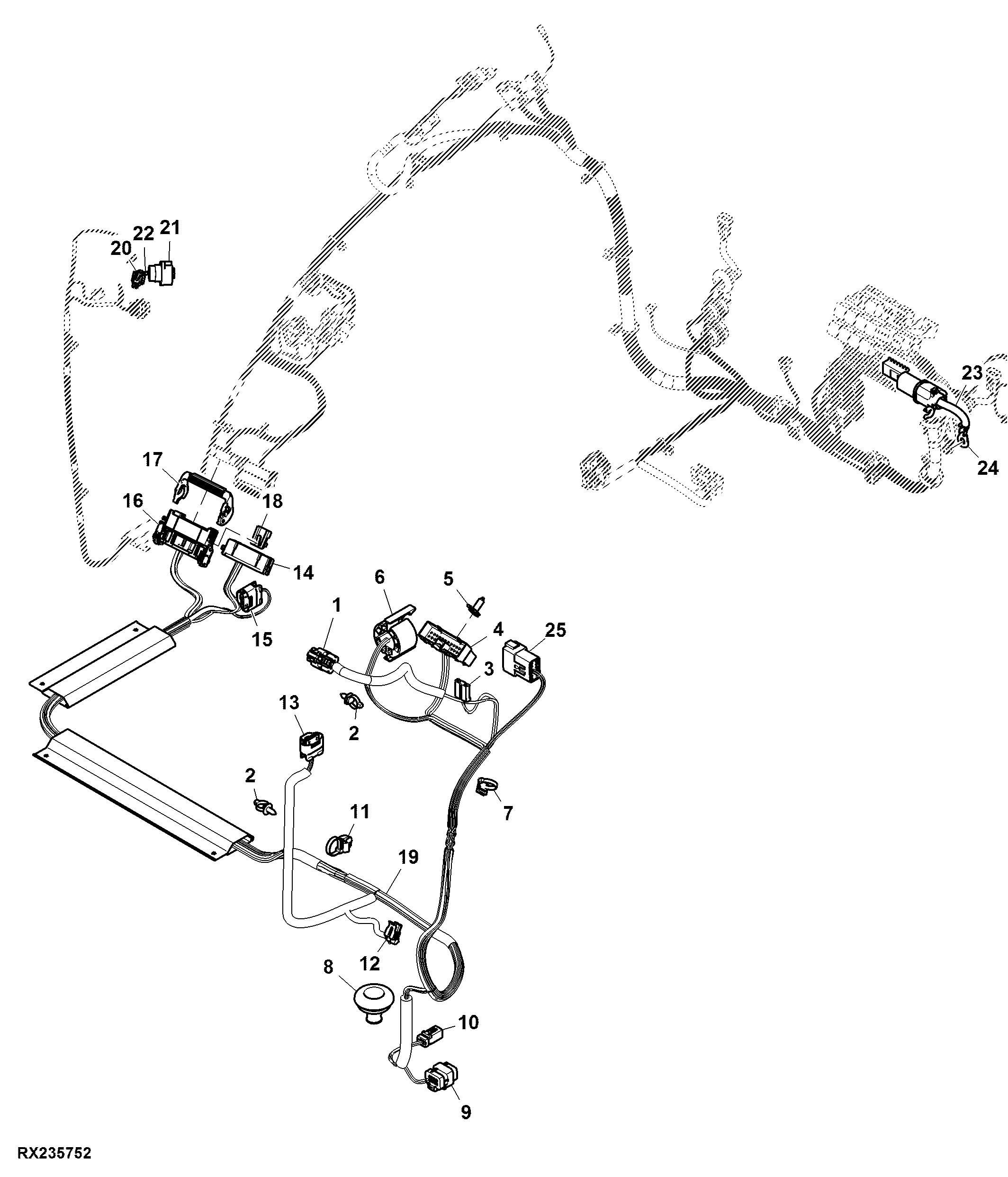

Cab Wiring Harness, Non- ACS™, IVT™, For Region II
