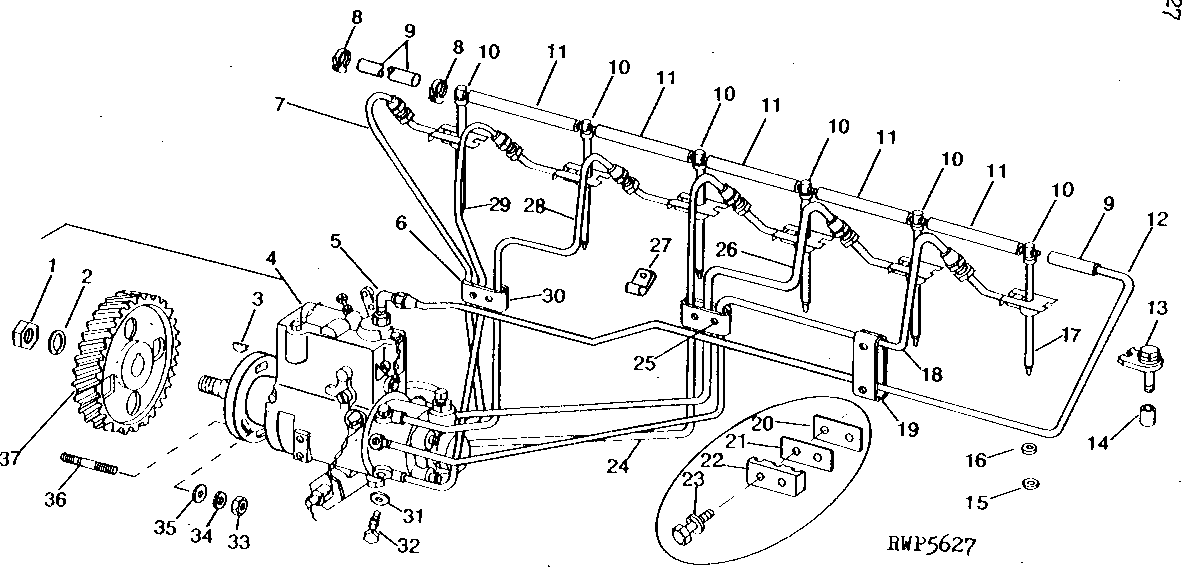

FUEL INJECTION SYSTEM (ROOSA-MASTER) [01D03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48599	1	NUT	-
2	R48600	1	LOCK WASHER	-
3	26H10	1	Shaft Key	5/32" X 5/8"
4	AR61681	1	FUEL INJECTION PUMP	(A) (ROOSA-MASTER NO. JDB633AJ2594)
4	SE500550	1	FUEL INJECTION PUMP REMAN	(A) (REMAN FOR AR61681)
5	R48008	1	ELBOW FITTING	90°
6	T23460	2	HALF CLAMP	(SUB (2) R59297, R59298, R61145, (2) 12H246 AND (2) 19H3358)
7	AR68962	1	FUEL LINE	NO. 1
8	AR48236	2	Clamp	(SUB TY22462)
9	-	2	Part 10	36MM (1.40") (MAKE FROM R68281)
10	AT27622	6	CAP	-
11	-	5	Part 12	112.5MM (4.43") (MAKE FROM R68281)
12	AR61642	1	FUEL LINE	-
13	R34760	6	CLAMP	-
14	R34761	6	SPACER	-
15	R48000	6	Seal	LOWER
16	R34764	6	WASHER	UPPER
16	R60746	6	WASHER	UPPER, (USE WITH AR73673 OR AR88239)
17	AR88239	6	INJECTION NOZZLE	(SUB FOR AR56290 OR AR73673) (SUB AR89564)
18	AR68967	1	FUEL LINE	NO. 6
19	AR72960	1	CLAMP	(SUB (2) R64810, (2) AR76704, R59298 AND R61145)
20	R61145	3	Strap	-
21	R59298	3	Strap	-
22	R64810	2	Clamp	-
23	AR76704	6	SCREW	-
24	AR68965	1	FUEL LINE	NO. 4
25	21H1317	6	SCREW	0.190" X 5/8"
25	12H246	6	LOCK WASHER	0.190"
26	AR68966	1	FUEL LINE	NO. 5
27	T29969	1	Clamp	-
28	AR68964	1	FUEL LINE	NO. 3
29	AR68963	1	FUEL LINE	NO. 2
30	T23461	3	HALF CLAMP	(SUB (2) AR76704, (2) R59297, R59298 AND R61145)
31	T20055	12	WASHER	-
32	R26726	6	HOLLOW SCREW	-
33	14H1076	2	Nut	3/8"
34	12H304	2	Lock Washer	3/8"
35	24M7096	2	Washer	10.500 X 18 X 1.600 MM
36	T20052	2	STUD	-
37	T20165	1	GEAR	(48 TEETH)
..	R68281	1	BULK HOSE	1524MM (60")

FUEL INJECTION SYSTEM (ROOSA-MASTER) [01D03]

Нет текстового описания
