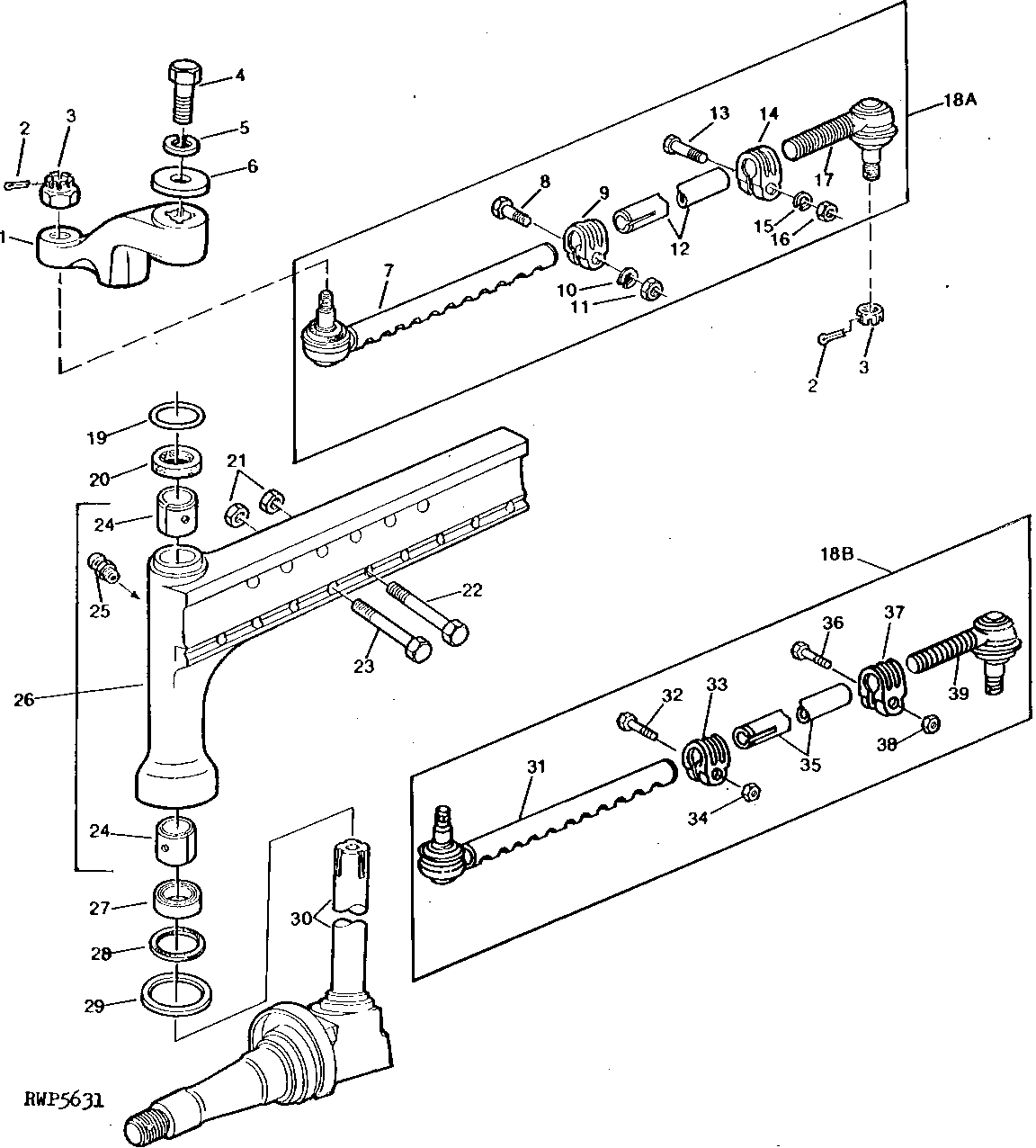

FRONT AXLE KNEE, SPINDLE AND KNUCKLE, TIE ROD ASSEMBLY [02E14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R51187	1	ARM	R.H.
1	R51186	1	ARM	L.H.
2	11M7087	4	Cotter Pin	0.157" X 1.575"
3	14H1086	4	Nut	3/4"
3	14M7305	4	NUT	M18, (USE WITH AL110074, AL110130, L32307, L32311, L64251, 14M7324, 14M7325, 19M8178 AND 19M8616)
4	19H1768	2	Cap Screw	3/4" X 2"
5	12H236	2	Lock Washer	3/4"
6	F3607R	2	Washer	-
7	AL110130	2	BALL JOINT	(OUTER) (SUB FOR AL27534 OR AL38646)
8	19H2528	2	Cap Screw	1/2" X 2"
9	L32307	2	CLAMP	-
10	12H301	2	Lock Washer	1/2"
11	14H865	2	Nut	1/2"
12	L32311	2	PIPE	-
12	L32827	2	TUBE	(A)
13	19H2541	2	CAP SCREW	3/8" X 1-3/4"
14	L31706	2	CLAMP	(SUB AL65925)
15	12H304	2	Lock Washer	3/8"
16	14H1080	2	Nut	3/8"
17	AL26880	2	TIE ROD END	(INNER) (SUB AL38645 AND (2) 14M7305)
19	T15285	2	Shim	0.68MM (.027")
20	T15288	2	WASHER	UPPER
21	14H794	8	Nut	3/4"
22	19H1988	2	Cap Screw	3/4" X 6"
23	19H3210	6	Cap Screw	3/4" X 5-1/4", HS, SAE 8
24	T34546	4	Bushing	-
25	JD7798	2	Lubrication Fitting	1/8"
26	AR74607	1	AXLE	R.H. (MARKED R61487)
26	AR74608	1	Axle	L.H. (MARKED R61488)
26	AL28480	1	KNUCKLE	R.H. (MARKED L32816)
26	AL28481	1	KNUCKLE	L.H. (MARKED L32817)
27	JD8412	2	Thrust Bearing	-
28	T31749	2	Washer	LOWER
29	T34548	2	Washer	-
30	AR74606	2	Knuckle	-
31	AL110130	1	BALL JOINT	(OUTER) (SUB FOR AL38646)
32	19M8154	1	Cap Screw	M12 X 55
33	L32307	1	CLAMP	-
34	14M7325	1	Lock Nut	M12
35	L32311	1	PIPE	-
36	19M7917	1	CAP SCREW	M10 X 45
37	L31706	1	CLAMP	(SUB AL65925)
38	14M7324	1	Lock Nut	M10
39	AL38645	1	BALL JOINT	(INNER)
18A	AR55286	1	TIE ROD ASSEMBLY	(SUB AL110074, AL110130, L32307, L32311, L64251, 14M7324, 14M7325, 19M8178, 19M8616 AND (2) 14M7305)
18A	AL28479	1	ROD	(A) (SUB AL38651)
18B	AL38644	1	TIE ROD ASSEMBLY	(SUB AL110074, AL110130, L32307, L32311, L64251, 14M7324, 14M7325, 19M8178 AND 19M8616)

FRONT AXLE KNEE, SPINDLE AND KNUCKLE, TIE ROD ASSEMBLY [02E14]
