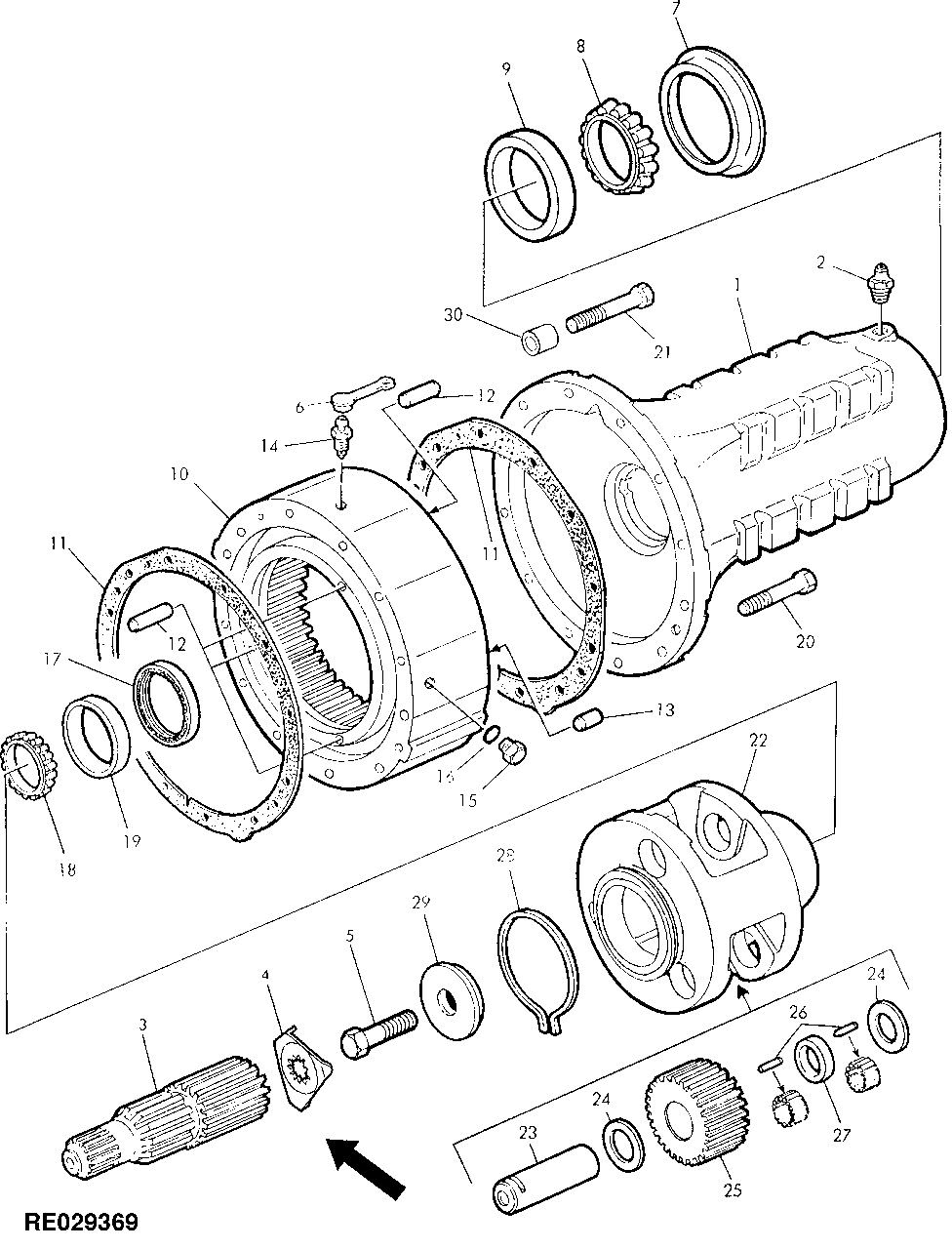

FINAL DRIVE AND REAR AXLE HOUSING [01I17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L33328	2	HOUSING	REAR AXLE, (SUB L33326 AND L37196)
1	T28823	2	HOUSING	REAR AXLE
2	JD7759	2	Lubrication Fitting	STRAIGHT, 1/8"
3	R56278	1	DRIVE SHAFT	L.H.
3	T28119	1	DRIVE SHAFT	R.H.
3	L33977	1	DRIVE SHAFT	R.H.
3	L33976	1	DRIVE SHAFT	L.H.
4	T29451	2	LOCK PLATE	-
4	L33004	2	LOCK PLATE	-
5	19H1768	2	Cap Screw	3/4" X 2"
5	L33040	2	BOLT	(SUB L36228)
6	R47862	2	Cap	-
7	R57269	2	Oil Cup	-
8	JD8963	2	BEARING CONE	OUTER
8	JD8955	2	Bearing Cone	OUTER
9	JD8213	2	Bearing Cup	OUTER
9	JD8290	2	Bearing Cup	OUTER
10	AT26830	2	HOUSING	(MARKED T28834) (SUB AL38447)
10	AL30409	2	HOUSING	(MARKED L33978) (SUB AL38446)
11	T28836	4	GASKET	(SUB L62426)
12	R26650	12	Dowel Pin	-
13	R48685	4	Dowel Pin	-
14	R21612	2	Bleed Valve	-
15	R27216	3	DRAIN PLUG	-
16	R26287	3	O-Ring	-
17	AT26826	2	SEAL	INNER, (SUB AL38358)
18	JD8975	2	BEARING CONE	INNER
19	JD8210	2	Bearing Cup	INNER
20	19H3159	20	CAP SCREW	9/16" X 7"
20	19H3160	20	CAP SCREW	9/16" X 8"
20	19H3429	2	CAP SCREW	9/16" X 8-3/4", (USE WITH L33328)
21	19H3160	4	CAP SCREW	9/16" X 8"
22	T28825	2	CONVEYOR	-
23	T28829	6	PIN FASTENER	-
24	T28827	12	WASHER	-
25	T28828	6	PINION	-
26	AL24088	6	NEEDLE	(PKG. OF 40)
27	T29446	6	BUSHING	-
28	T28832	2	Snap Ring	-
29	T28826	2	SPACER	-
29	L33008	2	WASHER	(SUB L38059)
30	T28493	4	BUSHING	-
