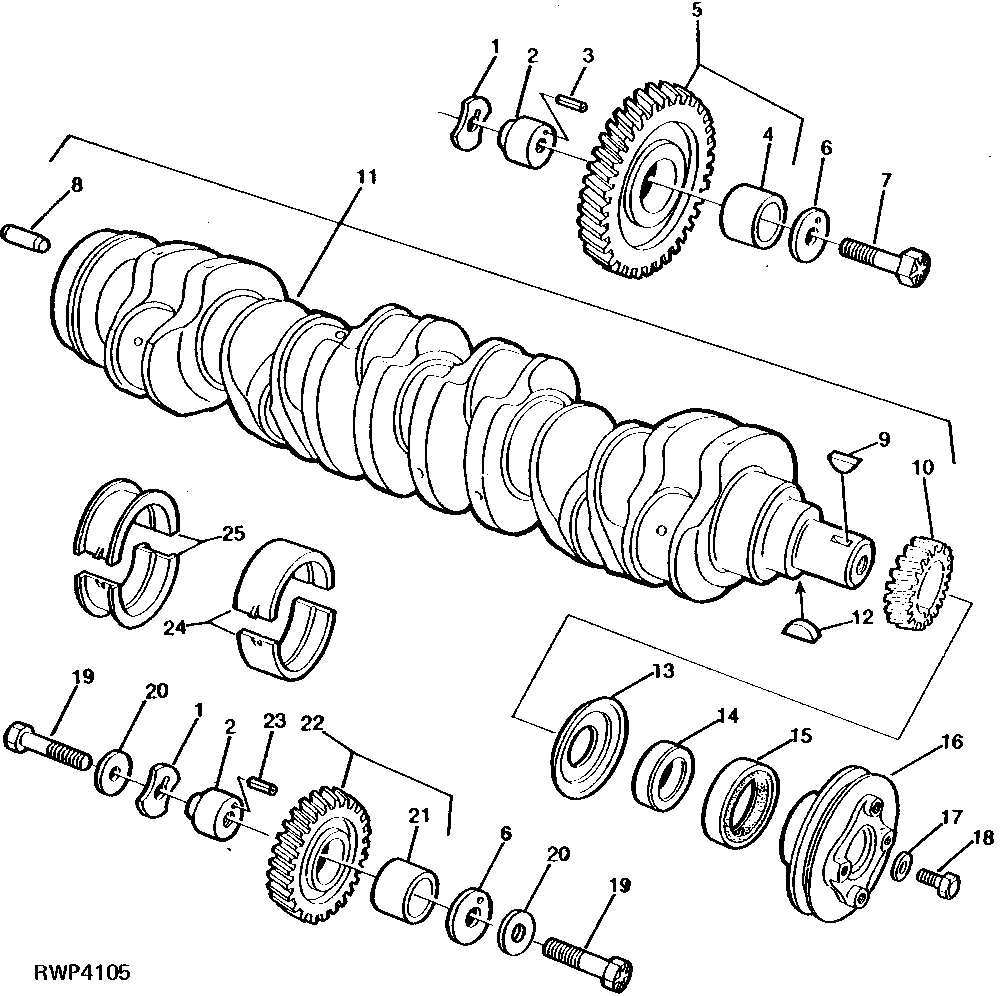

CRANKSHAFT, MAIN BEARINGS, AND TIMING GEARS [01B09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T26324	2	THRUST WASHER	INNER
2	R89825	2	PIN	(SUB FOR T26323) (SUB P42337, R89824 AND 19H3011)
2	T26323	1	SHAFT	(C) LOWER, (SUB R109863, R100105, 19H3011 AND 14H865)
2	T26323	1	SHAFT	(C) UPPER, (SUB R109863)
3	34H283	1	Spring Pin	3/16" X 1-1/8"
4	T20034	1	Bushing	-
5	AR91660	1	Gear	(SUB FOR AT18009)
6	T26326	2	THRUST WASHER	OUTER
7	T26327	1	Screw	-
8	T26565	1	Dowel Pin	-
8	R48685	1	Dowel Pin	-
9	26H72	1	Shaft Key	1/8" X 5/8"
10	T20094	1	Helical Gear	-
11	AT22562	1	CRANKSHAFT	(SUB RE48330 ON CD; RE45541 ON T)
12	26H27	1	Shaft Key	5/16" X 1-1/8"
13	T20046	1	Oil Slinger	-
14	T23270	1	BUSHING	(SUB H35244 AND R81989)
15	AR67942	1	Seal	-
16	R59313	1	PULLEY	(1-BELT GROOVE)
16	R66795	1	PULLEY	(2-BELT GROOVES)
17	T20217	1	Washer	-
18	19H1721	1	CAP SCREW	1/2" X 1-1/2"
19	T26325	2	SCREW	-
20	R42364	2	WASHER	(SUB R76126)
21	T26321	1	Bushing	-
22	AT24252	1	GEAR	-
23	34H286	1	Spring Pin	3/16" X 1-1/2"
24	AT21110	1	BEARING	(A) .025MM (.010") (2 HALVES)
24	AT21140	6	Bearing	STD PLAIN (2 HALVES)
24	AT21114	1	BEARING	(A) 0.76MM (.030") (2 HALVES)
24	AT21112	1	BEARING	(A) .050MM (.020") (2 HALVES)
24	AT21108	1	BEARING	(A) 0.05MM (.002") (2 HALVES)
25	AT21130	1	BEARING	(B) 0.05MM (.002") (2 HALVES)
25	AT21132	1	BEARING	(B) 0.25MM (.010") (2 HALVES)
25	AT21134	1	BEARING	(B) 0.50MM (.020") (2 HALVES)
25	AT21136	1	BEARING	(B) 0.76MM (.030") (2 HALVES)
25	AT21139	1	BEARING	STD REAR (2 HALVES)

CRANKSHAFT, MAIN BEARINGS, AND TIMING GEARS [01B09]
