TRANSMISSION CASE (COLLAR-SHIFT TRANSMISSION) FOR GP-TRACTORS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL38634	1	Dipstick	-
2	15H562	1	Pipe Plug	1"
3	19H1813	1	CAP SCREW	5/16" X 5/8"
4	L31806	1	Strap	-
5	T21101	1	Clamp	-
6	12M7056	1	Lock Washer	8 mm
7	14H785	1	Nut	5/16"
8	M1102T	3	PLUG	-
9	L62898	1	Valve Spool	(SUB FOR R39294)
10	T24999	1	Spring	ORDER R31698
10	R31698	1	SPRING	-
11	T22853	1	SLEEVE	-
12	F3171R	1	O-Ring	-
13	L32704	1	Threaded Nipple	1-1/16"
14	R26448	2	O-Ring	-
15	R27218	2	Fitting Plug	-
16	34H247	2	Spring Pin	1/8" X 3/4"
17	R39112	1	Fitting	3/4"
18	R26375	1	O-Ring	-
19	R53169	1	Screen	-
20	L41547	1	O-Ring	-
21	L41534	1	Pipe Plug	1-1/2"
22	T21937	1	Plug	-
23	15H584	1	Pipe Plug	1/2"
24	R27490	1	O-Ring	-
25	T21776	1	SCREW	-
26	14H971	1	NUT	1/2"
27	T18891	1	Plug	-
28	AL39878	1	Pipe Plug	15/16"
29	19H2510	6	Cap Screw	1/2" X 1-5/8"
30	T20168	8	Washer	-
31	R27474	2	Drain Plug	7/8", (FOR AL66797)
31	L41295	2	Drain Plug	-
31	R51895	2	Fitting	1", ORDER L41295
32	A4827R	1	Washer	-
32	R26906	2	O-Ring	(FOR AL66797)
33	19H2735	2	Cap Screw	1/2" X 2"
34	L62644	1	Cover	(SUB FOR T22854, L56771)
35	T17882	1	WASHER	-
36	19H2021	2	Cap Screw	3/8" X 5/8"
37	19H1721	3	CAP SCREW	(WITHOUT PTO) 1/2" X 1-1/2"
38	12H301	3	Lock Washer	(WITHOUT PTO) 1/2"
39	T30719	1	COVER	(WITHOUT PTO)
40	T22080	1	GASKET	(WITHOUT PTO)

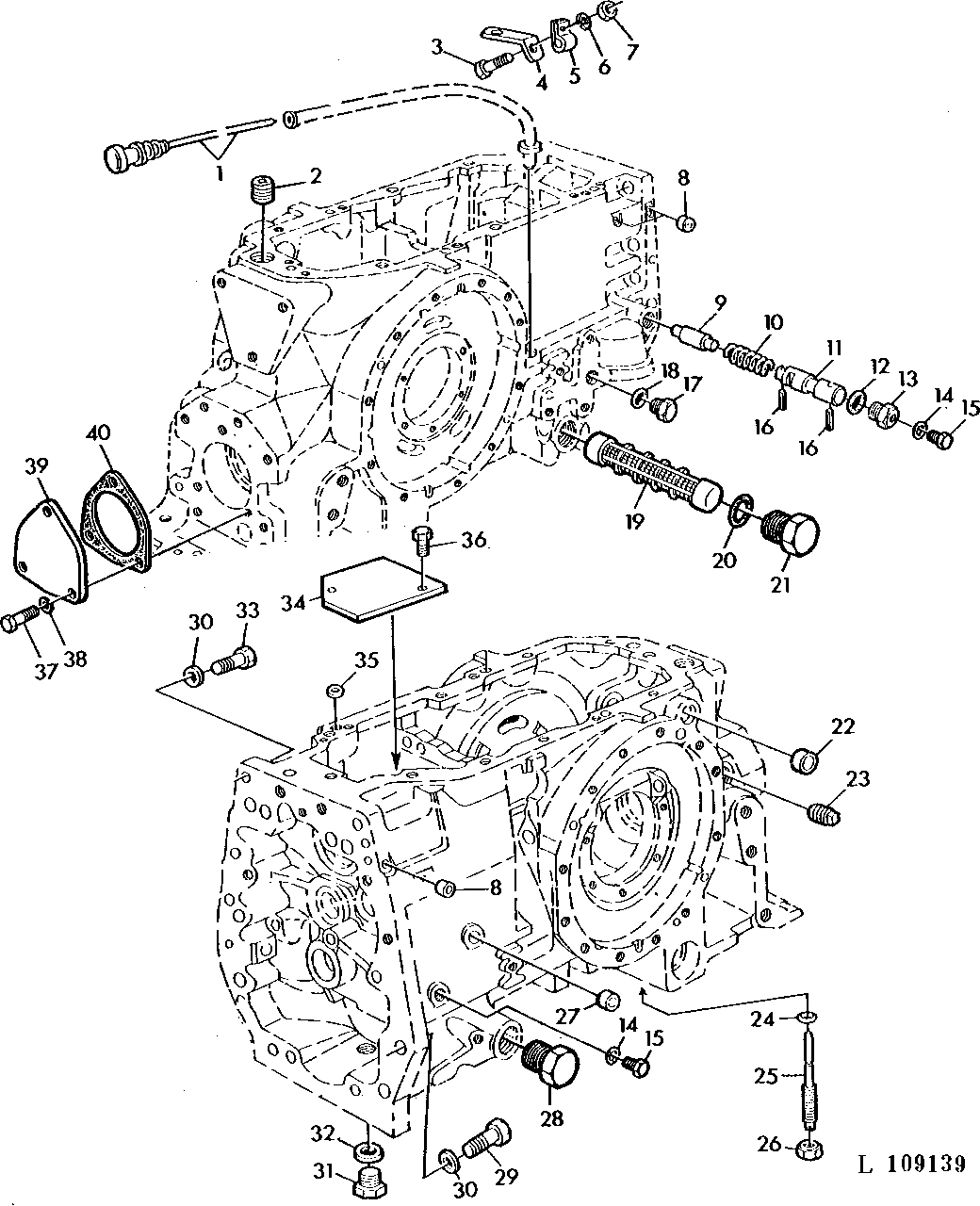

TRANSMISSION CASE (COLLAR-SHIFT TRANSMISSION) FOR GP-TRACTORS

Нет текстового описания
