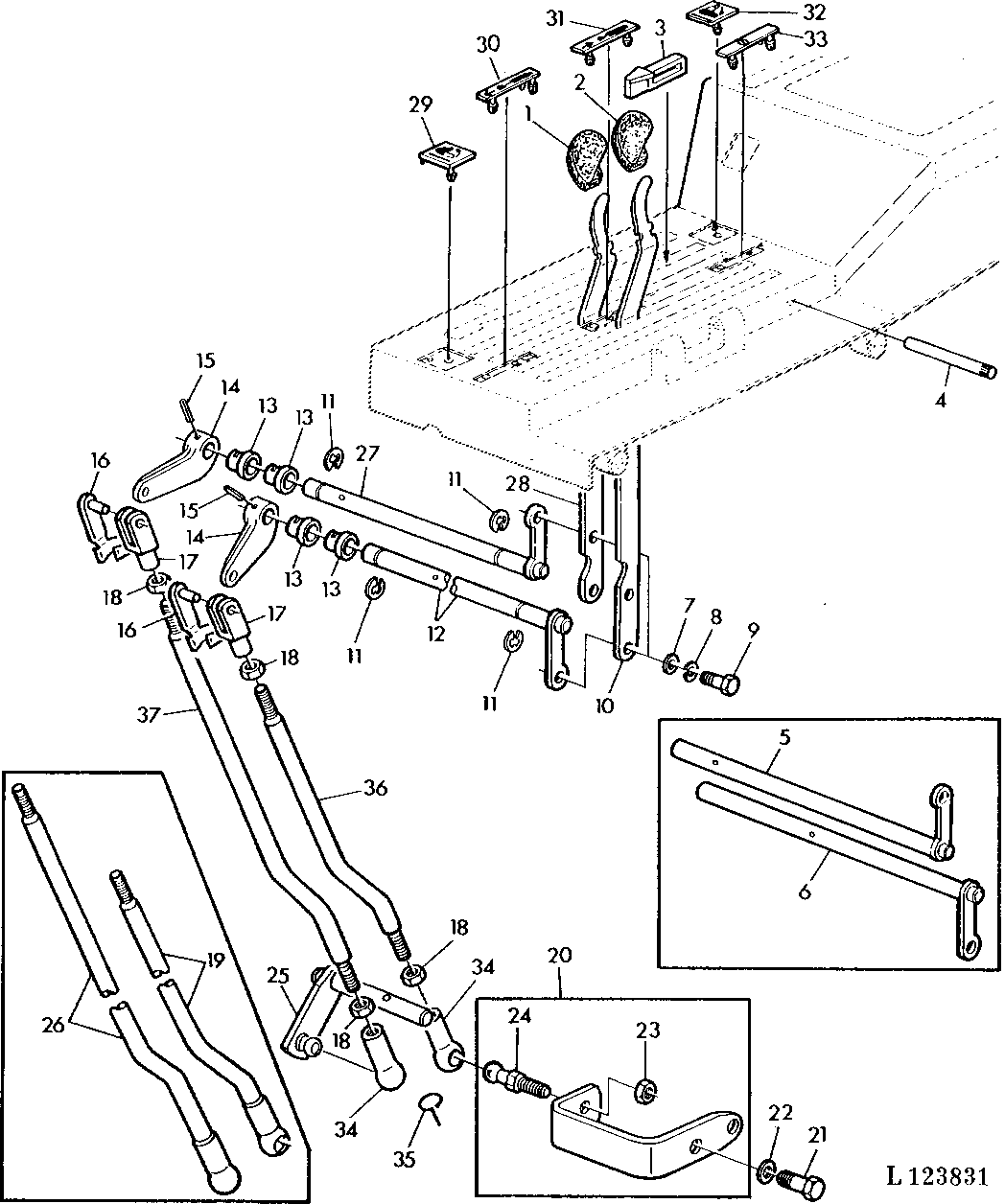

SELECTIVE CONTROL VALVE LINKAGE (SPOOL TYPE) WITH SGB

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L56932	1	Grip	(SUB FOR R52690 APPL)
2	L56933	1	Grip	(FOR TWO SELECTIVE CONTROL VALVES) (SUB FOR R52691 APPL)
3	R56479	1	Stop	-
4	L38168	1	Pin Fastener	-
5	AR87968	1	Shaft	(ORDER AL38249, (2) F2863R)
6	AR87970	1	Shaft	(FOR TWO SELECTIVE CONTROL VALVES) (ORDER AL38250, (2) F2863R)
7	24M7055	1	Washer	8.400 X 16 X 1.600 mm
8	12M7056	1	Lock Washer	8 mm
9	19H1900	1	Cap Screw	5/16" X 3/4"
10	L38223	1	Lever	(FOR TWO SELECTIVE CONTROL VALVES)
11	40M7039	1	Snap Ring	(SUB FOR F2863R)
12	AL38250	1	Shaft	-
13	R42093	1	Grommet	-
14	R50012	1	Lever	-
15	L61307	1	Spring Pin	(SUB FOR 34H313 APPL)
16	45M7065	1	Spring Locking Pin	-
17	54M4420	1	Yoke	-
18	14M7151	1	Nut	M8
19	AL36465	1	Rod	(FOR TWO SELECTIVE CONTROL VALVES) (ORDER L38556, 56M7003, 56M7004, 14M7151)
20	AL35965	1	Lever	-
21	19H1895	1	CAP SCREW	1/2" X 3/4"
22	24H1625	1	Washer	17/32" X 1" X 0.120"
23	14M7327	1	Lock Nut	M8
24	55M7011	1	Ball Stud	-
25	AR100517	1	Arm	-
26	AL36463	1	Rod	(ORDER L38555, 56M7003, 56M7004, 14M7151)
27	AL38249	1	Shaft	-
28	L38222	1	Lever	-
29	L42073	1	Sign	-
30	L42072	1	Sign	-
31	L55026	1	Sign	(SUB FOR L40539)
32	L42074	1	Sign	-
33	L55028	1	Sign	(SUB FOR L40541)
34	56M7003	1	Ball Joint Socket	(ORDER W/ 56M7004)
35	56M7004	1	Ball Joint Retainer	-
36	L38556	1	Lever	(FOR TWO SELECTIVE CONTROL VALVES)
37	L38555	1	Lever	-

SELECTIVE CONTROL VALVE LINKAGE (SPOOL TYPE) WITH SGB
