SELECTIVE CONTROL VALVE LINKAGE (SPOOL TYPE) (FOR GP-TRACTORS WITH SGB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L56932	1	Grip	(SUB FOR R52690 APPL)
2	L56933	1	Grip	(USE WITH DUAL SELECT. CONTROL VALVES) (SUB FOR R52691 APPL)
3	L57635	1	Grip	(USE WITH TRIPLE SELECT. CONTROL VALVES) (SUB FOR R52692 APPL)
4	L36288	1	Stop	-
5	34M7029	2	Spring Pin	4 X 30 mm
6	L38224	1	Lever	(USE WITH TRIPLE SELECT. CONTROL VALVES)
7	24M7055	3	Washer	8.400 X 16 X 1.600 mm
8	12M7056	3	Lock Washer	8 mm
9	19H1900	3	Cap Screw	5/16" X 3/4"
10	L38223	1	Lever	(USE WITH DUAL SELECT. CONTROL VALVES)
11	40M7039	6	Snap Ring	-
12	AL38250	1	Shaft	(USE WITH DUAL SELECT. CONTROL VALVES)
13	AL38251	1	Shaft	(USE WITH TRIPLE SELECT. CONTROL VALVES)
14	R42093	6	Grommet	-
15	R50012	3	Lever	-
16	L61307	3	Spring Pin	(SUB FOR 34H313 APPL)
17	45M7065	3	Spring Locking Pin	-
18	54M4420	3	Yoke	-
19	14M7151	3	Nut	M8
20	AL36401	1	Rod	(USE WITH TRIPLE SELECT. CONTROL VALVES) (ORDER L38528, 56M7003, 56M7004, 14M7151)
21	AL36399	1	Rod	(USE WITH DUAL SELECT. CONTROL VALVES) (ORDER L38527, 56M7003, 56M7004, 14M7151)
22	AL36397	1	Rod	(ORDER L38526, 56M7003, 56M7004, 14M7151)
23	AL38249	1	Shaft	-
24	L38222	1	Lever	-
25	L42073	1	Sign	-
26	L42072	1	Sign	-
27	L55027	1	Sign	-
28	L42074	1	Sign	-
29	L55026	1	Sign	-
30	56M7003	3	Ball Joint Socket	(ORDER W/ 56M7004)
31	56M7004	3	Ball Joint Retainer	-
32	L38528	1	Lever	-
33	L38527	1	Lever	-
34	L38526	1	Lever	-

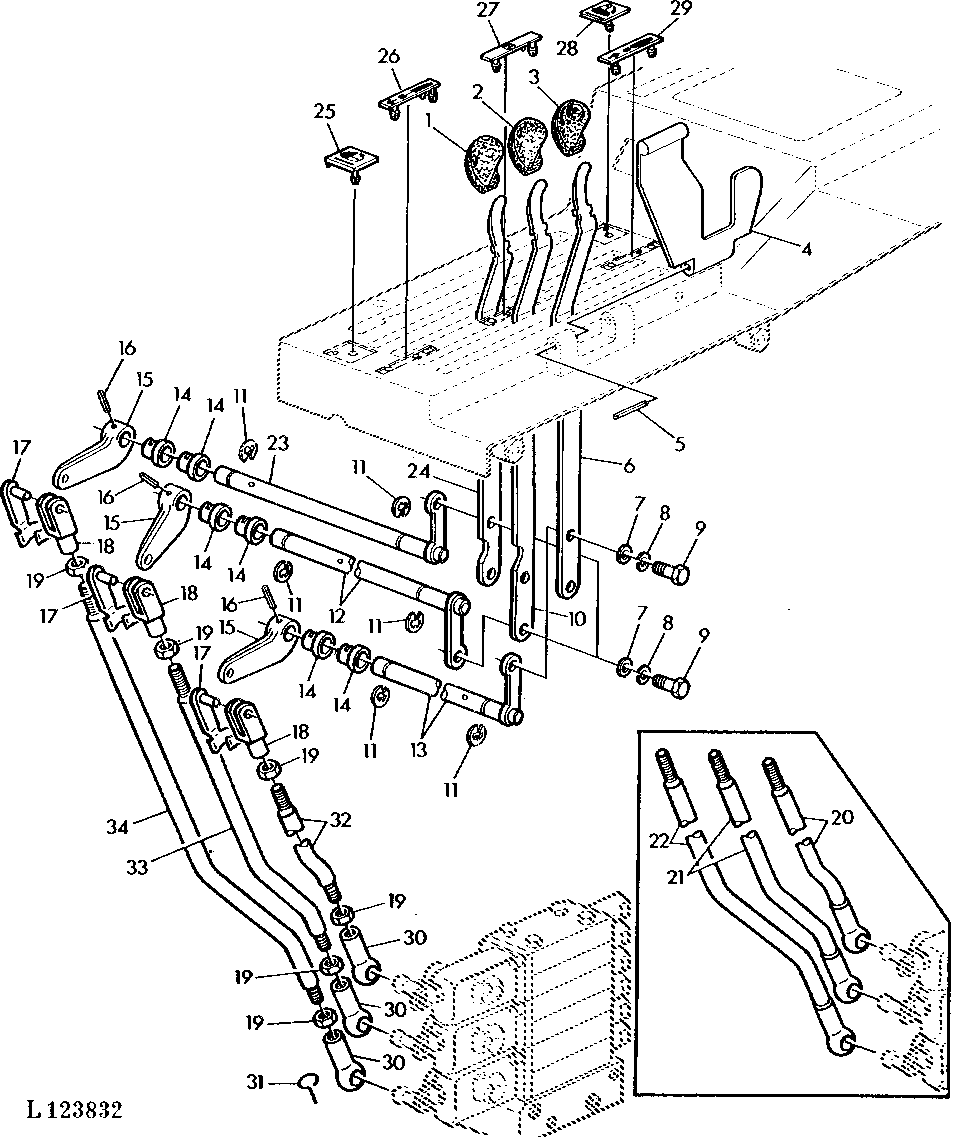

SELECTIVE CONTROL VALVE LINKAGE (SPOOL TYPE) (FOR GP-TRACTORS WITH SGB)
