OIL LINES FOR SELECTIVE CONTROL VALVE (POPPET TYPE)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26906	6	O-Ring	-
2	AL31989	1	Elbow Fitting	-
3	L39693	2	Adapter Fitting	-
4	51M4238	4	Sealing Ring	-
5	AL38205	1	OIL LINE	-
6	L63537	2	Hollow Screw	(SUB FOR T32204)
7	AL37936	1	Oil Line	-
8	AL64588	2	Clamp	(SUB FOR AL55852, AR21837)
9	-	1	Part 9	LGTH= 62MM (2.44"), (MF L65830)
10	AL37931	1	Oil Line	-
11	AL38122	1	BRACKET	-
12	24M7055	2	Washer	8.400 X 16 X 1.600 mm
13	19M7164	2	Cap Screw	M8 X 50
14	AA23586	1	VALVE	(ORDER AN193413, R27474, R26906)
15	19H2228	2	Cap Screw	3/8" X 4"
16	AL55385	1	Elbow Fitting	(SUB FOR AT35120)
17	AL38125	1	TEE FITTING	-
18	AL38123	1	OIL LINE	-
19	R27270	2	Fitting	-
20	AT34811	1	CHECK VALVE	-
21	AL38124	1	OIL LINE	-
22	R36927	1	Fitting	-
23	AL38025	1	Tee Fitting	-
24	U12547	1	O-Ring	(SUB FOR F3171R APPL)
25	R26375	1	O-Ring	-
26	R27237	1	Fitting	-
27	AL35677	1	Hydraulic Hose	-
28	R26448	1	O-Ring	-
29	R37479	1	Cover	-
30	AR26697	1	Sealing Washer	-
31	R26149	1	PACKING	-
..	L65830	1	Hose	LGTH= 6000MM (236.22"), (SUB FOR UN4614)

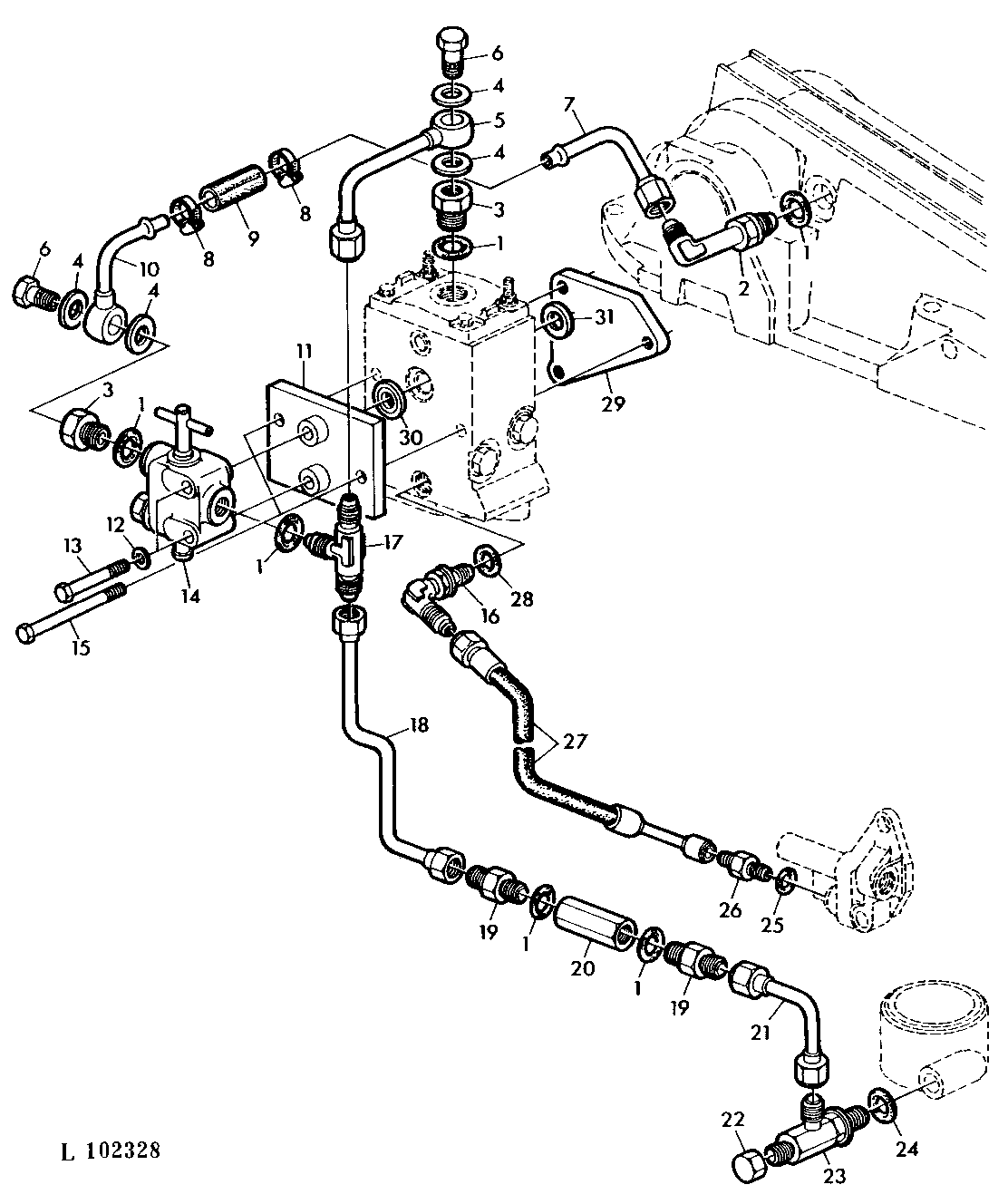

OIL LINES FOR SELECTIVE CONTROL VALVE (POPPET TYPE)
