Открытый узел

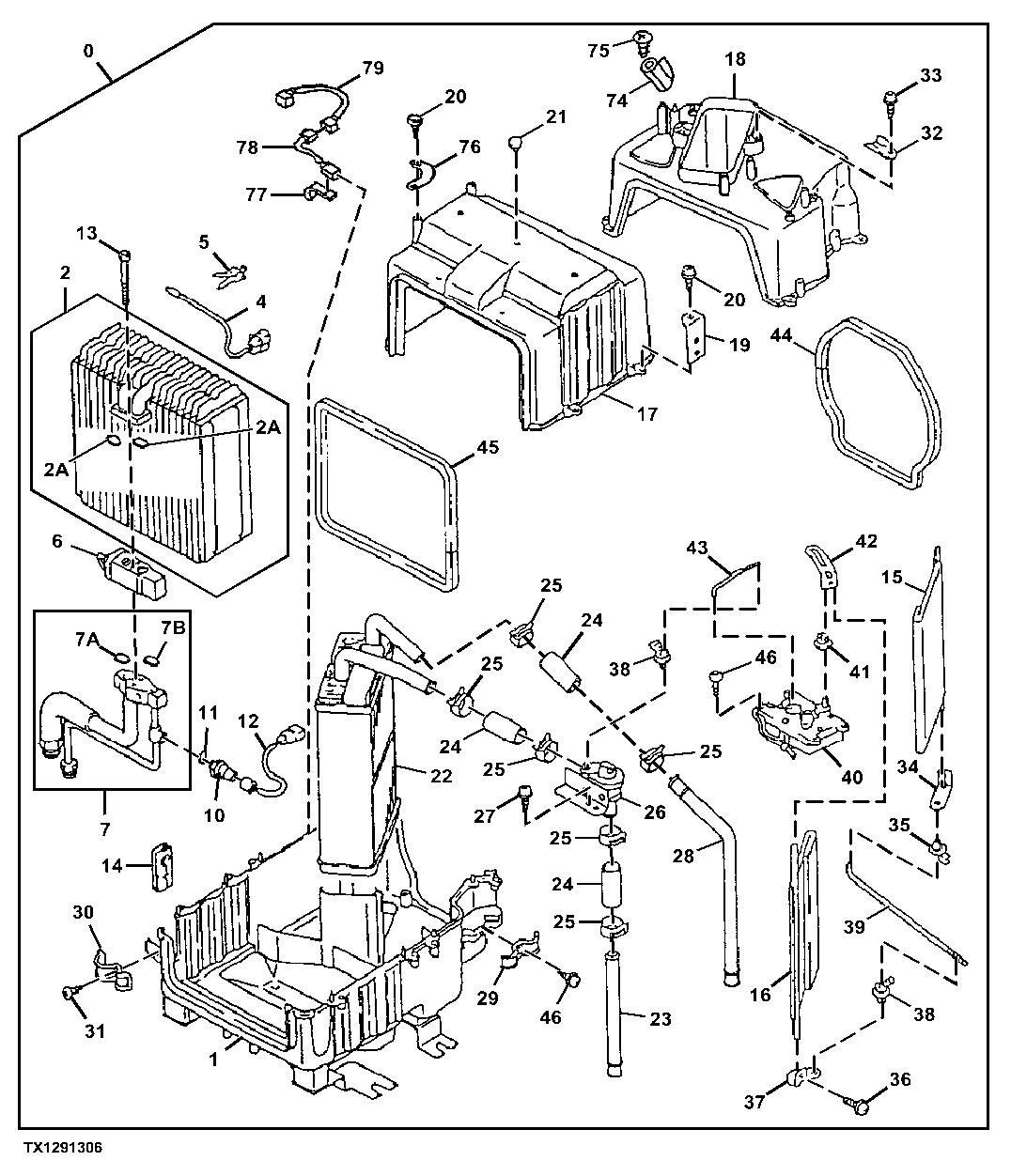

Air Conditioner (A/C) Components (070378 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4405811	1	Air Conditioner	SUB FOR AT186247
1	-	1	Part 2	NSEP
2	4382812	1	Evaporator	SUB FOR AT180994
4	4382813	1	Thermostat	SUB FOR AT180996
5	4363957	1	Clamp	SUB FOR AT180997
6	4382814	1	Flow Control Hyd. Valve	SUB FOR AT180998
7	4382815	1	Tube	SUB FOR AT180999
10	AT336248	1	Pressure Switch	SUB FOR 4382816, 4469059, AND AT181007
10	-	1	Part 11	AT322233 NSEP
11	4363718	1	O-Ring	SUB FOR AT181003
12	4382817	1	Wiring Harness	Air Conditioner (A/C), SUB FOR AT181004
13	19M8627	2	Screw	M6 X 20
14	4382818	1	Grommet	SUB FOR AT181005
15	4382819	1	Door	SUB FOR AT181006
16	4382820	1	Door	SUB FOR AT181007
17	4403041	1	Housing	SUB FOR AT181008
18	4382822	1	Housing	SUB FOR AT181009
19	4382823	1	Angle	SUB FOR AT181010
20	4382883	12	Screw	SUB FOR AT181011
21	4363960	3	Clamp	SUB FOR AT181012
22	4382824	1	Radiator	SUB FOR AT181013
23	4382825	1	Line	SUB FOR AT181014
24	-	3	Part 26	MAKE FROM TY22328, CTL 60 mm (2.4 in), SUB FOR AT181015
25	4382827	6	Hose Clamp	SUB FOR AT181016
26	4382828	1	Flow Control Hyd. Valve	SUB FOR AT181017
27	4382829	2	Screw	SUB FOR AT181018
28	4382830	1	Line	SUB FOR AT181019
29	4363958	1	Clamp	SUB FOR AT181020
30	4382831	1	Clamp	SUB FOR AT181021
31	4382832	1	Screw	SUB FOR AT181022
32	4363950	1	Bracket	SUB FOR AT181023
33	4236448	1	Screw	SUB FOR AT181024
34	4363947	1	Lever	SUB FOR AT173809
35	4363956	2	Bushing	SUB FOR AT173819
36	J460308	3	Screw With Washer	SUB FOR AT181025
37	4363945	1	Lever	SUB FOR AT173807
38	4362310	2	Clamp	SUB FOR AT173818
39	4382833	1	Rod	SUB FOR AT181026
40	4382834	1	Electric Motor	Blower Motor, SUB FOR AT181027
41	4363955	1	Bushing	SUB FOR AT173817
42	4382835	1	Lever	SUB FOR AT181028
43	-	1	Part 45	4382836 NLA; SUB FOR AT181029
44	4382837	2	Isolator	SUB FOR AT181030
45	4382838	1	Isolator	SUB FOR AT181031
46	4382839	6	Screw	SUB FOR AT181032
74	4363950	1	Bracket	SUB FOR AT181023
75	4236448	1	Screw	SUB FOR AT181024
76	4429817	1	Bracket	SUB FOR AT187309
77	4429818	1	Clamp	SUB FOR AT187312
78	4429819	1	Thermostat	SUB FOR AT187310
79	4429820	1	Wiring Harness	-
2A	4297380	2	O-Ring	SUB FOR 4622346, 4674883, AT180995, 4350206, AND 4509180
7A	4297380	1	O-Ring	SUB FOR 4622346, 4674883, AT180995, 4350206, AND 4509180
7B	CH11568	1	Packing	SUB FOR AT181001 4350187, AND 4226445

Air Conditioner (A/C) Components (070378 - )

Нет текстового описания
