TRACK CHAIN AND SHOES (SN -702000)

TRACK CHAIN AND SHOES (SN -702000)

TRACK CHAIN AND SHOES (SN -702000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

TRACK CHAIN AND SHOES (SN -702000)

Нет текстового описания

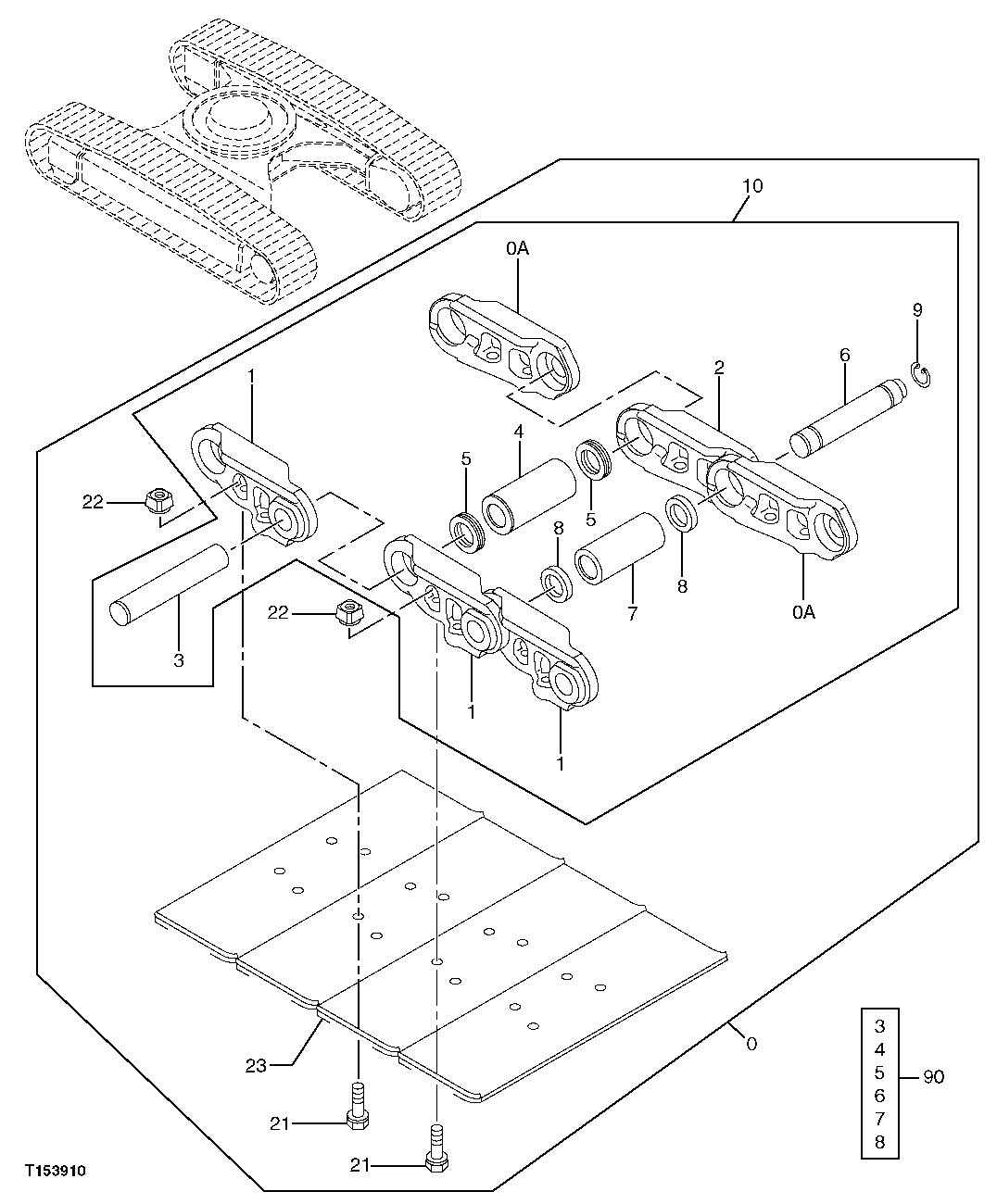

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9251025R	2	Track Assembly With Shoes	(SUB FOR <service-part qty="1">TH9167839</service-part>, <service-part qty="1">9167839</service-part> OR <service-part qty="1">AT314416</service-part >)(600G) (OTHER TRACK CHAIN ASSEMBLIES MAY BE ORDERED FROM SN 702001- )
1	-	48	Part 3	(SUB FOR <service-part qty="1">AT219499</service-part> OR <service-part qty="1">0002691</service-part>)( <service-part>0004077</service-part > NLA)
2	-	1	Part 4	(SUB FOR <service-part qty="1">AT250017</service-part> OR <service-part qty="1">4378890</service-part>)( <service-part>4456824</service-part > NLA)
3	FFSB112368	47	Pin Fastener	(K) (SUB FOR AT250018 OR 4378891)
4	T210808	47	Track Bushing	(K) (SUB FOR 3077928 ) (SUB FOR AT219620)
5	FFSB112367	94	Seal	(K) (SUB FOR 4378892 ) (SUB FOR AT250019)
6	3077929	1	Pin	(K) (SUB FOR T210811) (SUB FOR AT219621)
7	3077930	1	Bushing	(K) (SUB FOR T210809) (SUB FOR AT219622)
8	FFSB112370	2	Spacer	(K) (SUB FOR 4378893 ) (SUB FOR AT250020)
9	T210813	1	Snap Ring	(SUB FOR <service-part qty="1">TH111227</service-part>)(SUB <service-part >T238670</service-part> IF <service-part>4632763</service-part> MASTER LINK IS USED ON <service-part>AT314410</service-part> CHAIN)
10	9202852	1	Track Chain W/O Shoes	(SUB FOR AT250256 OR 9167840)
21	T210807	192	Track Bolt	(SUB FOR AT219650, 3081343 OR 3095745)
22	T210814	192	Nut	(SUB FOR AT219651 OR 3081344)
23	2040403	48	Open Center 3 Bar Shoe	(SUB FOR <service-part qty="1">AT219594</service-part>)(600G)
23	FFSB108844	48	Triple Bar Shoe	(SUB FOR <service-part qty="1">AT219606</service-part> OR <service-part qty="1">2042033</service-part>)(800G)
90	AT184109	1	Bushing Kit	(INCLUDES PARTS MARKED (K))
0A	-	47	Part 2	(SUB FOR <service-part qty="1">AT219498</service-part> OR <service-part qty="1">0002690</service-part>)( <service-part>0004076</service-part > NLA)
