RIGHT BOOM CYLINDER (UNITS BUILT BEFORE AUGUST 2004)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9245978J	1	Hydraulic Cylinder	( 9206321EX, 9206321Y NLA), (SUB 9245978J)
1	9206352	1	Hydraulic Cylinder Barrel	-
2	4645903	1	Hydraulic Cylinder Rod	(SUB FOR TH7037671)
4	TH1027956	1	Hydr. Cylinder Rod Guide	-
5	19M8630	8	Screw	M24 X 80
7	TH4439955	1	O-Ring	(K)
8	AT264294	1	Seal	(K) (SUB FOR AT217969, 4348201)
9	AT264408	1	Seal	(K) (SUB FOR TH111216)
10	4389326	1	Ring	(K) (SUB FOR OR AT201003 AND AT264409)
11	4369508	1	Ring	(SUB FOR AT217983)
13	AT217959	1	Wear Ring	-
15	4264982	1	Snap Ring	(SUB FOR AT131254)
18	TH3089936	1	Ring	-
20	AT264397	2	Ring	(SUB FOR TH110033)
21	AT264266	2	Wear Ring	(SUB FOR AT154718)
22	AT264297	1	Seal	(K) (SUB FOR AT218148)
23	3052363	1	Piston	(SUB FOR AT217937)
24	3063059	1	Nut	(SUB FOR AT217940)
25	4201805	1	Set Screw	(SUB FOR TH110037)
26	8083849	1	Oil Tube	(SUB FOR TH8083849)
27	8049356	1	Oil Tube	(SUB FOR AT218003)
29	19M8341	4	Screw	M12 X 45
30	19M8444	4	Screw	M12 X 60
31	AT264324	2	O-Ring	(SUB FOR TH100044)
33	3088623	1	Clamp	(SUB FOR TH3088623)
34	8079314	1	Clamp	(SUB FOR TH8079314)
35	19M7550	2	Cap Screw	M10 X 35
35	12M7066	2	Lock Washer	10 mm
37	4229234	1	Clamp	(SUB FOR TH111990)
38	19M8348	1	Cap Screw	M12 X 65
39	14M7275	1	Nut	M12
40	12H301	1	Lock Washer	1/2"
43	TH100074	1	Lubrication Fitting	-
44	T115963	1	Fitting Plug	-
45	-	1	Part 37	(SUB FOR TH4451668)( 4451668 NLA)
46	H77698	1	Tie Band	(SUB FOR TH4465818, 4465818, 4323613, 4121859)
60	4485615	1	Seal Kit	(SUB FOR TH9206355)
1A	4364501	2	Bushing	(SUB FOR AT217799)
2A	4364501	2	Bushing	(SUB FOR AT217799)

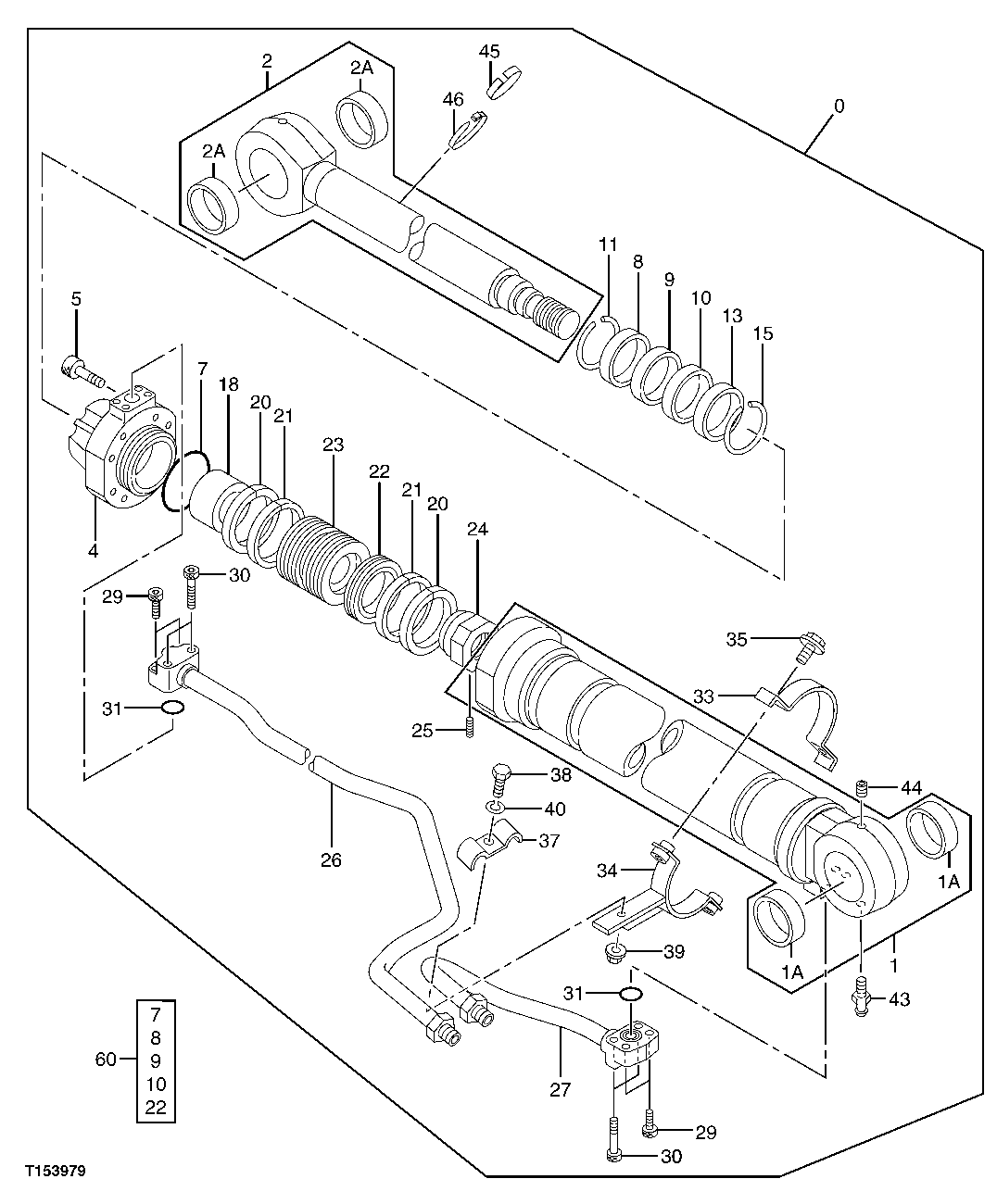

RIGHT BOOM CYLINDER (UNITS BUILT BEFORE AUGUST 2004)
