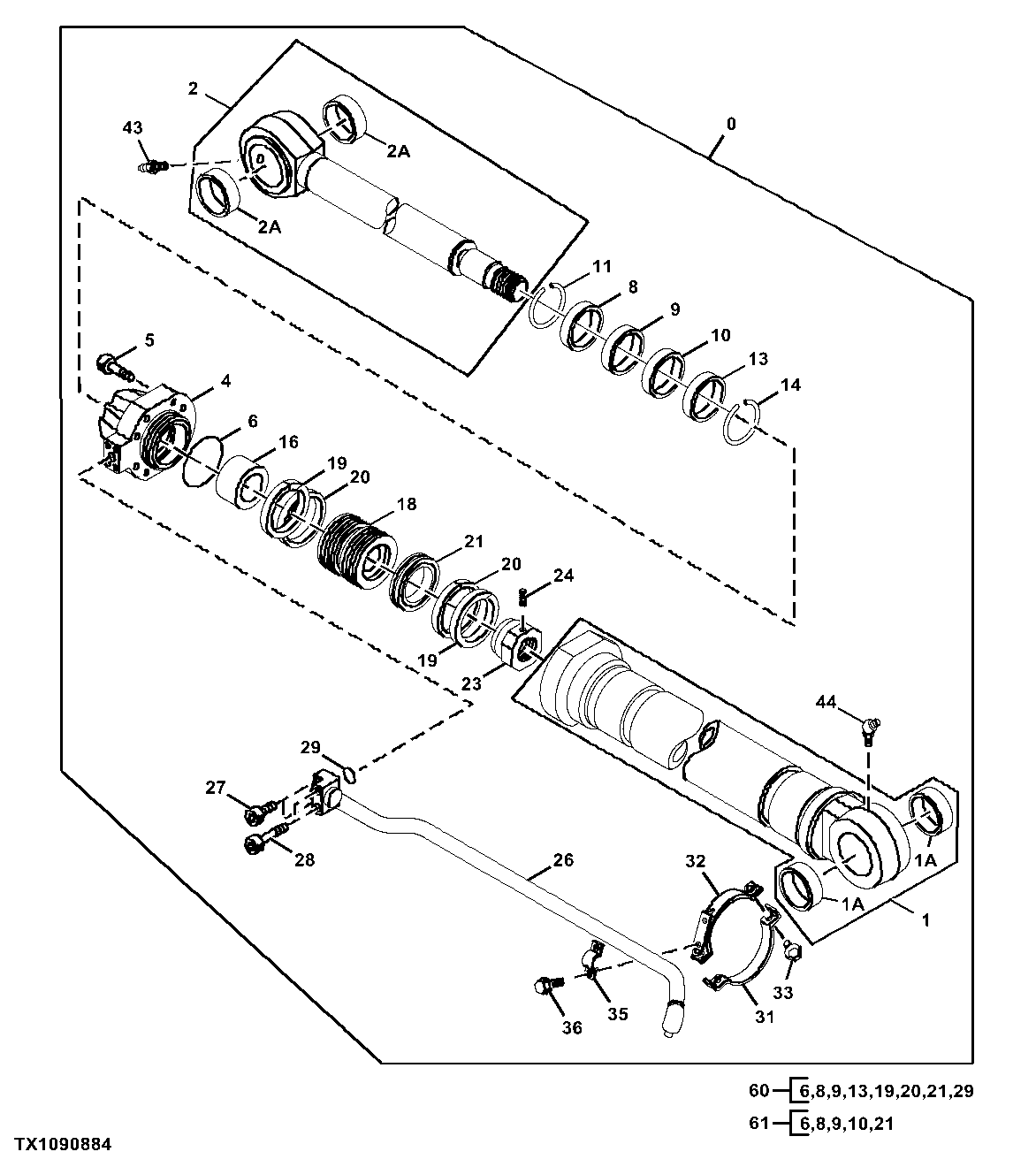

BUCKET CYLINDER (UNITS BUILT BEFORE AUGUST 2004)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	9206324J	1	Hydraulic Cylinder	(NLA) (SUB 9245981J)
1	9206354	1	Hydraulic Cylinder Barrel	-
2	4645905	1	Rod	(SUB FOR 7037679)
4	1015437	1	Hydr. Cylinder Rod Guide	(SUB FOR AT217934)
5	19M8630	8	Screw	M24 X 80
6	AT264268	1	O-Ring	(SUB FOR AT154722)
8	T204375	1	Seal	(SUB FOR AT181238 AND AT264293)
9	AT264395	1	Seal	(SUB FOR TH110018)
10	4412693	1	Seal	(SUB FOR 4253560)
11	4369507	1	Ring	-
13	AT264321	1	Bushing	(SUB FOR AT154779, AT264273)
14	4264983	1	Snap Ring	-
16	4264979	1	Spacer	(SUB FOR AT217957)
18	3052363	1	Piston	(SUB FOR AT217937)
19	AT264397	2	Ring	(SUB FOR TH110033)
20	AT264266	2	Wear Ring	(SUB FOR AT154718)
21	AT264297	1	Seal	(SUB FOR AT218148)
23	3063059	1	Nut	(SUB FOR AT217940)
24	4201805	1	Set Screw	(SUB FOR TH110037)
26	8049650	1	Oil Tube	(SUB FOR AT218005)
27	19M8341	2	Screw	M12 X 45
28	19M8444	2	Screw	M12 X 60
29	AT264324	1	O-Ring	(SUB FOR TH100044)
31	3088623	1	Clamp	(SUB FOR TH3088623)
32	8079292	1	Clamp	(SUB FOR TH8079292)
33	19M7550	2	Cap Screw	M10 X 35
33	12M7066	2	Lock Washer	10 mm
35	4174241	1	Clamp	(SUB FOR TH110059)
36	19M7402	2	Cap Screw	M10 X 25
36	12M7066	2	Lock Washer	10 mm
43	T116334	1	Lubrication Fitting	-
44	TH100074	1	Lubrication Fitting	-
60	AT264439	1	Seal Kit	NLA, ORDER 9180580
61	9180580	1	Seal Kit	Order Additional Seals Required as Separate Parts
1A	4332285	2	Bushing	(SUB FOR AT217750)
2A	4397791	2	Bushing	(SUB FOR TH4397791)

BUCKET CYLINDER (UNITS BUILT BEFORE AUGUST 2004)
