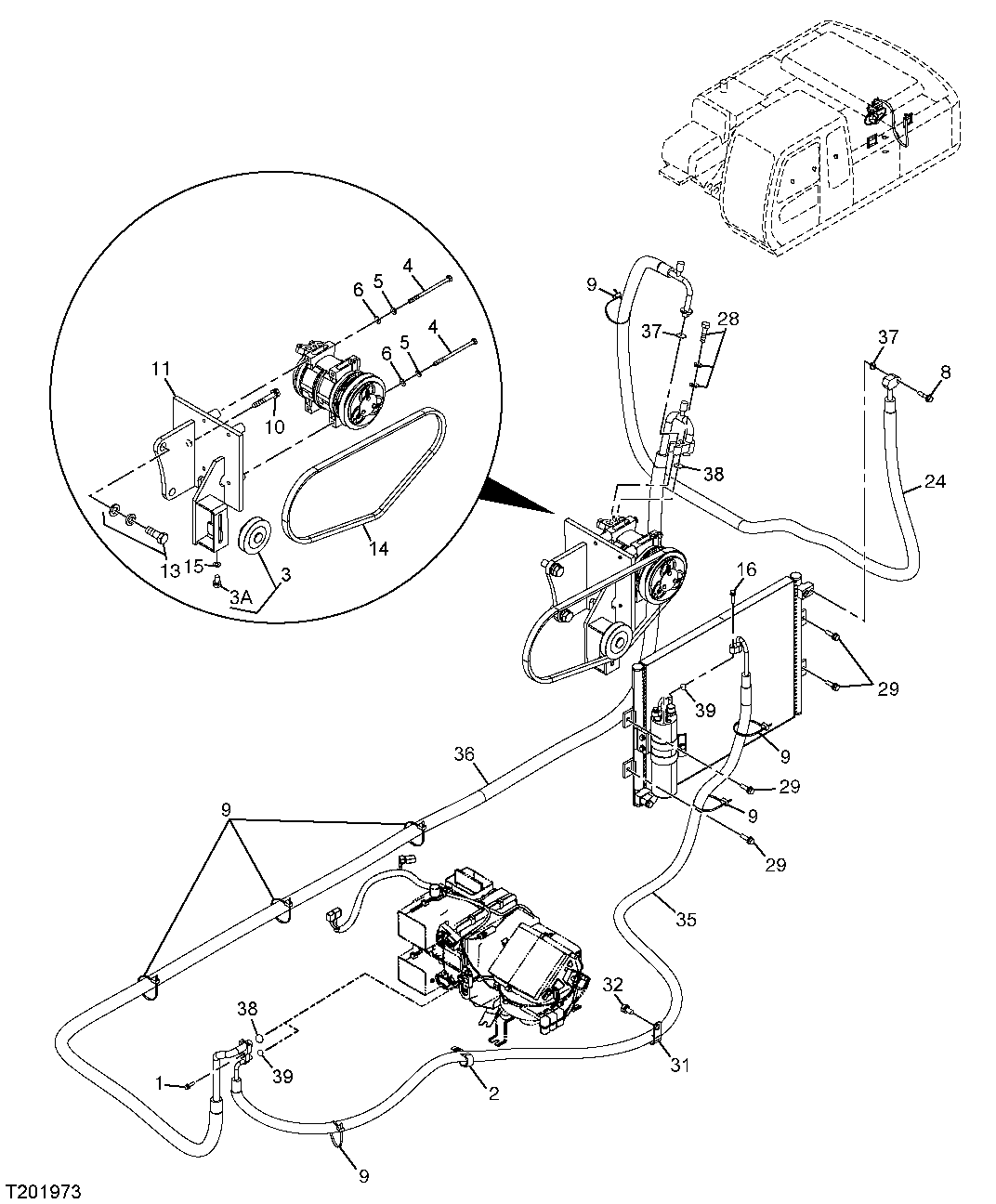

AIR CONDITIONER REFRIGERANT HOSES AND COMPRESSOR DRIVE BELT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7286	1	Cap Screw	M6 X 25
2	T24432	1	Clamp	-
3	4346770	1	Pulley	SUB FOR AT213915
4	19M8404	4	Cap Screw	M8 X 130
5	-	4	Part 6	12M7065 NLA
6	24M7055	4	Washer	8.400 X 16 X 1.600 mm
8	19M8008	1	Cap Screw	M8 X 35
8	24M7055	1	Washer	8.400 X 16 X 1.600 mm
8	-	1	Part 10	12M7065 NLA
9	H77698	8	Tie Band	-
10	THM111060	1	Bolt	-
10	12M7066	1	Lock Washer	10 mm
10	24M7028	1	Washer	10.500 X 20 X 2 mm
11	DH700012	1	Bracket	SUB FOR THDH700012
13	T116333	2	Bolt	SUB FOR THM111030
13	24M7028	2	Washer	10.500 X 20 X 2 mm
13	12M7066	2	Lock Washer	10 mm
14	DH400223	1	V-Belt	SUB FOR THDH400223
15	24M7055	1	Washer	8.400 X 16 X 1.600 mm
16	19M7874	1	Cap Screw	M6 X 30
16	12H302	1	Lock Washer	1/4"
16	24M7054	1	Washer	6.400 X 12 X 1.600 mm
24	4448284	1	Refrigerant Hose	Compressor To Condenser, SUB FOR DH400220
28	19M8260	1	Cap Screw	M10 X 40
28	24M7028	1	Washer	10.500 X 20 X 2 mm
28	12M7066	1	Lock Washer	10 mm
29	19M7139	4	Cap Screw	M8 X 20
29	-	4	Part 30	12M7065 NLA
29	24M7055	4	Washer	8.400 X 16 X 1.600 mm
31	T24432	1	Clamp	-
32	19M7938	1	Cap Screw	M10 X 20
32	12M7066	1	Lock Washer	10 mm
35	4458908	1	Refrigerant Hose	Condenser To Air Conditioner Unit
36	4450993	1	Refrigerant Hose	Air Conditioner Unit To Compressor
37	4421946	2	O-Ring	-
38	4421939	2	O-Ring	-
39	4422000	2	O-Ring	-
3A	4451204	1	Bolt	-
24A	4370247	1	Cap	Not Illustrated
36A	4370251	1	Cap	Not Illustrated

AIR CONDITIONER REFRIGERANT HOSES AND COMPRESSOR DRIVE BELT
