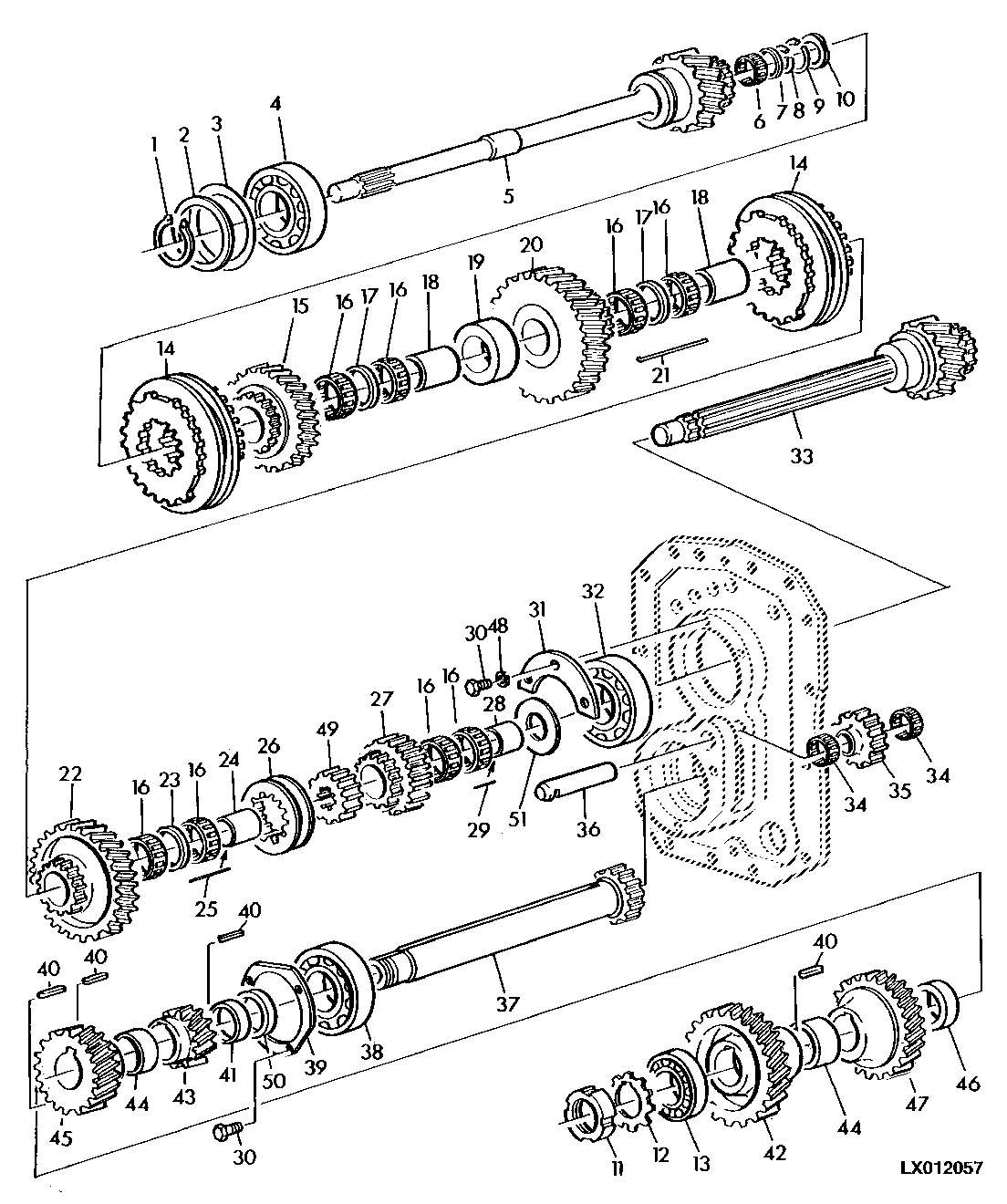

TRANSMISSION DRIVE SHAFTS (4 SPEED RANGE) [01F01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	PE970250	1	SNAP RING	(A)
2	PE78121008	1	RING	(A)
3	PE78121046	1	SHIM	(A) TK= 0.5MM
3	PE78121054	1	SHIM	(A) TK= 0.2MM
3	PE78121045	1	SHIM	(A) TK= 1MM
4	PE971043	1	BEARING	(A)
5	PE10121138	1	DRIVE SHAFT	(A)
6	PE971923	1	NEEDLE BEARING	(A)
7	PE78121041	1	WASHER	(A)
8	PE970293	1	SNAP RING	(A)
9	PE970246	1	SNAP RING	(A)
10	PE971802	1	SHIM	(A) TK= 0.2MM
10	PE971805	1	SHIM	(A) TK= 0.5MM
11	PE970710	1	NUT	(A)
12	PE78121043	1	WASHER	(A)
13	PE971042	1	ROLLER BEARING	(A)
14	PE13191901	2	CLUTCH	(A)
15	PE10121114	1	GEAR	(A)
16	PE971936	8	NEEDLE BEARING	(A)
17	PE10121025	2	SHIM	(A)
18	PE10121022	2	BUSHING	(A)
19	PE10121127	1	SHIM	(A)
20	PE10121115	1	GEAR	(A)
21	PE78121028	1	WIRE	(A)
22	PE10121116	1	GEAR	(A)
23	PE10121026	1	SHIM	(A)
24	PE10121023	1	BUSHING	(A)
25	PE78121031	1	WIRE	(A)
26	PE10121021	1	SHIFT COLLAR	(A) (B)
27	PE10121117	1	GEAR	(A)
28	PE10121024	1	BUSHING	(A)
29	PE78121032	1	WIRE	(A)
30	PE991210	6	CAP SCREW	(A) M8X16
31	PE78121033	1	RETAINER	(A)
32	PE971044	1	BEARING	(A)
33	PE10121113	1	SHAFT	(A)
34	PE971911	2	NEEDLE BEARING	(A) (B)
35	PE78121134	1	GEAR	(A) (B)
36	PE78121035	1	PIN	(A) (B)
37	PE78121102	1	SHAFT	(A)
38	PE971318	1	BEARING	(A)
39	PE78121112	1	SOLID SHIM	(A)
40	PE998194	4	SHAFT KEY	(A)
41	PE10121011	1	RING	(A)
42	PE10121003	1	GEAR	(A)
43	PE10121006	1	GEAR	(A)
44	PE10121007	2	SPACER	(A)
45	PE78121005	1	GEAR	(A)
46	PE10121008	1	SPACER	(A)
47	PE10121004	1	GEAR	(A)
48	PE994606	6	WASHER	(A)
49	PE10121118	1	HUB	(A)
50	PE971679	1	RING	(A)
51	PE10121027	1	SHIM	(A)

TRANSMISSION DRIVE SHAFTS (4 SPEED RANGE) [01F01]
