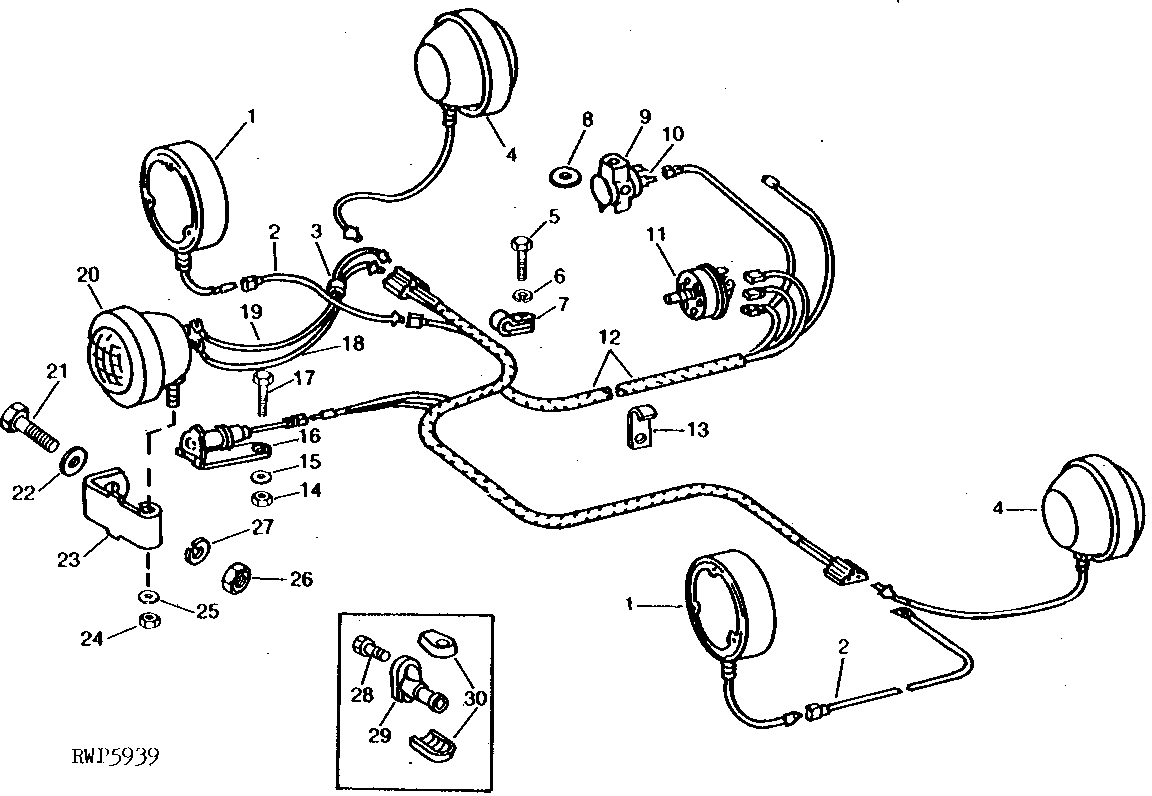

FRONT AND REAR LIGHT WIRING SYSTEM [01F17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR50580	2	LAMP	WARNING LIGHT
2	AR68459	2	WIRING LEAD	(SUB FOR AR51403)
3	R41439	1	Grommet	(B)
3	R26409	1	GROMMET	(A)
4	AT20106	2	FLOODLAMP	(A)
4	AT13381	2	HEADLIGHT	(B)
5	19H2021	2	Cap Screw	3/8" X 5/8"
6	12H304	2	Lock Washer	3/8"
7	T32231	2	Clamp	(SUB FOR R55618)
7	R45211	2	Clamp	(B)
8	24H1283	1	Washer	7/32" X 1/2" X 0.049"
9	T29417	1	BRACKET	FLASHER MOUNTING
10	AU41465	1	Flasher	(12-VOLT)
11	AR66478	1	SWITCH	LIGHT
12	AR64106	1	WIRING HARNESS	-
13	T13744	4	Clamp	-
14	14H1040	1	Nut	1/2"
15	12H301	1	Lock Washer	1/2"
16	AT20709	1	Socket Outlet	-
17	19H1815	1	Cap Screw	1/2" X 1-1/4"
18	AR51404	1	WIRING LEAD	(A)
18	AR62447	1	WIRING HARNESS	(B)
19	AR51405	1	WIRING LEAD	-
20	AT16288	1	FLOODLAMP	(SUB AR77326)
20	AR77326	1	FLOODLAMP	COMBINATION FLOOD AND TAIL
21	19H1792	1	Cap Screw	1/2" X 1"
22	24H1211	1	Washer	9/16" X 1-3/8" X 0.105"
23	R59160	1	BRACKET	-
24	14H1040	1	Nut	1/2"
25	12H301	1	Lock Washer	1/2"
26	14H1040	1	Nut	1/2"
27	12H301	1	Lock Washer	1/2"
28	T19179	2	CAP SCREW	(NLA)
29	R27460	2	ELEC. CONNECTOR ACCESSORY	-
30	T19178	1	BRACKET	(A)
30	R43662	1	BRACKET	(B)

FRONT AND REAR LIGHT WIRING SYSTEM [01F17]
