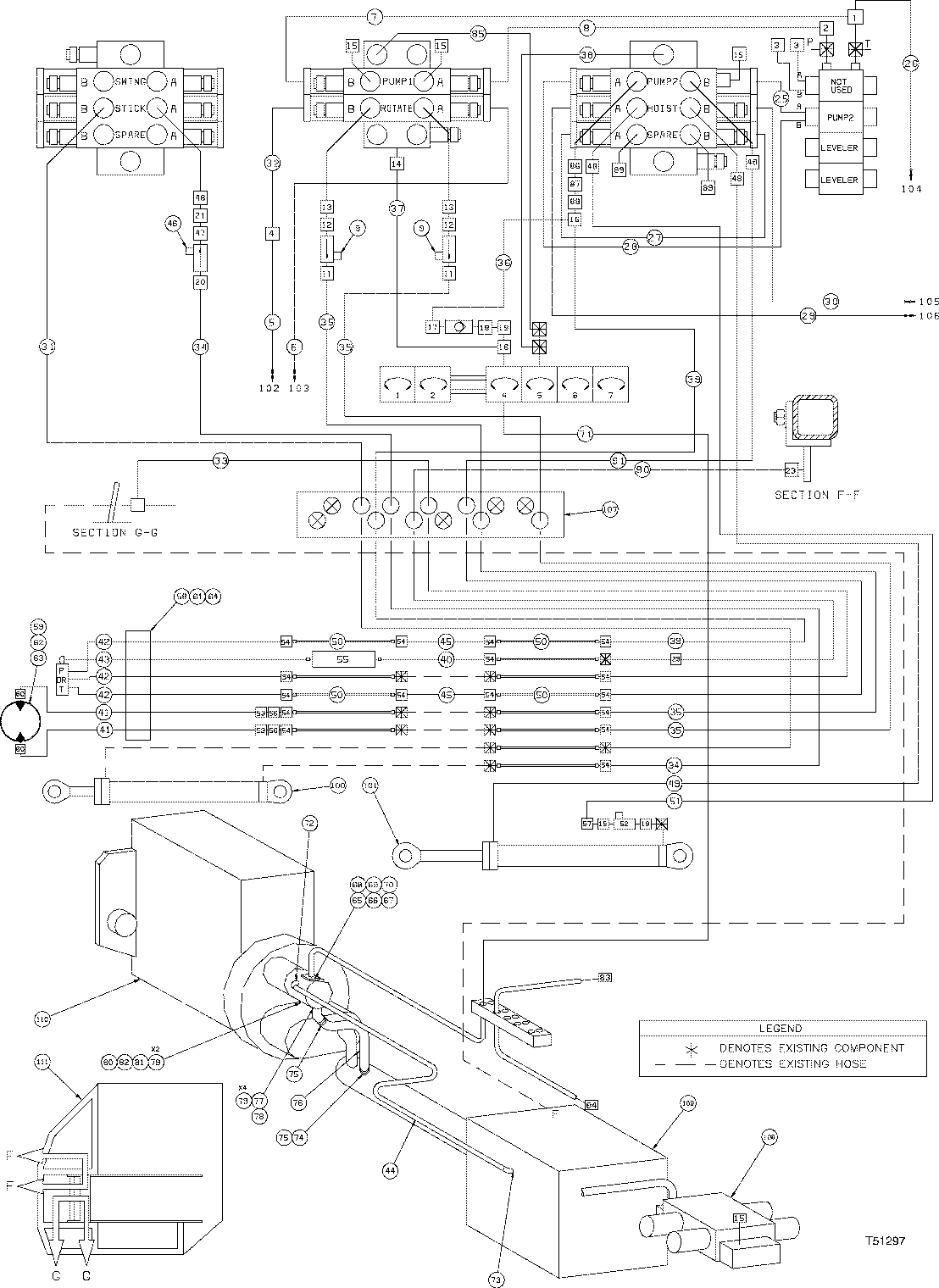

HYDRAULIC SYSTEM 762B FIXED BOOM ( CM9199 - CM9219) 2000-254/10 [2000-254/10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	811201000	1	TEE -	-
2	810640100	1	ELBOW-90 DEG. -	-
3	810626000	2	CAP -	-
4	810301700	1	ADAPTER -	-
5	811685500	1	HOSE-HYD*0.25X86 -	-
6	810761000	1	HOSE-HYD*0.25X84 -	-
7	811089000	1	HOSE-HYD*0.25X60 -	-
8	811685000	1	Hydraulic Hose	-
9	700780500	2	VALVE-FLOW CONTROL -	-
10	811856100	1	Check Valve	-
11	811456100	2	ADAPTER -	-
12	811848000	2	ADAPTER -	-
13	810490900	2	FITTING 1/2 MJIC 3/4 -	-
14	811441400	1	ADAPTER -	-
15	810381800	4	PLUG	-
16	811440900	2	TEE -	-
17	811440400	1	ELBOW-90 DEG. -	-
18	811819500	3	ADAPTER -	-
19	811460700	1	ELBOW-90 DEG. -	-
20	811441300	1	ADAPTER -	-
21	811093100	1	FITTING -	-
22	701284500	1	BRACKET -	-
23	701300900	1	CONNECTOR -	-
24	701281800	1	DECAL -	-
25	811685000	1	Hydraulic Hose	-
26	811652200	1	HOSE-HYD*0.25X116 -	-
27	811312300	1	HOSE-HYD*0.25X34 -	-
28	811312700	1	HOSE-HYD*0.25X58 -	-
29	810761000	1	HOSE-HYD*0.25X84 -	-
30	811685500	1	HOSE-HYD*0.25X86 -	-
31	811682300	1	HOSE-HYD*1.00X64C -	-
32	810621900	1	HOSE-HYD*0.25X24	-
33	811805500	1	HOSE-HYD*0.75X80C -	-
34	811848500	1	HOSE-HYD*1.00 X 57`` -	-
35	811848600	2	HOSE-HYD* .75 X 58`` -	-
36	811848700	1	HOSE-HYD* .75 X 17`` -	-
37	811848800	1	HOSE-HYD* .75 X 25`` -	-
38	811848900	1	HOSE-HYD*1.00X34 -	-
39	811278000	1	HOSE-HYD*1.00X62C -	-
40	811849500	1	HOSE-HYD*1.00X146C -	-
41	811854400	2	HOSE-HYD*0.50X114C -	-
42	811686700	3	HOSE-HYD*0.75X106C -	-
43	811849400	1	HOSE-HYD*1.00 X 116`` -	-
44	811323100	1	HOSE-HYD*0.50X65 -	-
45	811279100	2	Hydraulic Hose	-
46	700308800	1	VALVE CONTROL -	-
47	826096000	1	ADAPTOR -	-
48	811168000	4	FLANGE KIT -	-
49	811306700	1	HOSE -	-
50	701200300	4	TUBE -	-
51	811682500	1	HOSE -	-
52	700308800	1	VALVE CONTROL -	-
53	811494400	2	O-RING 2-014 -	-
54	811494600	16	O-RING -	-
55	701262700	1	ELECTRICAL BOX -	-
56	811649200	2	ADAPTER -	-
57	811819400	1	Elbow Fitting	-
58	811648600	40	COVER -	-
59	F013064	1	ROTATOR	-
60	811597600	2	ADAPTER -	-
61	700285400	25	PROTECTOR - HOSE	-
62	811463600	6	BOLT*M16X2.00-70 -	-
63	811268600	6	LOCKNUT*M16X2.0 -	-
64	811648500	24	COVER -	-
65	811064700	1	O-RING -	-
66	811168000	1	FLANGE KIT -	-
67	700490600	1	PLATE -	-
68	811818000	1	ELBOE-45 DEG. -	-
69	700577900	1	COUPLER-TEST - UP TO CB9313	-
70	810080600	4	BOLT*3/8-16UNCX2-1/4 -	-
71	811693500	1	HOSE-HYD*0.75X185C -	-
72	810913200	1	ELBOW-90 DEG.	-
73	810396500	1	ELBOW-90 DEG. -	-
74	811462100	1	Fitting	-
75	700580400	4	CLAMP -	-
76	811510700	1	HOSE - 15``LG - STATE LENGTH	-
77	810460100	1	O-RING -	-
78	700841900	1	TUBE -	-
79	810082200	6	BOLT*1/2-13UNCX1-1/4	-
80	700811800	1	PUMP -	-
81	810440000	1	O-RING -	-
82	810011600	2	WASHER*1/2	-
83	811441000	1	Plug	-
84	811438600	1	PLUG -	-
85	810349800	1	HOSE-HYD*1.00X30 -	-
86	810574200	1	O-RING	-
87	700312400	1	Adapter Fitting	-
88	810686800	4	BOLT*3/8-16UNCX1-1/2 -	-
89	811523000	2	Flange	-
90	811681200	1	HOSE-HYD*1.00X52C -	-
91	811682300	1	HOSE-HYD*1.00X64C -	-
100	-------	1	O-RING	-
101	-------	1	O-RING	-
102	-------	1	O-RING	-
103	-------	1	O-RING	-
104	-------	1	O-RING	-
105	-------	1	O-RING	-
106	-------	1	O-RING	-
107	-------	1	O-RING	-
108	-------	1	O-RING	-
109	-------	1	O-RING	-
110	-------	1	O-RING	-
111	-------	1	O-RING	-
