Открытый узел

Coulter Knife

Coulter Knife

Coulter Knife

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

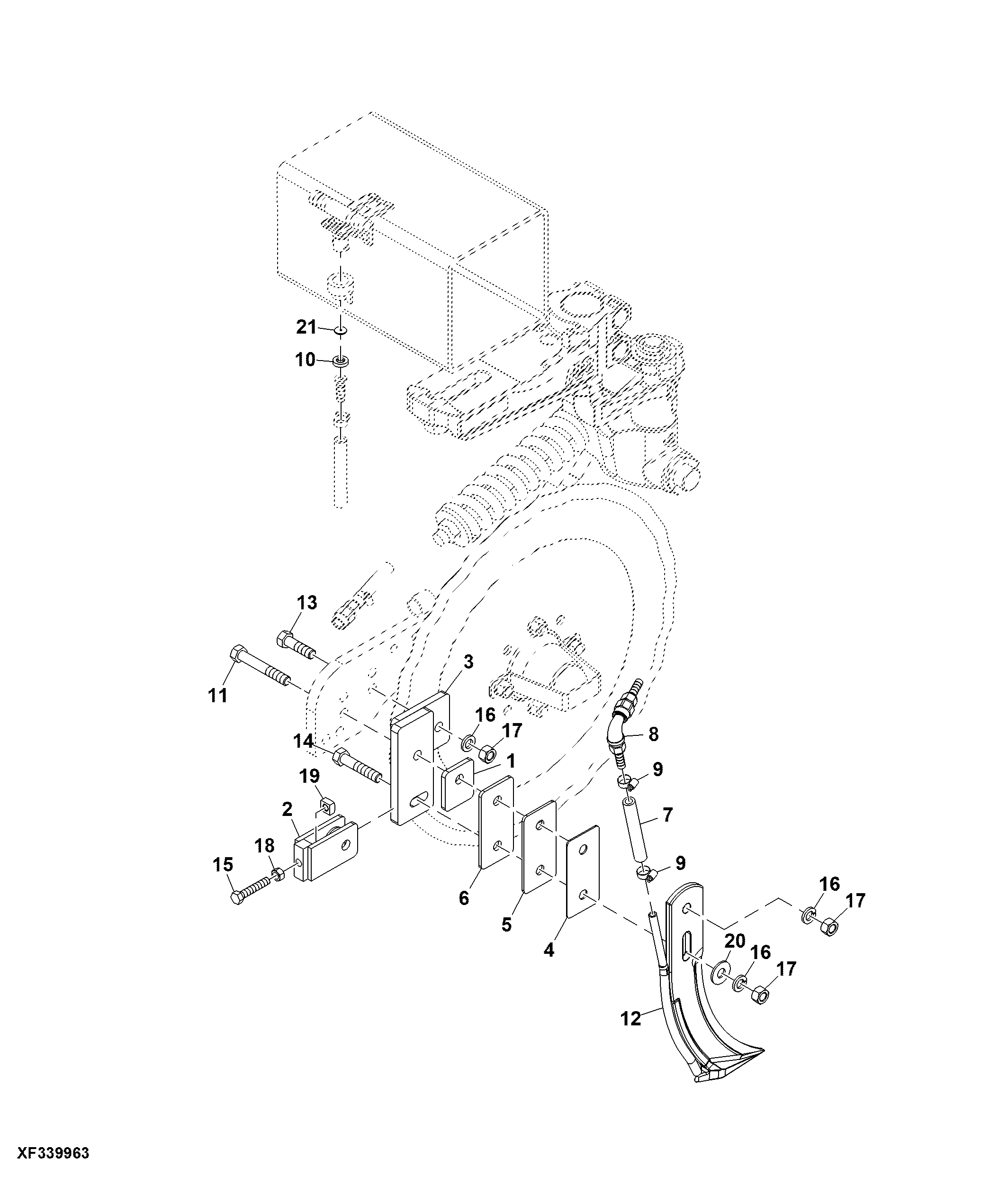

Coulter Knife

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	5FT17909	1	Spacer	-
2	5FT17910	1	Mounting Parts	-
3	5FT17915	1	Mounting Parts	-
4	5FT17920	1	Shim	-
5	5FT17921	1	Shim	-
6	5FT17922	1	Shim	-
7	5FT510020	1	Hose	-
8	5FT90SACLYKN	1	Valve	-
9	5FT540032	2	Hose Clamp	5/16"
10	5FT590029	1	Sealing Washer	-
11	5FT596640M	1	Bolt	1/2 X 3.25"
12	5FT750003	1	Colter Knife	-
13	5FT596639M	1	Bolt	1/2 X 1.75"
14	5FT596155M	1	Bolt	1/2 X 2.5"
15	5FT596660M	1	Bolt	3/8 X 2"
16	5FT596251M	3	Lock Washer	1/2"
17	5FT296215M	3	Nut	1/2"
18	5FT596213M	1	Nut	3/8"
19	5FT596762M	1	Nut	3/8"
20	5FT596260M	1	Washer	1/2"
21	5FTCP491693	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP4916177	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP4916151	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP4916144	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP4916132	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP4916125	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP4916115	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP4916107	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP4916103	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP491663	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP491691	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP491689	1	Disk	Orifice , Refer to OM for Orifice Selection Guide
21	5FTCP491680	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP491678	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP491677	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP491675	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP491672	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
21	5FTCP491665	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
