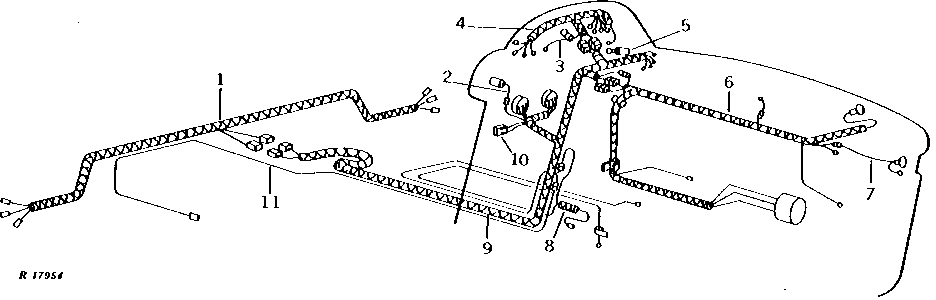

WIRING HARNESS (SERIAL NO. 022001- ) [01G05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34045	2	COVER	MAIN LIGHTING HARNESS TO REAR AXLE HOUSING
1	19H2020	2	Cap Screw	5/16" X 1/2"
1	12H303	2	Lock Washer	5/16"
1	AR48937	1	WIRING HARNESS	-
2	-	1	Part 5	229MM (9") CIGAR LIGHTER, (MAKE FROM R66319, R32018, AR65005 AND R32027)
3	AR50838	1	WIRING HARNESS	SPEED-HOUR METER LAMP
4	AR43986	1	WIRING HARNESS	(SYNCRO-RANGE) INSTRUMENT PANEL
4	AR43987	1	WIRING HARNESS	(POWER SHIFT) INSTRUMENT PANEL
5	AR46730	1	WIRING HARNESS	HORN SWITCH
6	R41439	5	Grommet	-
6	R45211	2	Clamp	-
6	R44302	1	Tie Band	-
6	AR38925	1	WIRING HARNESS	(DIESEL) ALTERNATOR TO MAIN HARNESS
6	AR38924	1	WIRING HARNESS	(GASOLINE) ALTERNATOR TO MAIN HARNESS
7	AR73580	1	WIRING HARNESS	HORN, (SUB FOR AR49038)
8	AR52467	1	WIRING HARNESS	(POWER SHIFT) CLUTCH OIL FILTER AND TRANSMISSION OIL SWITCH TO MAIN HARNESS
9	AR48936	1	WIRING HARNESS	MAIN
9	R44302	1	Tie Band	-
9	R41439	4	Grommet	-
9	R45211	1	Clamp	-
10	AR48594	1	Flasher	WARNING LAMP, (SUB FOR AR38453)
11	AR50829	1	WIRING HARNESS	START-SAFETY SWITCH TO MAIN HARNESS
..	AR47547	1	WIRING LEAD	FUSEHOLDER
..	AR47548	1	Fuse	-
..	R48825	1	LABEL	WIRING INSTRUCTION

WIRING HARNESS (SERIAL NO. 022001- ) [01G05]
