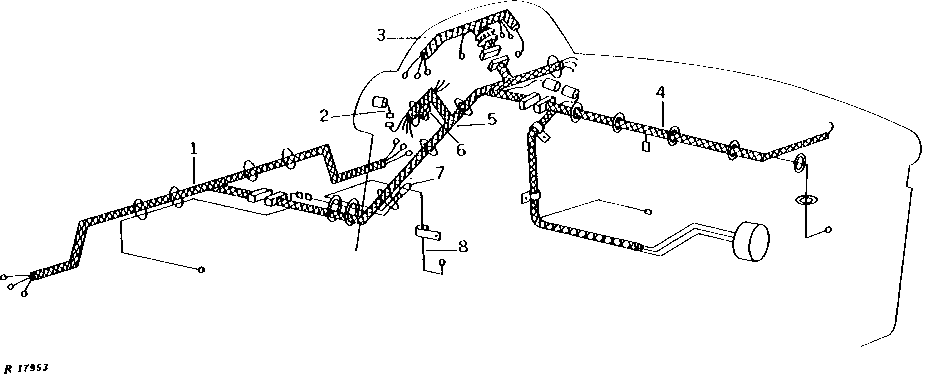

WIRING HARNESS (SERIAL NO. -022000) [01G04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34045	2	COVER	LIGHTING HARNESS TO AXLE HOUSING
1	19H2020	2	Cap Screw	5/16" X 1/2"
1	12H303	2	Lock Washer	5/16"
1	AR41684	1	WIRING HARNESS	-
2	-	1	Part 5	229MM (9") CIGAR LIGHTER, (MAKE FROM R66319, R32018, AR65005 AND R32027)
3	RE42183	1	WIRING HARNESS	(SYNCRO-RANGE) (ALSO ORDER AR48647) (SUB FOR AR45516)
3	RE42182	1	WIRING HARNESS	(SYNCRO-RANGE) (SUB FOR AR47856)
3	AR45517	1	WIRING HARNESS	(POWER SHIFT) (ALSO ORDER AR48647)
3	AR47857	1	WIRING HARNESS	(POWER SHIFT)
3	AR45518	1	DIODE	(SUB AR48647)
3	-	1	Part 11	254MM (10") (ACCESSORY CIRCUIT BREAKER TO INSTRUMENT PANEL HARNESS) (MAKE FROM R66319, R32018, AR65006 AND R32027)
3	AR45519	1	WIRING LEAD	(SUB AR48647) FUSEHOLDER AND WIRING LEAD
3	AR47547	1	WIRING LEAD	FUSEHOLDER
4	R45211	2	Clamp	-
4	R41439	5	Grommet	-
4	AR38795	1	WIRING HARNESS	(DIESEL) ALTERNATOR TO MAIN HARNESS
4	AR38793	1	WIRING HARNESS	(GASOLINE) ALTERNATOR TO MAIN HARNESS (NLA)
4	R44302	1	Tie Band	-
5	RE42185	1	WIRING HARNESS	(SUB FOR AR41683)
5	RE42186	1	WIRING HARNESS	(SUB FOR AR47855 OR AR49349)
5	R44302	1	Tie Band	-
5	R41439	4	Grommet	-
5	R45211	1	Clamp	-
5	B1986R	2	CLIP	MAIN HARNESS TO TRANSMISSION COVER SCREW
6	AR41694	1	WIRING LEAD	(NO LONGER AVAILABLE)
6	AR48594	1	Flasher	WARNING LAMP, (SUB FOR AR38453)
7	AR49416	1	WIRING LEAD	(SYNCRO-RANGE) INDICATOR LAMP CIRCUITRY
8	AR46729	1	WIRING LEAD	(POWER SHIFT) CLUTCH OIL FILTER AND TRANSMISSION OIL SWITCH TO MAIN HARNESS
8	AR47858	1	WIRING HARNESS	(POWER SHIFT) CLUTCH OIL FILTER AND TRANSMISSION OIL SWITCH TO MAIN HARNESS
8	AR46728	1	WIRING LEAD	(POWER SHIFT) TRANSMISSION PRESSURE SWITCH TO MAIN HARNESS
8	R45211	1	Clamp	(POWER SHIFT) LEAD TO CLUTCH VALVE HOUSING
..	AR47548	1	Fuse	-
..	AR48647	1	WIRE	FUSEHOLDER AND WIRING LEAD
..	R45231	1	LABEL	WIRING INSTRUCTION
..	AT66865	1	Lubricant	0.15L (5.3 OZ) TUBE, ELECTRICAL, (SUB FOR AR94760)

WIRING HARNESS (SERIAL NO. -022000) [01G04]

Нет текстового описания
