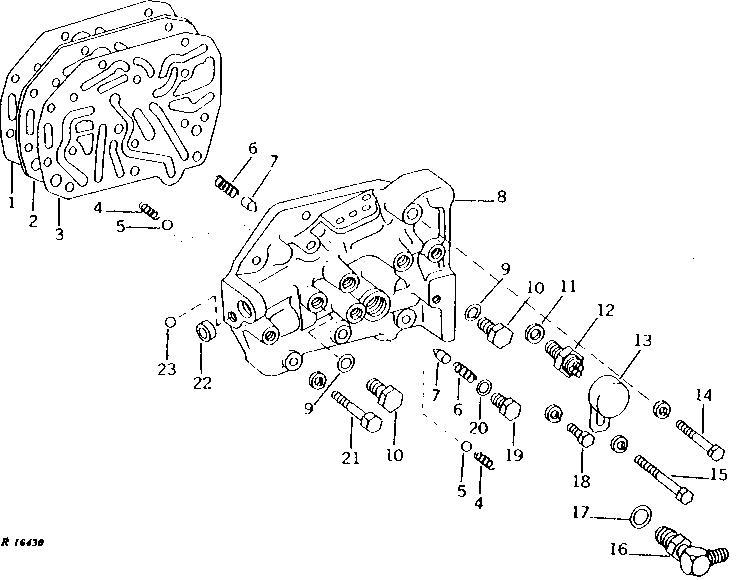

TRANSMISSION CONTROL VALVE (POWER SHIFT) (SERIAL NO. -022000) [02D02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R94321	1	GASKET	(SUB FOR R33273, R46817, R50567 OR R68817)
2	R50566	1	PLATE	(SUB FOR R33304)
3	R100308	1	GASKET	(SUB FOR R33274, R46818, R47073, R50568 OR R68818)
4	R47816	2	Spring	REVERSE VALVE DETENT BALL
5	D2361R	2	Ball	12.7MM (1/2") REVERSE DETENT
6	R33277	4	SPRING	-
6	R33277	2	SPRING	-
7	R42697	4	DETENT	-
7	R42697	2	DETENT	-
8	AR33890	1	HOUSING	(MARKED R33076) (SUB AR49709)
8	AR49709	1	HOUSING	(MARKED R47159) (NLA)
9	R26286	2	O-Ring	-
10	R27094	2	Drain Plug	-
11	T16911	1	SHIM	-
12	RE38390	1	SWITCH	(SUB FOR R36265, AR85323, AR89691 OR AT85153) NEUTRAL START
13	AR34663	1	COVER	-
14	19H2023	1	CAP SCREW	3/8" X 3-1/4"
14	12H304	1	Lock Washer	3/8"
15	19H2228	1	Cap Screw	3/8" X 4"
15	12H304	1	Lock Washer	3/8"
16	AR35712	1	ELBOW FITTING	90°
17	R26906	1	O-Ring	-
18	19H1732	2	Cap Screw	3/8" X 1-1/4"
18	19H1765	2	Cap Screw	3/8" X 1-3/4"
18	12H304	4	Lock Washer	3/8"
19	R27218	2	Fitting Plug	-
20	R26448	2	O-Ring	-
21	19H2128	2	CAP SCREW	3/8" X 3"
21	12H304	2	Lock Washer	3/8"
22	A3910R	1	PLUG	(SUB N102039)
23	D2361R	3	Ball	12.7MM (1/2")

TRANSMISSION CONTROL VALVE (POWER SHIFT) (SERIAL NO. -022000) [02D02]
