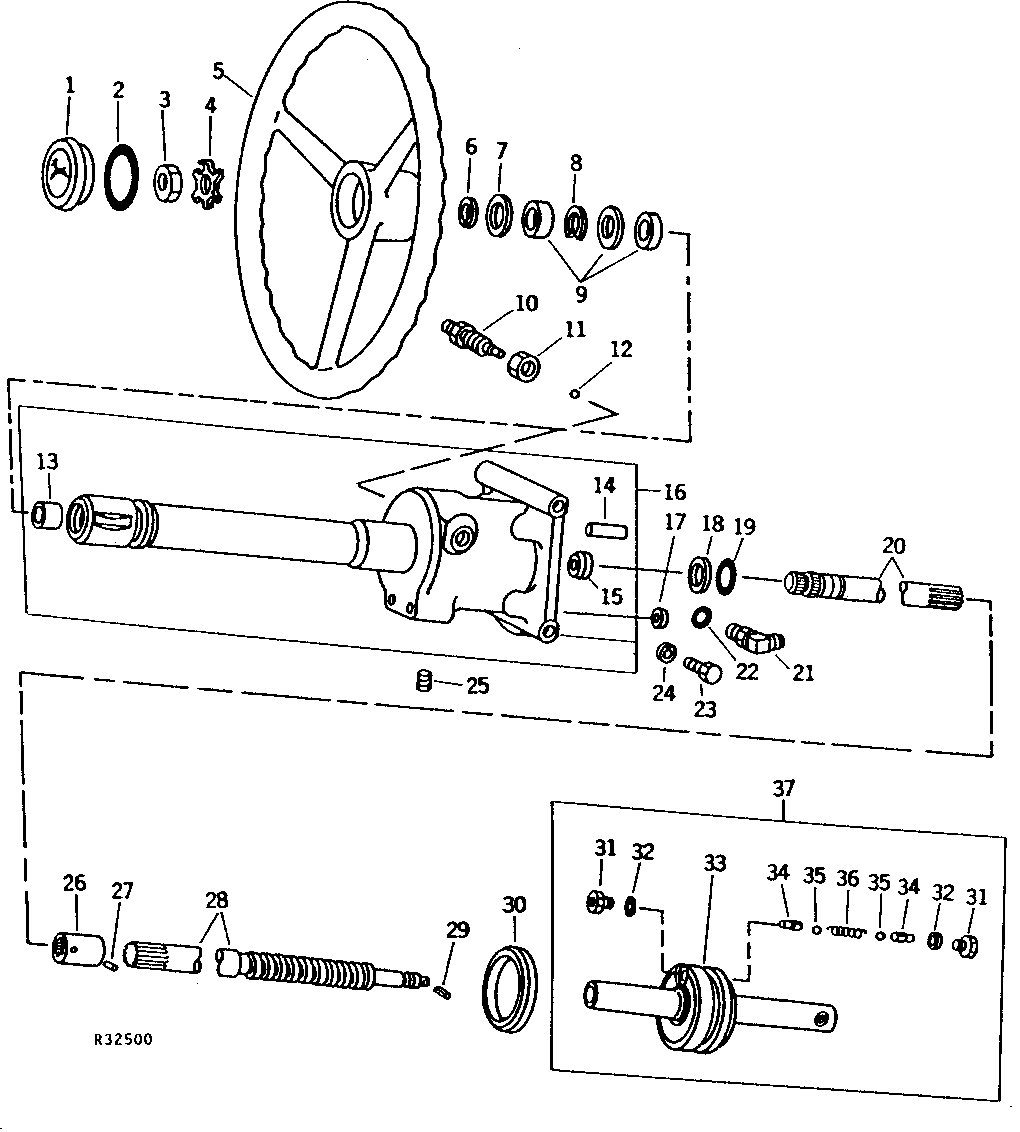

STEERING VALVE CYLINDER, SHAFT, AND PISTON [02E23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155227	1	Cover	(SUB FOR R34324, R45792, R47998 OR AL118173)
2	B3690R	1	O-Ring	-
3	14H904	1	Nut	3/4"
4	T17148	1	Lock Washer	(SUB R259492)
5	T22875	1	STEERING WHEEL	-
6	B169R	1	SNAP RING	-
7	R42629	1	WASHER	-
8	R26933	1	SNAP RING	-
9	AR34172	1	SEAL KIT	OIL SEAL, (SUB R32731 AND R72858)
10	R27299	1	SCREW	-
11	R27453	1	Nut	-
12	400R	1	Ball	6MM
13	R27320	1	BUSHING	-
14	R32186	2	DOWEL PIN	-
15	R27087	1	WASHER	-
16	AR40786	1	CYLINDER	(MARKED R41124) (SUB AR47290)
16	AR47290	1	CYLINDER	(MARKED R44846)
17	AR67783	1	O-RING KIT	PACKING (STEERING VALVE CYLINDER TO COVER) (SUB FOR AR42009)
18	R26441	1	BACK-UP RING	-
19	A3606R	1	O-RING	-
20	R73737	1	SHAFT	(SUB FOR R37426)
21	AT35121	1	Elbow Fitting	(SUB FOR AR26725)
22	R26448	1	O-Ring	-
23	19H1732	1	Cap Screw	3/8" X 1-1/4"
23	19H2284	3	Cap Screw	3/8" X 7/8"
24	12H304	4	Lock Washer	3/8"
24	24H1305	1	Washer	13/32" X 13/16" X 0.065"
25	15H558	1	Pipe Plug	1/8"
26	R27319	1	SPLINED COUPLING	-
27	34H282	1	Spring Pin	3/16" X 1"
28	R34125	1	SHAFT	-
29	11M7081	1	Cotter Pin	0.098" X 0.787"
30	R40567	1	WASHER	-
31	R31202	2	VALVE	-
32	R26287	2	O-Ring	-
33	AR68651	1	PISTON	(SUB FOR AR30298 OR AR30297)
34	R31201	2	SHAFT	-
35	H871R	2	Ball	5MM
36	A4816R	1	SPRING	-
37	AR68651	1	PISTON	(SUB FOR AR30297)

STEERING VALVE CYLINDER, SHAFT, AND PISTON [02E23]
