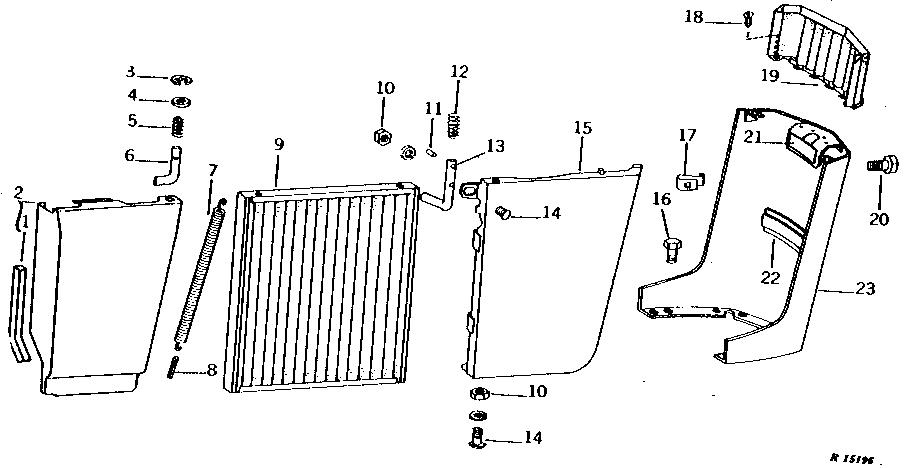

SIDE SHIELDS, GRILLES, PANELS, AND FRONT PLATE [02J19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	12.7 X 12.7 X 415.93MM (1/2" X 1/2" X 16-3/8") L.H. (MAKE FROM R91558)
1	-	1	Part 1	12.7 X 12.7 X 377.83MM (1/2" X 1/2" X 14-7/8") R.H. (MAKE FROM R91558)
2	AR38838	1	SHIELD	R.H.
2	AR38839	1	SHIELD	L.H.
2	AR38840	1	SHIELD	R.H. (USE WITH FRONT MOUNTED ROCKSHAFT WITH SINGLE OR DUAL CONTROL)
2	AR38841	1	SHIELD	L.H. (USE WITH FRONT MOUNTED ROCKSHAFT WITH DUAL CONTROL)
3	R27507	2	Snap Ring	(SUB R72654)
4	24H1286	2	Washer	9/32" X 1/2" X 1/16"
5	R28783	2	Compression Spring	-
6	R27506	2	PIN	-
7	R26858	2	SPRING	-
8	11M7084	2	Cotter Pin	5 X 25 MM
9	AR38234	2	GRILLE	-
10	14H812	4	NUT	3/8"
10	12H304	4	Lock Washer	3/8"
11	34H387	4	Spring Pin	3/16" X 3/4"
12	B161R	2	SPRING	-
13	R38054	1	PIN	R.H.
13	R38055	1	PIN	L.H.
14	03H1765	4	Bolt	3/8" X 3/4"
15	AR38204	1	PANEL	R.H.
15	AR38205	1	PANEL	L.H.
16	19H1815	8	Cap Screw	1/2" X 1-1/4"
17	R26694	6	CLIP	-
18	37H84	6	Screw	1/4" X 3/4"
19	AR38233	1	GRILLE	-
20	19H2009	2	CAP SCREW	3/4" X 1-5/8"
21	-	1	Part 28	3.18 X 38.1 X 292.1MM (1/8" X 1-1/2" X 11-1/2") UPPER, (MAKE FROM R21736)
22	-	1	Part 29	3.18 X 38.1 X 266.7MM (1/8" X 1-1/2" X 10-1/2") LOWER, (MAKE FROM R21736)
23	AR38232	1	PLATE	-
