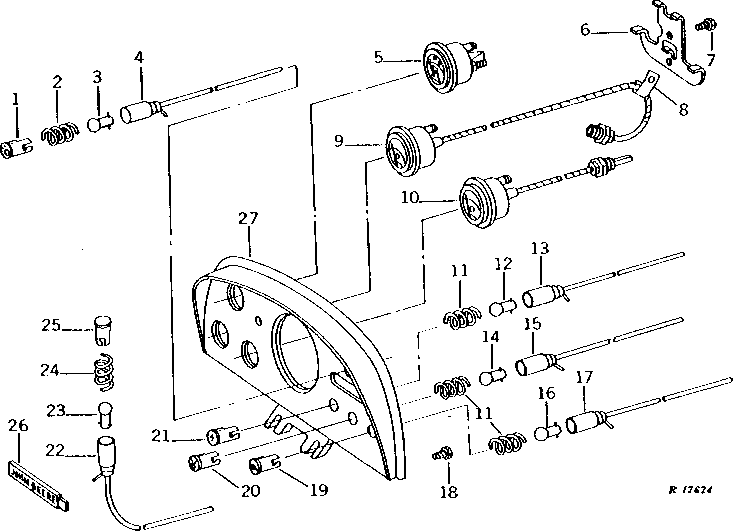

INSTRUMENT PANEL, INSTRUMENTS AND INDICATOR LAMPS [02K25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR47916	1	LENS	HIGH-BEAM INDICATOR (NLA)
2	R30378	1	Spring	-
3	AR50440	1	LAMP	HIGH-BEAM INDICATOR
4	AR50508	1	INDICATOR LAMP	HIGH-BEAM INDICATOR
5	AR45436	1	GAUGE	FUEL
6	R44198	1	CLAMP	-
7	37M7210	1	Screw	NO. 10 X 7/8", (2 USED SYNCRO-RANGE) (1 USED POWER SHIFT)
7	37H41	2	SCREW	(A) NO. 10 X 1"
8	B1986R	1	CLIP	-
9	AR38882	1	GAUGE	TRANSMISSION OIL TEMPERATURE
10	AR48640	1	TEMPERATURE GAUGE	(WATER TEMPERATURE) (SUB FOR AR45435)
11	R30378	3	Spring	-
12	AR55694	1	BULB	ALTERNATOR INDICATOR, (SUB FOR R30379)
12	AR50439	1	LAMP	ALTERNATOR INDICATOR
13	AR48034	1	INDICATOR LIGHT	(SUB AT48673, AR55694, AT44165 AND R30378)
14	AR50439	1	LAMP	-
14	AR55694	1	BULB	(SUB FOR R30379)
15	AR48033	1	INDICATOR LIGHT	(AIR CLEANER) (SUB AR45439, AR55694, R30378 AND AT44165)
16	AR55694	1	BULB	(ENGINE OIL PRESSURE) (SUB FOR R30379)
17	AR48035	1	INDICATOR LIGHT	(ENGINE OIL PRESSURE) (SUB AT48674, AT44165, AR55694 AND R30378)
18	37M7245	4	SCREW	NO. 10 X 3/8"
19	AT48674	1	LENS	(ENGINE OIL PRESSURE) (SUB FOR AR45437)
20	AR45439	1	LENS	(AIR CLEANER)
21	AT48673	1	LENS	(ALTERNATOR) (SUB FOR AR45438)
22	AR48032	1	INDICATOR LIGHT	(A) (HYDRAULIC FILTER) (SUB AR45446, AR55694, AT44165 AND R30378)
23	AR55694	1	BULB	(A) (HYDRAULIC FILTER) (SUB FOR R30379)
24	R30378	1	Spring	(A)
25	AR45446	1	LENS	(A) (HYDRAULIC FILTER)
26	AR45440	1	IDENTIFICATION PLATE	NAME PLATE
27	R46520	1	INSTRUMENT PANEL	(SUB FOR R41705 OR AR68199) (SUB R56320 AND (2) T16738)
27	AR51160	1	INSTRUMENT PANEL	(SUB R56320 AND (2) T16738)
27	R49025	1	LABEL	-
27	T16738	1	PLUG	HIGH-BEAM INDICATOR HOLE

INSTRUMENT PANEL, INSTRUMENTS AND INDICATOR LAMPS [02K25]
