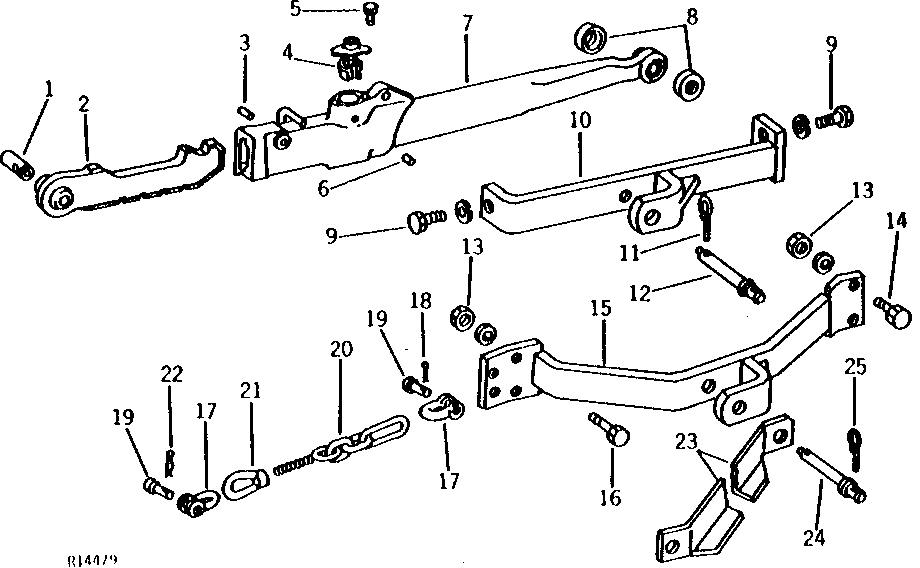

HITCH DRAFT LINKS AND SUPPORTS (HI-CROP) [02I13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R66433	2	Bushing	CATEGORY II, (SUB FOR F2685R)
1	R66432	2	Bushing	CATEGORY I, (SUB FOR F2684R)
2	AR27645	1	DRAFT LINK END	R.H. (MARKED R28255)
2	AR27646	1	DRAFT LINK END	L.H. (MARKED R28256)
3	34H371	2	Spring Pin	1/2" X 2"
4	AR69317	2	LATCH	(SUB FOR AR30288) (SUB AR90082)
4	AR90082	1	LOCK	-
5	19H1227	4	Cap Screw	1/4" X 1/2"
6	B2641R	2	DOWEL PIN	-
7	AR69315	1	LINK BODY	R.H. (SUB FOR AR27649)
7	AR27650	1	LINK BODY	L.H. (SUB AR69316 AND AR90082)
8	R26608	4	Washer	-
9	19H2589	6	Cap Screw	3/4" X 1-7/8"
9	12H236	6	Lock Washer	3/4"
10	AR33952	2	SUPPORT	(USE WITH HITCH FOR WIDE CLEARANCE IMPLEMENTS)
11	AR62151	1	Quick Lock Pin	(SUB FOR B11182) (SUB M115827)
12	R26609	2	PIN	-
13	14H794	8	Nut	3/4"
13	12H236	8	Lock Washer	3/4"
14	19H1782	4	Cap Screw	3/4" X 2-1/4"
15	AR33954	1	SUPPORT	R.H. (USE WITH HITCH FOR MODIFIED CATEGORY I OR CATEGORY II IMPLEMENTS) (NLA)
15	AR33955	1	SUPPORT	L.H. (USE WITH HITCH FOR MODIFIED CATEGORY I OR CATEGORY II IMPLEMENTS) (NLA)
16	19H1715	4	Cap Screw	3/4" X 3"
17	31603	4	CLEVIS	-
18	11M7084	2	Cotter Pin	5 X 25 MM
19	RV695A	4	PIN FASTENER	(SUB FOR DA4560A)
20	AR27790	2	LINK CHAIN	-
21	R21342	2	NUT	-
22	A3581R	2	Spring Locking Pin	-
23	R28272	2	BRACE	-
24	R28271	2	PIN	(NLA)
25	AR62151	2	Quick Lock Pin	(SUB FOR B11182) (SUB M115827)
..	AF3147R	1	BAR	(NOT ILLUSTRATED)
