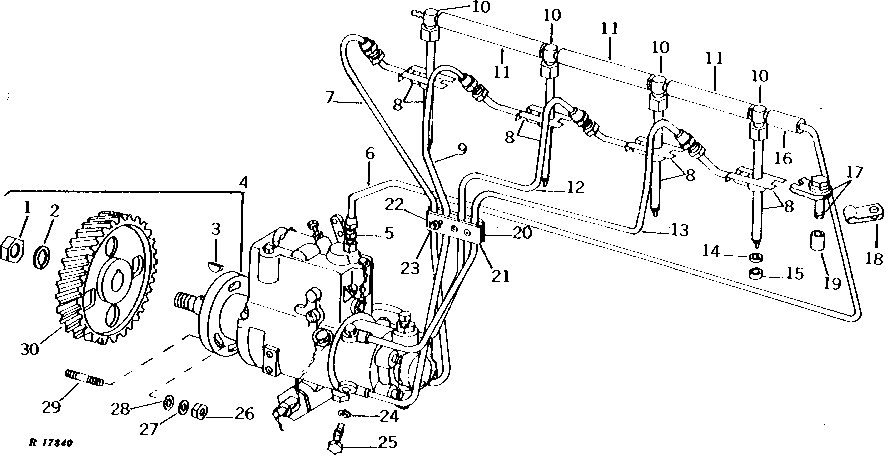

FUEL INJECTION PUMP AND FUEL PIPES (ENGINE SERIAL NO. 177721- ) [01E09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48599	1	NUT	-
2	R48600	1	LOCK WASHER	(SUB R132874)
3	26H10	1	Shaft Key	5/32" X 5/8"
4	AR51340	1	FUEL INJECTION PUMP	(ROOSA MASTER NO.JDB431-AL2473)
4	SE500561	1	FUEL INJECTION PUMP REMAN	(REMANUFACTURED)
5	R35352	1	Fitting	-
6	AT27620	1	FUEL LINE	-
7	AT18173	1	FUEL LINE	NO. 1
8	SE500822	1	NOZZLE	(CONTAINS (4) REMANUFACTURED NOZZLES)
8	SE501099	1	NOZZLE	(REMANUFACTURED) (PKG OF 1)
8	T32252	4	WASHER	INJECTION NOZZLE TO CYLINDER HEAD
8	AR88239	4	INJECTION NOZZLE	(SUB FOR AR49877, AR56290 AND AR73673) (SUB AR89564 OR SE500822)
9	AT18174	1	FUEL LINE	NO. 2
10	AT27622	4	CAP	-
11	-	3	Part 15	112.70MM (4-7/16") (MAKE FROM AT32064)
12	AT18175	1	FUEL LINE	NO. 3
13	AT18176	1	FUEL LINE	NO. 4
14	R34764	4	WASHER	-
15	R48000	4	Seal	-
16	-	1	Part 20	44.54MM (1-3/4") (MAKE FROM AT32064)
17	R34760	4	CLAMP	-
18	T29969	1	Clamp	(SUB FOR R47281)
19	R34761	4	SPACER	-
19	24H1685	4	Washer	11/32" X 47/64" X 0.083"
20	T23463	1	STRAP	(SUB (2) R59299, R59300, R61146 AND (3) AR76704)
21	T23462	1	CLAMP	(SUB (2) R59299, R59300, R61146 AND (3) AR76704)
22	12H246	3	LOCK WASHER	0.190"
23	21H1317	3	SCREW	0.190" X 5/8"
24	T20055	8	WASHER	-
25	R26726	4	HOLLOW SCREW	-
26	14H812	2	NUT	3/8"
27	12H304	2	Lock Washer	3/8"
28	24M7096	2	Washer	10.500 X 18 X 1.600 MM
29	T20052	2	STUD	-
30	T20165	1	GEAR	(48 TEETH)
..	AR34368	1	PLUG	FUEL INJECTION OVERHAUL

FUEL INJECTION PUMP AND FUEL PIPES (ENGINE SERIAL NO. 177721- ) [01E09]
