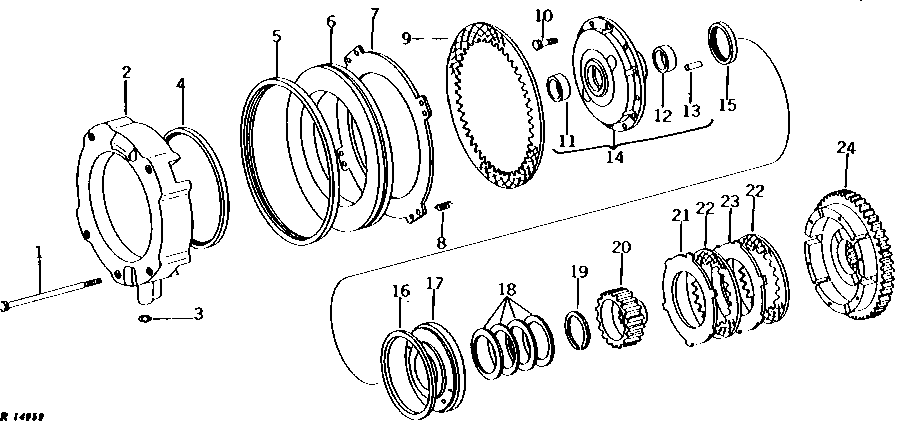

FOURTH PLANETARY BRAKE AND CLUTCH PACK (POWER SHIFT) [02C18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3481	5	Cap Screw	3/8" X 7-1/2"
2	R38245	1	HOUSING	-
3	R459R	2	O-Ring	-
4	R65479	1	PACKING	INNER, (SUB FOR R33244 OR R44816)
5	R65480	1	PACKING	OUTER, (SUB FOR R33245 OR R44817)
6	R33261	1	PISTON	(SUB R65592)
7	R48235	1	PLATE	(SUB FOR R33871)
8	R33054	8	SPRING	(SUB R74852)
9	R227405	1	BRAKE DISK	(SUB FOR R33053)
10	R41168	6	Cap Screw	-
11	R34613	1	BUSHING	REAR
12	R85041	1	Bushing	FRONT, (SUB FOR R34614)
13	R28671	1	Dowel Pin	-
14	AR89864	1	HOUSING	(MARKED R38238) (SUB AR38297)
15	R33246	1	Seal	INNER
16	R33059	1	SEALING WASHER	(TWO PLATE CLUTCH) OUTER
16	R41166	1	SEAL	(THREE PLATE CLUTCH) OUTER
17	R38235	1	PISTON	(TWO PLATE CLUTCH)
17	R41160	1	PISTON	(THREE PLATE CLUTCH)
18	R67840	4	Disk Spring	(SUB FOR R33518)
19	R33247	1	Snap Ring	-
20	R38237	1	HUB	-
21	R46391	1	CLUTCH PLATE	-
22	RE234307	2	CLUTCH DISK	(TWO PLATE CLUTCH) (SUB FOR RE27995, R31404 OR RE23000)
22	RE234307	3	CLUTCH DISK	(THREE PLATE CLUTCH) (SUB FOR RE27995, R31404 OR RE23000)
23	R39325	1	CLUTCH PLATE	(TWO PLATE CLUTCH) (SUB FOR R32313) (SUB R57345)
23	R39325	2	CLUTCH PLATE	(THREE PLATE CLUTCH) (SUB FOR R32313) (SUB R57345)
24	R38236	1	DRUM	-

FOURTH PLANETARY BRAKE AND CLUTCH PACK (POWER SHIFT) [02C18]
