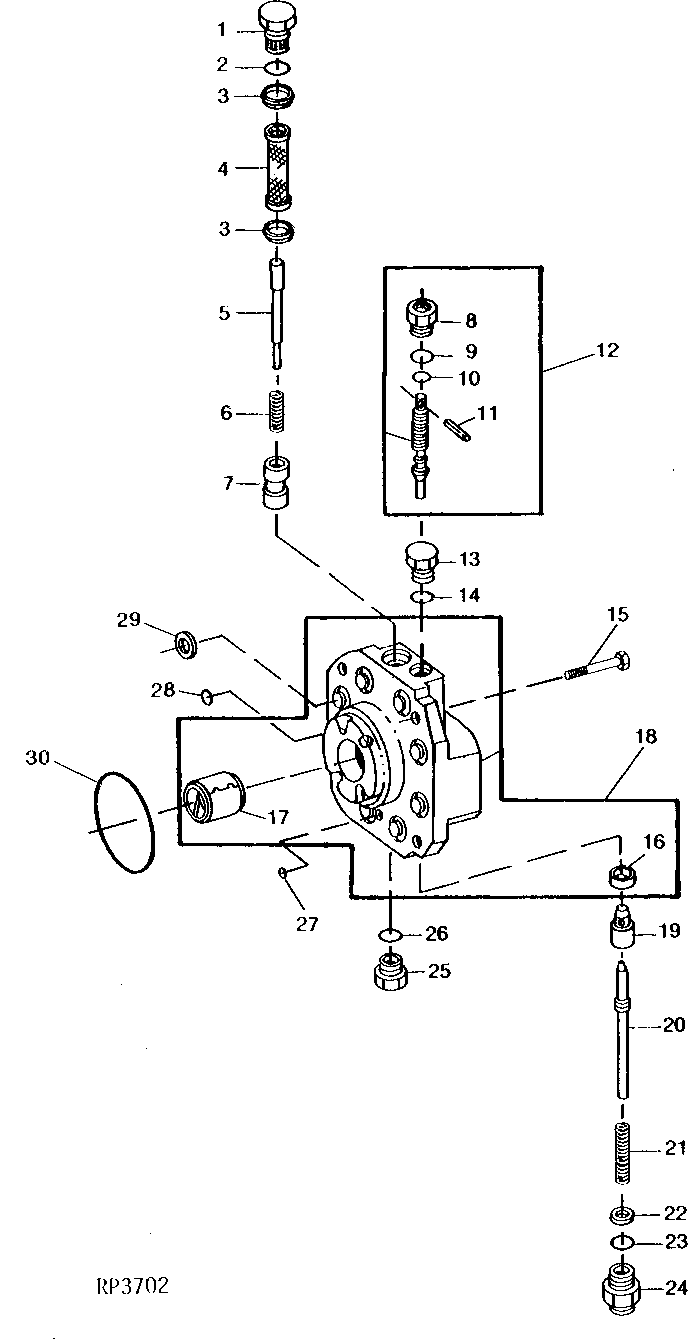

FOUR PISTON HYDRAULIC PUMP STROKE CONTROL VALVE 24.5 CM3 (1.5 IN.3) (PUMP LESS SERIAL PLATE) [02F18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R38045	1	PLUG	-
2	F3171R	1	O-Ring	-
3	R27174	2	PACKING	-
4	R27173	1	FILTER ELEMENT	-
5	R38424	1	VALVE	-
6	R62372	1	Spring	(SUB FOR R34352)
7	R38425	1	SLEEVE	-
8	R38053	1	DRAIN PLUG	-
9	R26375	1	O-Ring	-
10	R30903	1	O-Ring	-
11	34H254	1	Spring Pin	1/8" X 1-1/2"
12	AR38225	1	Hydraulic Pump	(MANUAL DESTROKE)
13	R39112	1	Fitting	(LESS MANUAL DESTROKE)
14	R26375	1	O-Ring	-
15	19H2644	4	Cap Screw	1/2" X 2-1/2"
16	R38544	1	VALVE SEAT INSERT	-
17	R38036	1	BUSHING	-
18	AR38784	1	HOUSING	(MARKED R38039) (SUB AR97872) (ALSO ORDER AR38926, AT33033, P47908, R39741, U13639 AND F3171R)
19	R38543	1	VALVE	-
20	R39242	1	GUIDE	(SUB R76167 AND AR103040) (SUB FOR R68383)
21	R39240	1	SPRING	-
22	24M7096	1	Washer	10.500 X 18 X 1.600 MM
23	R26906	1	O-Ring	-
24	AR39106	1	SCREW	(SUB AR103040 AND R76167) (SUB FOR R39035)
25	R27474	1	Drain Plug	-
26	R26906	1	O-Ring	-
27	R56756	1	O-RING	(SUB FOR A3917R)
28	R375R	1	O-Ring	-
29	R69279	8	Washer	(SUB FOR R26149 AND R56754)
30	R56757	1	O-Ring	(SUB FOR R26621)

FOUR PISTON HYDRAULIC PUMP STROKE CONTROL VALVE 24.5 CM3 (1.5 IN.3) (PUMP LESS SERIAL PLATE) [02F18]
