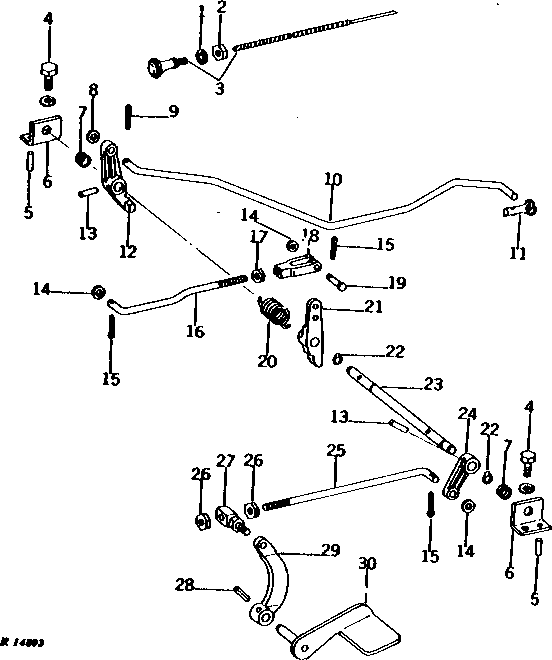

FOOT SPEED CONTROL, SPEED CONTROL RODS AND CHOKE CABLE [01D18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H310	1	Lock Washer	3/8", (GASOLINE)
2	14H774	1	Nut	3/8", (GASOLINE)
3	AT20781	1	PUSH PULL CABLE	(GASOLINE)
4	19H1936	2	Cap Screw	3/8" X 3/4"
4	12H304	2	Lock Washer	3/8"
5	34H275	2	Spring Pin	3/16" X 1/2"
6	R38485	2	ANGLE	-
7	R34811	2	GROMMET	-
8	24H1287	1	Washer	9/32" X 5/8" X 0.065", (1 USED GASOLINE) (2 USED DIESEL)
9	11M7081	1	Cotter Pin	0.098" X 0.787", (1 USED GASOLINE) (2 USED DIESEL)
10	R38491	1	ROD	(GASOLINE)
10	R38492	1	ROD	(DIESEL)
10	R38603	1	ROD	(DIESEL)
11	R26524	1	Clip	R.H. (GASOLINE)
12	R38145	1	LEVER	(NO LONGER AVAILABLE)
13	34H282	2	Spring Pin	3/16" X 1"
14	24H1287	3	Washer	9/32" X 5/8" X 0.065"
15	11M7081	3	Cotter Pin	0.098" X 0.787"
16	R38489	1	STUD	HAND SPEED
17	14H649	1	Nut	1/4"
18	M3742T	1	Yoke	-
19	R72660	1	Pin Fastener	(SUB FOR R662R)
20	R38143	1	SPRING	(SUB R117129)
21	R38490	1	ARM	HAND SPEED ROD
22	R26871	2	Snap Ring	(SUB FOR R38126 OR P44982)
23	R38486	1	SHAFT	-
24	R38136	1	ARM	-
25	R34708	1	BOLT	FOOT SPEED, (SUB FOR R38487)
26	14H850	2	NUT	1/4"
27	AH77100	1	Ball Joint	(SUB FOR AA5302R)
28	34H312	1	Spring Pin	1/4" X 1"
29	R38488	1	ARM	-
30	AR38520	1	PEDAL	-

FOOT SPEED CONTROL, SPEED CONTROL RODS AND CHOKE CABLE [01D18]
