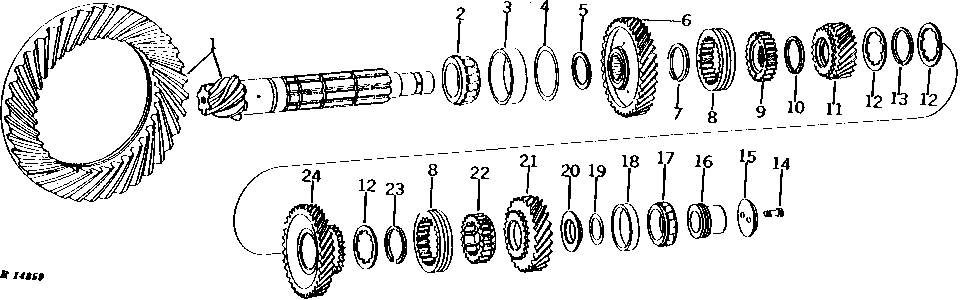

DIFFERENTIAL DRIVE AND BEVEL PINION ASSEMBLY (SYNCRO-RANGE) [02C02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE171047	1	BEVEL GEAR DRIVE	(USED PART) (SUB FOR AR34722 OR AR34735) (ALSO ORDER (2) R26227, (4) R26228, (2) R34313 AND (4) R34314)
1	AR34722	1	GEAR	(MATCHED SET) (MARKED R34875 AND R34873) (SUB FOR AR34735) (ALSO ORDER (2) R26227, (4) R26228, (2) R34313 AND (4) R34314)
2	JD8973	1	BEARING CONE	-
3	JD8246	1	Bearing Cup	-
4	R26227	1	Shim	0.08MM (.003")
4	R26228	1	Shim	0.13MM (.005")
5	R38178	1	BUSHING	-
6	AR87813	1	Gear	1ST AND 3RD SPEED, (MARKED R33501 OR R67423) (SUB FOR AR32237)
7	R26264	1	Snap Ring	-
8	T31800	2	SHIFT COLLAR	TRANSMISSION SHIFTER, (SUB FOR T23519) (SUB T80380)
9	R33510	1	GEAR	TRANSMISSION SHIFTER, REAR
10	R33474	1	SNAP RING	-
11	R33511	1	GEAR	6TH AND 8TH SPEED
12	R26253	3	THRUST WASHER	-
13	R26265	1	Snap Ring	-
14	R57725	2	Screw	(SUB FOR R40835)
15	R50365	1	PLATE	(SUB FOR R33347)
16	R33795	1	BEARING RACE	(LESS PTO)
17	R154778	1	Bearing Cone	(SUB FOR JD8980)
18	JD7430	1	Bearing Cup	-
19	R33413	1	SHIM	0.08MM (.003")
19	R33414	1	SHIM	0.13MM (.005")
19	R33415	1	Shim	0.25MM (.010")
20	R69214	1	THRUST WASHER	(SUB FOR R33386)
21	R26990	1	GEAR	4TH AND 7TH SPEED
22	R26255	1	GEAR	TRANSMISSION SHIFTER, FRONT
23	R26266	1	SNAP RING	-
24	R33503	1	GEAR	2ND AND 5TH SPEED

DIFFERENTIAL DRIVE AND BEVEL PINION ASSEMBLY (SYNCRO-RANGE) [02C02]
