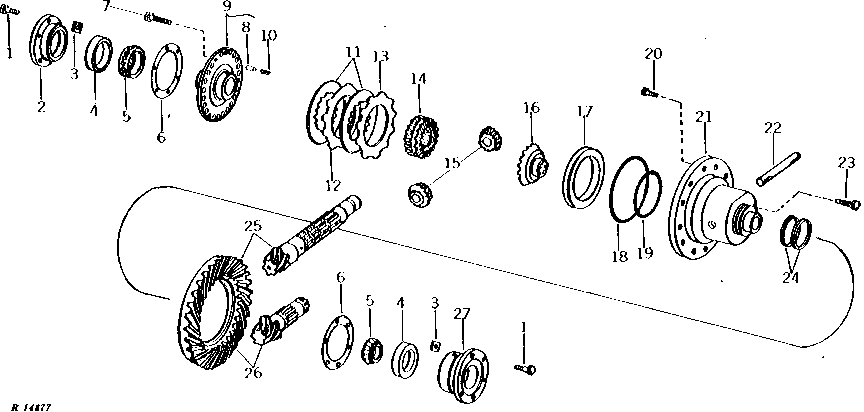

DIFFERENTIAL (DIFFERENTIAL LOCK) [02D20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46162	12	SCREW	-
2	R26105	1	BEARING HOUSING W/O BEARING	(NLA) L.H.
3	14H823	2	NUT	1/2"
4	JD8206	2	Bearing Cup	-
5	JD8946	2	Bearing Cone	-
6	R46323	1	Shim	0.08MM (.003") (SUB FOR R26042)
6	R46324	1	Shim	0.13MM (.005") (SUB FOR R26043)
7	R40235	10	CAP SCREW	-
7	R38614	10	CAP SCREW	-
8	34H297	2	Spring Pin	7/32" X 1"
9	AR38131	1	COVER	(MARKED R38264) (SUB AR38923 AND (10) R38614)
9	AR38923	1	COVER	(NLA) (MARKED R38613)
10	R34863	2	SPRING	-
11	AR82035	2	DISK, WITH INNER SPLINE	(SUB FOR AR33974 OR AR69349)
12	R34520	1	CLUTCH PLATE	-
13	R78156	1	Clutch Plate	(SUB FOR R34517)
14	R38262	1	GEAR	(NLA)
15	R42443	2	PINION	-
16	R38261	1	GEAR	(NLA)
17	R34526	1	PISTON	-
18	R41018	1	Packing	-
19	R44327	1	WASHER	(SUB FOR R41019)
20	R41048	10	CAP SCREW	-
21	AR38407	1	HOUSING	(NLA) (MARKED R38259)
22	R38418	1	PINION SHAFT	(NLA)
23	R70236	1	CAP SCREW	(SUB FOR R41050)
24	R34513	2	Ring	-
25	AR34722	1	GEAR	(MATCHED SET) (SYNCRO-RANGE) (SUB FOR AR34735) (ALSO ORDER (2) R26227, (4) R26228, (2) R34313 AND (4) R34314)
25	RE171047	1	BEVEL GEAR DRIVE	(USED PART) (SUB FOR AR34722) (ALSO ORDER (2) R26227, (4) R26228, (2) R34313 AND (4) R34314)
26	AR34736	1	BEVEL GEAR DRIVE	(MATCHED SET) (POWER SHIFT) (SUB RE50113, AR34723 AND R51200) ( RE194088 USED PART)
27	R38263	1	BEARING HOUSING W/O BEARING	(NLA) R.H.

DIFFERENTIAL (DIFFERENTIAL LOCK) [02D20]
