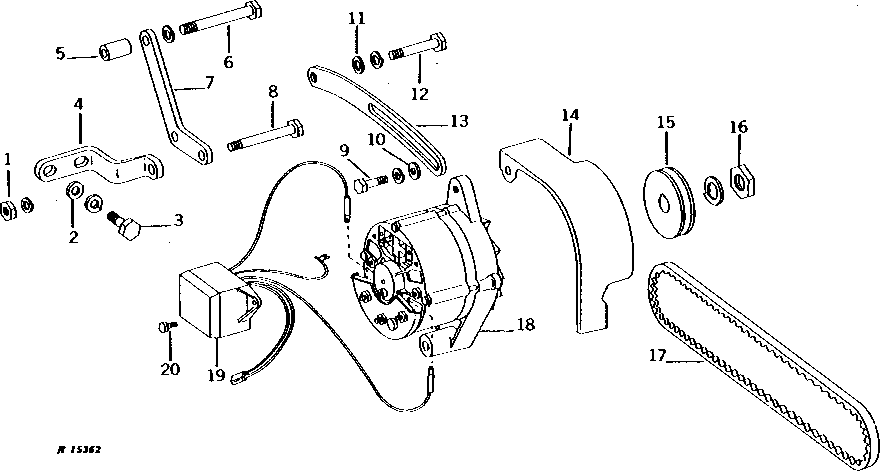

ALTERNATOR, REGULATOR, AND MOUNTING BRACKETS [01G19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H304	1	Lock Washer	3/8"
1	14H812	1	NUT	3/8"
2	24M7096	2	Washer	10.500 X 18 X 1.600 MM
3	19H1731	2	Cap Screw	3/8" X 1"
3	12H304	2	Lock Washer	3/8"
4	R38372	1	BRACKET	-
5	28H2547	2	Spacer	3/8" X 1"
6	19H2128	2	CAP SCREW	3/8" X 3"
6	24M7096	2	Washer	10.500 X 18 X 1.600 MM
7	T20202	1	Bracket	FRONT
8	19H2128	1	CAP SCREW	3/8" X 3"
9	19H2127	1	Cap Screw	5/16" X 7/8"
9	12H303	1	Lock Washer	5/16"
10	24H1292	1	Washer	11/32" X 3/4" X 0.120"
11	24M7106	1	Washer	10 X 18 X 2.500 MM
12	19H1726	1	Cap Screw	3/8" X 2-1/4"
12	12H304	1	Lock Washer	3/8"
13	T20204	1	STRAP	-
14	R40575	1	SHIELD	-
15	T24474	1	PULLEY	-
16	14H866	1	Nut	5/8"
16	12H294	1	Lock Washer	5/8"
17	T24473	1	V-Belt	-
18	AR38458	1	ALTERNATOR	(12-VOLT) (MOTOROLA MODEL NO. RA12NJD453-S) (SUB TY24306)
18	TY24306	1	ALTERNATOR	(REMANUFACTURED) (SUB FOR AR38458 OR TY1427)
19	AR78298	1	VOLTAGE REGULATOR	(12-VOLT) (SUB FOR AR38459 OR AR52927)
20	37H201	3	Screw	(SUB FOR R44008)

ALTERNATOR, REGULATOR, AND MOUNTING BRACKETS [01G19]
