Открытый узел

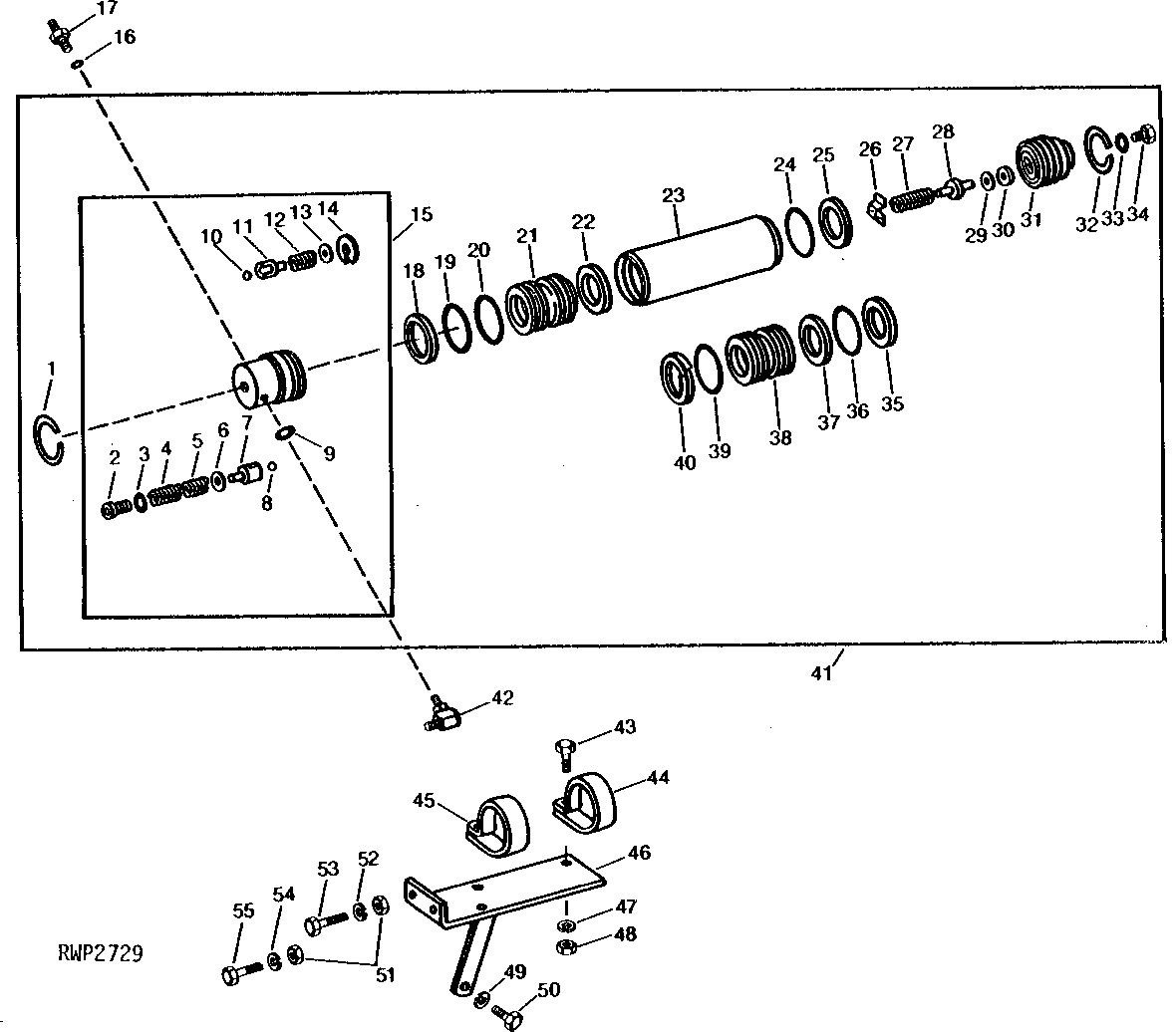

ACCUMULATOR (TRACTOR SERIAL NO. 022,001- ) [02E19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U10136	1	SNAP RING	-
2	R47607	1	Pipe Plug	-
3	R26286	1	O-Ring	-
4	R47605	1	SPRING	-
5	R47606	1	Spring	-
6	R31632	2	SHIM	-
7	R44254	1	GUIDE	-
8	400R	1	Ball	6.35MM (1/4")
9	R26286	1	O-Ring	-
10	400R	1	Ball	6.35MM (1/4")
11	R44254	1	GUIDE	-
12	R44256	1	SPRING	-
13	R48013	1	Washer	-
14	R33282	1	Snap Ring	-
15	AR67781	1	CAP	(SUB FOR AR50387 OR AR65886) (SUB AR93259)
16	R26287	1	O-Ring	-
17	R36742	1	COUPLING	-
18	R35684	1	BACK-UP RING	-
19	U12331	1	O-Ring	-
20	A4728R	1	O-Ring	(1 USED WITH R48952) (2 USED WITH R49345)
21	R48952	1	PISTON	(SUB R57103, R27649, (2) A4728R AND (2) L29015)
21	AR55711	1	PISTON	(MARKED R49345) (SUB R57103, R27649, (2) A4728R AND (2) L29015)
22	R35680	1	SEAL	(USE WITH R48952)
23	R46987	1	HYDRAULIC CYLINDER BARREL	(SUB R77867 AND (2) R78101)
24	U12331	1	O-Ring	-
25	R35684	1	BACK-UP RING	-
26	R41877	1	GUIDE	-
27	R47086	1	SPRING	-
28	R47085	1	VALVE	-
29	R60038	1	Packing	(SUB FOR R26760)
30	R47087	1	WASHER	-
31	R48957	1	END	-
32	U10136	1	SNAP RING	-
33	R26286	1	O-Ring	-
34	R27094	1	Drain Plug	-
35	L29015	1	BACK-UP RING	-
36	A4728R	1	O-Ring	-
37	L29015	1	BACK-UP RING	-
38	R57103	1	PISTON	(ALSO ORDER (2) A4728R, R27649 AND (2) L29015) (SUB FOR AL23523)
39	A4728R	1	O-Ring	-
40	R27649	1	BACK-UP RING	(SUB FOR AR51092)
41	AR67778	1	ACCUMULATOR	(SUB RE11956)
42	AT32333	1	ELBOW FITTING	90°, (SUB FOR AR26771)
43	19H2552	2	CAP SCREW	3/8" X 1-1/8"
44	R35794	1	Clamp	-
45	R35794	1	Clamp	-
46	AR38913	1	BRACKET	(NLA)
47	12H304	2	Lock Washer	3/8"
48	14H812	2	NUT	3/8"
49	12H301	1	Lock Washer	1/2"
50	19H3385	1	Cap Screw	1/2" X 1-1/8"
51	14H812	2	NUT	3/8"
52	12H304	1	Lock Washer	3/8"
53	19H1800	1	Cap Screw	3/8" X 1-1/2"
54	12H304	1	Lock Washer	3/8"
55	19H2552	1	CAP SCREW	3/8" X 1-1/8"

ACCUMULATOR (TRACTOR SERIAL NO. 022,001- ) [02E19]
