SPRING TRIP STANDARD WITH HYDRAULIC CLOSING DISKS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AN236245	1	Bracket	-
2	24H1247	2	Washer	29/32" X 1-1/2" X 1/4"
3	E63018	4	Spring Pin	-
4	N262455	1	Pin Fastener	-
4	N240726	1	Pin Fastener	-
5	N240840	2	Washer	-
6	N239527	1	Standard	-
7	14M7589	4	Lock Nut	M16
8	A85765	1	Hose	1.75", DRY FERTILIZER HOSE
9	N330928	1	Bracket	RH
10	N330929	1	Bracket	LH
11	19M6754	2	Cap Screw	M16 X 75
12	19M7826	2	Screw	M16 X 70
13	N239791	1	Pin Fastener	-
14	N260873	1	Bolt	-
15	N260874	1	Spacer	-
16	N184849	1	Bracket	-
17	N184873	2	Plate	-
18	N184995	2	Bushing	-
19	24H1254	2	Washer	17/32" X 1-1/8" X 0.105"
20	K40014	2	Lock Nut	-
21	03H1731	2	Bolt	1/2" X 1-1/2"
22	K40017	1	Lock Nut	-
23	N184409	1	Compression Spring	-
24	N262540	1	Support	-
25	AN236292	1	Knife	(SUB FOR AN235934) AA(NH3), VAPOR AND DRY
25	AN237013	1	Knife	(Cast-Chrome Reduced Disturbance Pin-On Point) INCLUDES A35642
25	AN236320	1	Knife	(Cast-Chrome Pin-On Point) INCLUDES A35642
25	AN236293	1	Knife	(Customer to supply vapor tube) (SUB FOR AN235936) AA(NH3), VAPOR AND LIQUID
25	AN236293	1	Knife	(Customer to supply vapor tube) (SUB FOR AN235935) AA(NH3) AND LIQUID
25	AN236292	1	Knife	(SUB FOR AN235933) AA(NH3) AND DRY
25	AN236293	1	Knife	(Customer to supply vapor tube) (SUB FOR AN235932) AA(NH3) AND VAPOR
25	AN236291	1	Knife	3/8" AA(NH3), (SUB FOR AN235931) TUBE
26	A31871	2	Lock Nut	-
27	19M7609	2	Cap Screw	M16 X 90
28	19M8287	2	Cap Screw	M24 X 80
29	N330903	1	Bracket	-

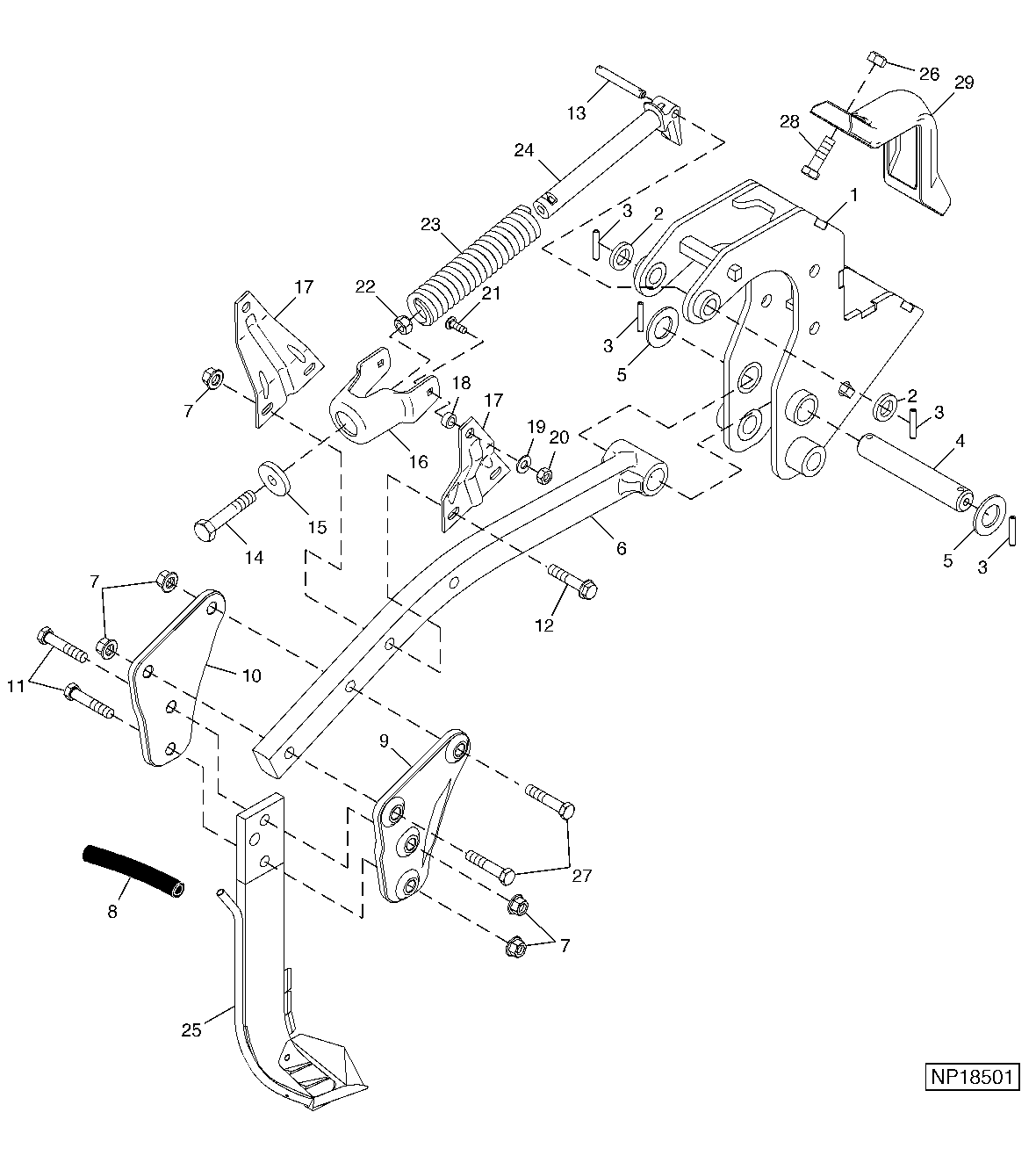

SPRING TRIP STANDARD WITH HYDRAULIC CLOSING DISKS
