Main Lift and Down Pressure Cylinder, Hoses, Fittings, Side Fold Hydraulics

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	5FT6000644	1	Hydraulic Hose	Fabricate; See PDI for Specification
2	5FT6000422	1	Hydraulic Hose	Fabricate; See PDI for Specification
3	X8C6X-S	1	Elbow Fitting	-
4	X6R6X-S	1	Tee Fitting	-
5	X8-6TRTX-S	1	Reducer	-
6	X8R6X-S	1	Tee Fitting	-
7	X8JTX-S	1	Tee Fitting	-
8	5FT60004233	1	Hydraulic Hose	Fabricate; See PDI for Specification
9	5FT6000645	1	Hydraulic Hose	Fabricate; See PDI for Specification
10	AA79985	2	Fitting	-
11	5FT620041	2	Hydraulic Cylinder	-
11	5FTMI639568	1	Seal Kit	USE WITH 5FT620041
12	X8C5OX-S	2	Elbow Fitting	-
13	5FT620073	2	Hydraulic Cylinder	-
14	5FT6000424	1	Hydraulic Hose - Fabricate	Fabricate; See PDI for Specification
15	5FT6000422	1	Hydraulic Hose	Fabricate; See PDI for Specification
16	AA79336	4	Fitting	-
17	5FT6000642	1	Hydraulic Hose	Fabricate; See PDI for Specification
18	5FT6000643	1	Hydraulic Hose	Fabricate; See PDI for Specification
19	X6-8C5OX-S	1	Elbow Fitting	-
20	5FT630041	1	Hydraulic Pressure Valve	-
21	5FT790052	1	Gauge	-
22	5FT6000641	1	Hydraulic Hose	Fabricate; See PDI for Specification
23	X8F5OX-S	1	Adapter Fitting	-
24	X4R6X-S	1	Tee Fitting	-
25	X8S5OX-S	1	Tee Fitting	-
26	5FT500049	1	Valve	-
27	X8-10C5OX-S	1	Elbow Fitting	-
28	X4-6C5OX-S	1	Fitting	-
29	X8R6X-S	1	Tee Fitting	-
30	5FT6000631	1	Hydraulic Hose	Fabricate; See PDI for Specification
31	5FT6000421	2	Hydraulic Hose	Fabricate; See PDI for Specification
32	5FT60004234	1	Hydraulic Hose	Fabricate; See PDI for Specification
33	5FT6000423	1	Hydraulic Hose	Fabricate; See PDI for Specification
34	X4-8F5OX-S	1	Adapter	-
35	5FT610096	2	Fitting	-

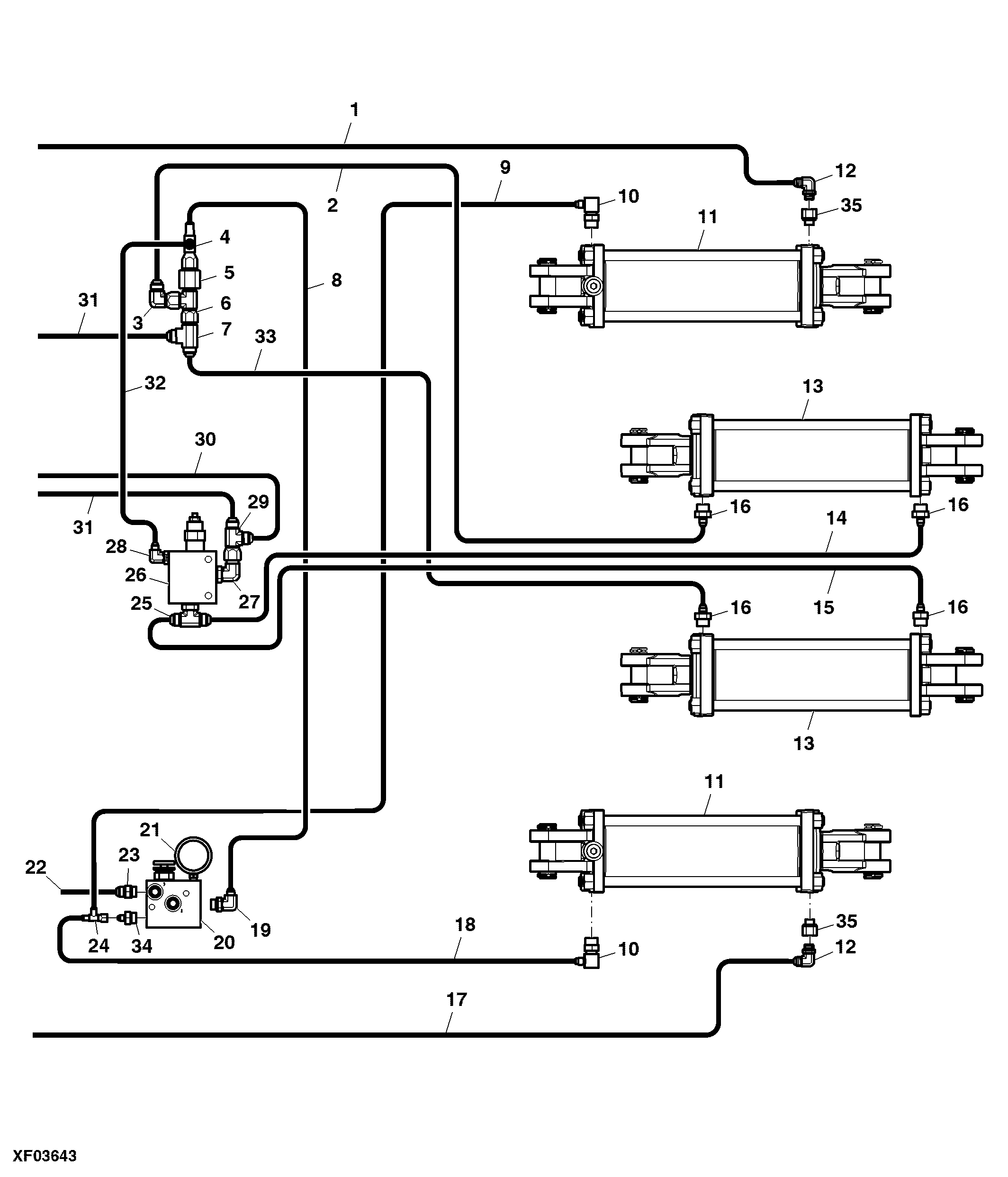

Main Lift and Down Pressure Cylinder, Hoses, Fittings, Side Fold Hydraulics

Нет текстового описания
