Открытый узел

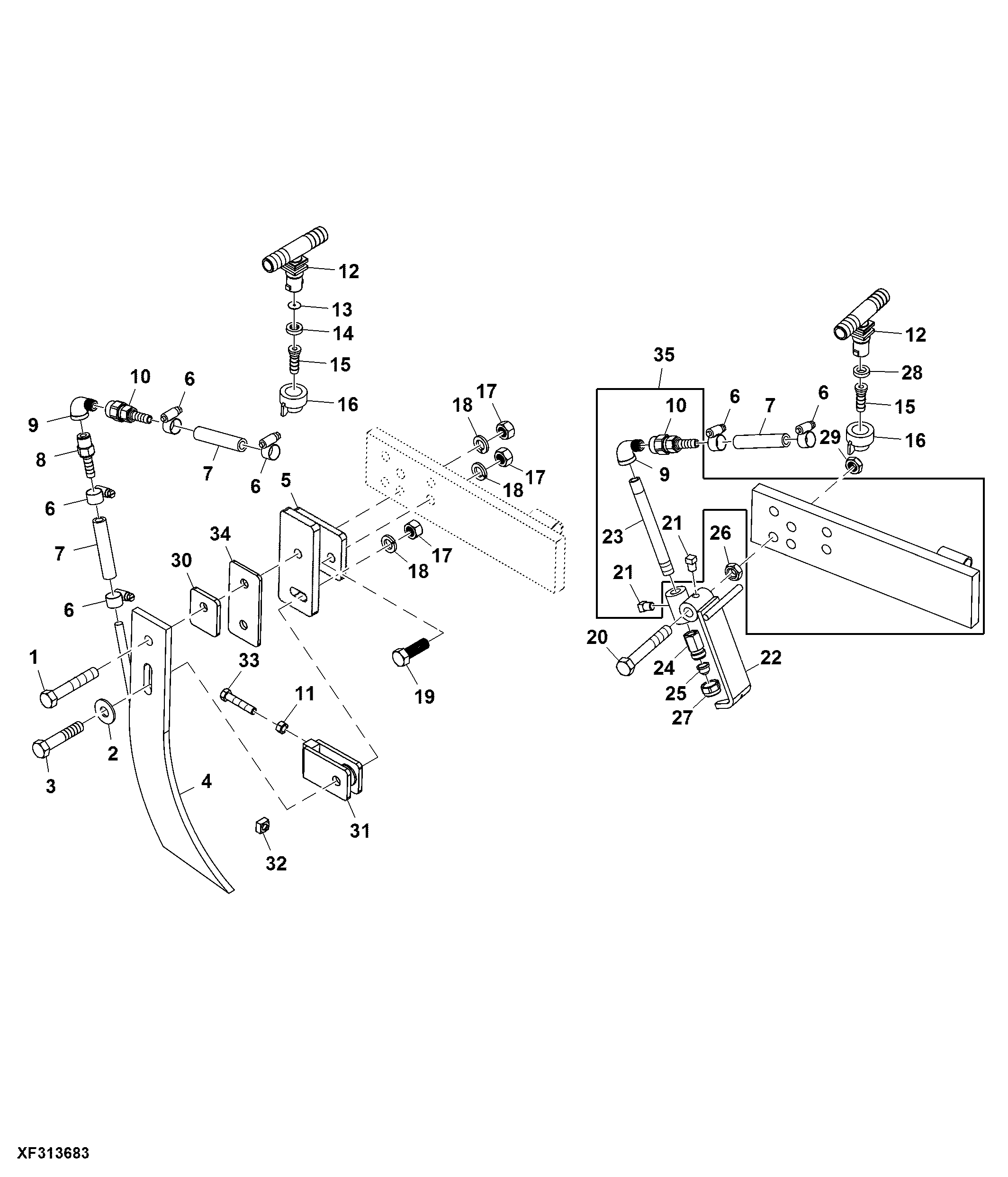

Coulter Knife and Injection ( - 189949)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1945	1	Cap Screw	1/2" X 3-1/4"
2	24H1191	2	Washer	1/2" X 1-1/2" X 0.105"
3	19H1930	1	Cap Screw	1/2" X 2-1/2"
4	5FT750003	1	Colter Knife	-
5	5FT17915	1	Mounting Parts	Knife Mount
6	TY22464	4	Clamp	5/16"
7	TY24411	1	Bulk Hose	3/8", AG EPDM Sprayer Hose
8	5FT530247	1	Hose Fitting	-
9	5FT530246	1	Elbow Fitting	1/4", Street, NPT SS
10	5FT530188	1	Check Valve	Hose Shank Check Valve Assembly
11	14H1076	1	Nut	3/8"
12	5FT520003	1	Elbow Fitting	3/4", Elbow Hose Barb
12	5FT520004	1	Hose Fitting	3/4", Tee Hose Barb
13	5FTCP4916125	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP4916140	1	Plate	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP4916115	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP491693	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP491691	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP491680	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP491678	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP491675	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP491665	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP491663	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP4916177	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP4916151	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP4916144	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP4916132	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP4916107	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP4916103	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP491689	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
13	5FTCP491672	1	Disk	Orifice, Refer to OM for Orifice Selection Guide
14	5FT590029	1	Sealing Washer	Orifice Disc
15	5FT590077	1	Hose Fitting	Shank
16	5FT590076	1	Hose Fitting	-
17	14H1040	3	Nut	1/2"
18	12H301	3	Lock Washer	1/2"
19	19H1777	1	Cap Screw	1/2" X 1-3/4"
20	19H1992	1	Cap Screw	1/2" X 4", SS
21	22H844	2	SET SCREW	3/8" X 1/2"
22	5FT750089	1	Guard	Cast Injection Rock Guard SUB FOR 5FT750084
23	5FT530199	1	Threaded Nipple	1/4 X 5, SS
24	5FT520014	1	Nozzle Holder	SS
25	5FTTP0020	1	Nozzle	Tip SS - 20, See OM for Tip Selection Guidelines
25	5FTTP0040	1	Nozzle	Tip SS - 40, See OM for Tip Selection Guidelines
25	5FTTP0030	1	Nozzle	Tip SS - 30, See OM for Tip Selection Guidelines
25	5FTTP0015	1	Nozzle	Tip SS - 15, See OM for Tip Selection Guidelines
25	5FTTP0010	1	Nozzle	Tip SS - 10, See OM for Tip Selection Guidelines
25	5FTTP0008	1	Nozzle	Tip SS - 8, See OM for Tip Selection Guidelines
25	5FTTP0006	1	Nozzle	Tip SS - 6, See OM for Tip Selection Guidelines
25	5FTTP0004	1	Nozzle	Tip SS - 4, See OM for Tip Selection Guidelines
26	5FT750009	1	Nut	1/2" , Jam, SS
27	5FT520015	1	Sprayer Nozzleholder Caps	Nozzle Holder
28	5FT520016	1	Sealing Washer	-
29	5FT750011	1	Nut	1/2" , Nylock, SS
30	5FT17909	1	Spacer	Knife Mount
31	5FT17910	1	Mounting Parts	Knife Adjuster
32	5FT596762	1	Nut	3/8"
33	5FT596660	1	Bolt	3/8" X 2"
34	5FT17920	1	Shim	14 Guage
35	5FT90SAINJ	1	Nozzle Kit	INCLUDES 5FT520014
36	5FT17921	1	Shim	Not Illustrated 10 Guage
37	5FT17922	1	Shim	Not Illustrated 7 Guage

Coulter Knife and Injection ( - 189949)

Нет текстового описания
