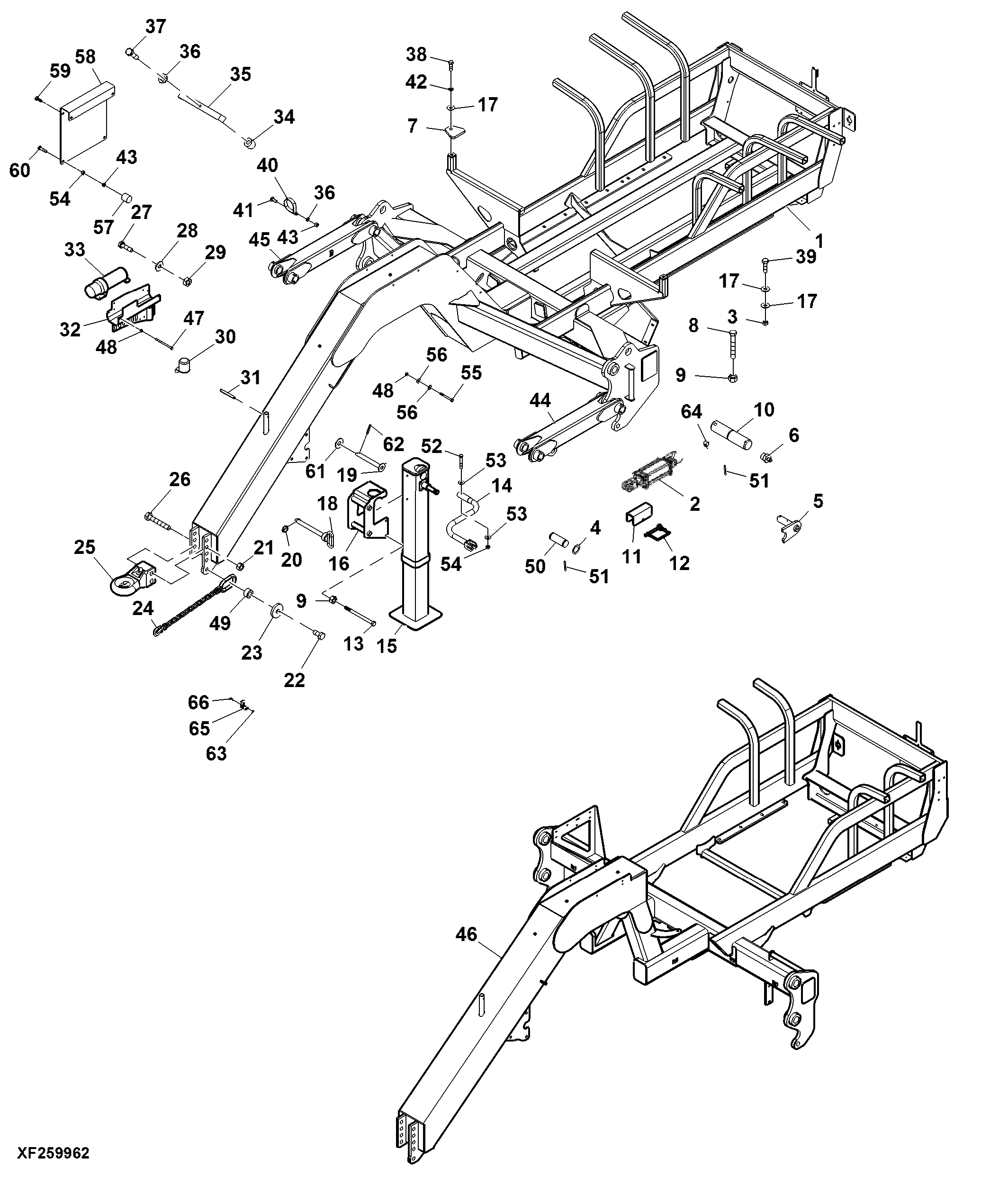

Cart, Vertical Fold, 1050 & 1350 & 1800 GAL ( - 189960)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	5FT16892	1	Agricultural Cart	Fertilizer Cart, 1800 GAL Tank
2	5FT620007	2	Hydraulic Cylinder	Main Lift
3	5FT232	6	Nut	5/8", Nylock
4	24H1666	6	Washer	1-17/64" X 1-7/8" X 0.075"
5	5FT18445	2	Pin	-
6	JD7842	10	Lubrication Fitting	-
7	5FT590023	2	Bracket	-
8	19H1781	8	CAP SCREW	1/2" X 3-1/2"
9	H32811	8	Lock Nut	1/2"
10	5FT17823	1	Pin	-
11	5FT15159	2	Stop	Cylinder
12	5FT720001	2	Spring	Pin Snap
13	19H3770	2	Cap Screw	1/2" X 7"
14	5FT790046	1	Handle	1800/2400 Gal Cart
14	5FT17846	1	Handle	1050/1350 Gal Cart
15	5FT790045	1	Jack	-
16	5FT15430	1	Holder	-
17	24H1368	14	Washer	21/32" X 1-5/16" X 0.090"
18	5FT590016	1	Pin	NLA; ORDER 5FT15440
18	5FT15440	1	Pin	-
19	5FT15437	1	Pin	-
19	5FT10782	1	Pin	NLA; ORDER 5FT15437
20	AA21292	2	Quick Lock Pin	0.25�?, Diameter
21	5FT596234	3	Nut	1", Nylock
22	19H2695	1	CAP SCREW	1" X 3-1/4"
23	5FT15829	1	Washer	-
24	AE71230	1	Safety Chain	Safety Chain; (30,000 LBF-133 KN)
24	AE71229	1	Safety Chain	Safety Chain; (20,000 LBF)
25	5FT790004	1	Hitch Kit	CAT 4 Black Large
26	5FT590153	2	Bolt	1 X 6-1/2, GR 5 ZP
27	19H1948	5	Cap Screw	1/4" X 3/4"
28	24H1753	5	Washer	1/4" X 9/16" X 0.049", ZP
29	5FT767	5	Nut	1/4�?, ZP
30	5FT740018	1	Holder	-
31	5FT707	1	Spring	3/8�? X 2�?, Pin Spring
32	5FT15810	2	Holder	-
33	5FT750048	1	Holder	-
34	5FT15566	2	Spacer	-
35	5FT15558	2	Bracket	Hose
36	12H304	4	Lock Washer	3/8"
37	19H1732	2	Cap Screw	3/8" X 1-1/4"
38	19H1734	2	Cap Screw	5/8" X 2"
39	19H2599	2	Cap Screw	5/8" X 2-1/2"
40	N304948	2	Clamp	Hose Ring 3"
40	N302180	2	Clamp	Hose Ring 4"
41	03H1519	2	Bolt	3/8" X 1"
42	12H294	2	Lock Washer	5/8"
43	14H1076	2	Nut	3/8"
44	5FT15325	2	Lift Arm	Lower Lift
44	5FT17822	2	Lift Arm	Lower Lift
45	5FT17820	2	Lift Arm	Upper Lift
45	5FT15330	2	Lift Arm	Upper Lift
46	5FT17001	1	Agricultural Cart	Cart, Weldment 1050 and 1350 GAL Tank
47	19H2342	2	CAP SCREW	5/16" X 4-1/2"
48	5FT236	3	Lock Nut	5/16"
49	5FT15835	1	Spacer	-
50	5FT620075	2	Pin	-
51	34M7314	6	Spring Pin	5 X 55 mm
52	19H1733	1	CAP SCREW	3/8" X 2-1/2"
53	HXE40491	4	Washer	3/8"
54	N318723	5	Lock Nut	3/8"
55	19H1904	1	Cap Screw	5/16" X 3"
56	5FT257	2	Washer	5/16"
57	5FT750050	2	Bumper	-
58	5FT15813	1	Plate	Rate Controller
59	19H1731	2	Cap Screw	3/8" X 1"
60	19H1800	4	Cap Screw	3/8" X 1-1/2"
61	24H1236	1	Washer	13/16" X 2" X 0.149"
62	A26311	1	PIN	1/4" X 1-1/2"
63	PM80275	1	Nut	10-32, Nylock
64	5FT22923	2	Bushing	1-1/4" X 1-1/2" X 1"
65	5FT15845	1	Bracket	Height Switch - 1800/2400
65	5FT15854	1	Bracket	Height Switch - 1050/1350
66	PM61446	1	Screw	10-32 X 1-1/2"
67	AN233318	2	Stop	(Not Illustrated) Cylinder Stop 3/4''
67	AN233320	2	Stop	(Not Illustrated) Cylinder Stop 1''
67	AN233321	2	Stop	(Not Illustrated) Cylinder Stop 1-1/4''
67	AN233322	2	Stop	(Not Illustrated) Cylinder Stop 1-1/2''

Cart, Vertical Fold, 1050 & 1350 & 1800 GAL ( - 189960)
