Открытый узел

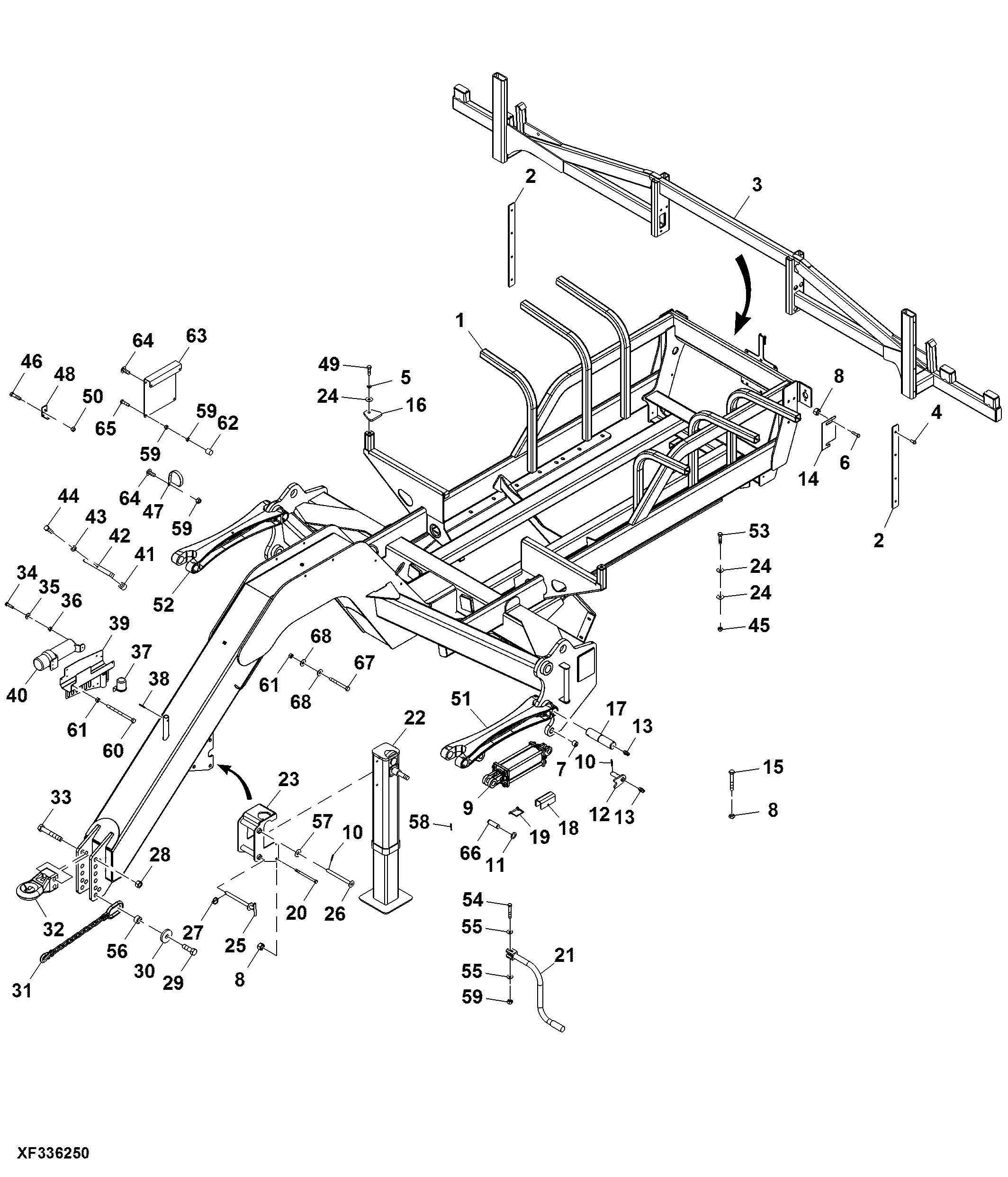

Cart, Side Fold, 1800 and 2400 GAL ( - 189960)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	5FT15300	1	Agricultural Cart	Fertilizer Cart, 2400 GAL Tank
1	5FT16892	1	Agricultural Cart	Fertilizer Cart, 1800 GAL Tank
2	5FT590170	1	Plate	-
3	5FT15480	1	Rack Kit	Transport Rack
3	5FT15485	1	Rack	132", Wheel Spacing, Transport Rack
4	5FT581	8	Rivet	1/4"
5	12H294	2	Lock Washer	5/8"
6	19H1831	6	Cap Screw	1/2" X 2"
7	5FT22923	2	Bushing	1-1/4" X 1-1/2" X 1"
8	H32811	6	Lock Nut	1/2, ZN
9	5FT620073	2	Hydraulic Cylinder	Main Lift
9	5FTMI661729	1	Seal Kit	USE WITH 5FT620073
10	5FT683	3	Pin	1/4�? X 1-1/2"
11	24H1666	2	Washer	1-17/64" X 1-7/8" X 0.075"
12	5FT18445	2	Pin	-
13	JD7842	10	Lubrication Fitting	-
14	5FT18086	1	Shim	-
15	19H1781	8	CAP SCREW	1/2" X 3-1/2"
16	5FT590023	2	Bracket	-
17	5FT15848	8	Pin	2" X 8"
18	5FT15159	2	Stop	-
19	5FT720001	2	Spring	Spring Clip
20	08H4268	2	Cap Screw	1/2" X 7"
21	5FT790046	1	Handle	Jack
22	5FT790045	1	Jack	-
23	5FT15430	1	Holder	-
24	24H1368	14	Washer	21/32" X 1-5/16" X 0.090"
25	5FT15440	1	Pin	-
26	5FT15437	1	Pin	-
27	AA21292	1	Quick Lock Pin	0.25", DIA
28	5FT596234	3	Nut	1", Nylock
29	19H2695	1	CAP SCREW	1" X 3-1/4"
30	5FT15829	1	Washer	-
31	AE71230	1	Safety Chain	-
32	5FT790004	1	Hitch Kit	Hitch, Cat 4 Black Large
33	5FT590153	2	Bolt	1 x 6-3/4", GR 5 ZP
34	19H1948	5	Cap Screw	1/4" X 3/4"
35	5FT256	2	Washer	1/4", ZP
36	5FT767	5	Nut	1/4", ZP
37	5FT740018	1	Holder	-
38	5FT707	1	Spring	3/8" X 2", Spring Pin
39	5FT15810	2	Holder	-
40	5FT750048	1	Holder	-
41	5FT15566	2	Spacer	-
42	5FT15558	2	Bracket	-
43	12H304	2	Lock Washer	3/8", Helical Spring Lock
44	19H1732	2	Cap Screw	3/8" X 1-1/4"
45	5FT590179	6	Washer	1" X 14, GA
46	PM61446	1	Screw	10-32 X 1-1/2"
47	N302180	2	Clamp	VINYL COATED P-CLAMP
48	5FT15845	1	Bracket	Height Switch
49	19H1734	2	Cap Screw	5/8" X 2"
50	PM80275	1	Nut	10-32, Nylock
51	5FT750052M	2	Lift Arm	-
52	5FT750051M	2	Lift Arm	-
53	19H2599	1	Cap Screw	5/8" X 2-1/2"
54	19H1733	1	CAP SCREW	3/8" X 2-1/2"
55	HXE40491	4	Washer	-
56	5FT15835	1	Spacer	-
57	24H1692	1	Washer	13/16" X 2" X 0.120"
58	34M7314	6	Spring Pin	5 X 55 mm
59	N318723	9	Lock Nut	3/8"
60	19H2342	2	CAP SCREW	5/16" X 4-1/2"
61	5FT236	3	Lock Nut	5/16"
62	5FT750050	2	Bumper	-
63	5FT15813	1	Plate	Rate Controller
64	19H1731	6	Cap Screw	3/8" X 1"
65	19H1800	2	Cap Screw	3/8" X 1-1/2"
66	5FT15158	2	Pin	-
67	19H1660	1	CAP SCREW	5/16" X 3"
68	5FT257	2	Washer	-
69	5FT687	2	Pin	(Not Illustrated)
70	AN233318	1	Stop	(Not Illustrated) Stop, Hydraulic Cylinder Depth
70	AN233320	1	Stop	(Not Illustrated) Stop, Cylinder Depth - 1"
70	AN233321	1	Stop	(Not Illustrated) Stop, Cylinder Depth - 1-1/4"
70	AN233322	1	Stop	(Not Illustrated) Stop, Cylinder Depth - 1-1/2

Cart, Side Fold, 1800 and 2400 GAL ( - 189960)
