Wing Fold Hydraulic Lines, 23 Row (770101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7192	1	Bolt	M10 X 30
2	14H904	1	Nut	3/4"
3	19H2284	2	Cap Screw	3/8" X 7/8"
4	19M7784	6	Screw	M10 X 20
5	19M7829	4	Screw	M16 X 130
6	19M8039	2	Screw	M8 X 80
7	24M7053	4	Washer	17 X 30 X 3 mm
8	A27898	1	Union Fitting	-
9	A31869	4	Lock Nut	-
10	R38556	1	Hose	-
11	A59667	2	Hydraulic Restrictor	-
12	AA29209	1	Pressure Relief Valve	-
13	R70921	3	Adapter Fitting	-
14	AA36968	8	Hydraulic Hose	-
15	R81695	2	Plug	-
16	AKK39297	2	Hydraulic Hose	-
17	AH20193	2	Elbow Fitting	-
18	R82290	2	End	-
19	T149597	1	Clamp	-
20	AH75164	5	Elbow Fitting	-
21	AHC12097	2	Hydraulic Cylinder	-
22	U12547	3	O-Ring	-
23	AN210585	2	Tee Fitting	-
24	AKK39295	2	Hydraulic Hose	-
25	AKK39296	2	Hydraulic Hose	-
26	AKK39299	2	Hydraulic Hose	-
27	AH176901	2	Hydraulic Cylinder	-
28	AN237074	2	Hydraulic Cylinder	-
29	AKK39307	2	Hydraulic Hose	-
30	AN280978	1	Adapter Fitting	-
31	AN33434	2	Tee Fitting	-
32	AN400687	1	Manifold	-
33	AN400824	2	Control Valve	-
34	AR21837	2	Clamp	-
35	AT26327	2	Tee Fitting	-
36	AT32332	11	Elbow Fitting	-
37	AT54268	1	Tee Fitting	-
38	AW16707	1	Union Fitting	-
39	E63525	2	Nut	-
40	E63526	1	Nut	-
41	KK10908	1	Angle	-
42	R30815	1	Fitting	-
43	N233432	4	Hydraulic Restrictor	-
44	N281475	1	Hydraulic Restrictor	-
45	N402076	2	Plate	-
46	R26375	1	O-Ring	-
47	R26906	2	O-Ring	-
48	R27237	10	Fitting	-
49	AKK39268	2	Hydraulic Hose	-
50	AKK39269	1	Hydraulic Hose	-
51	AKK39260	2	Hydraulic Hose	-
52	AKK39298	2	Hydraulic Hose	-
53	AHC12110	2	Hydraulic Cylinder	-

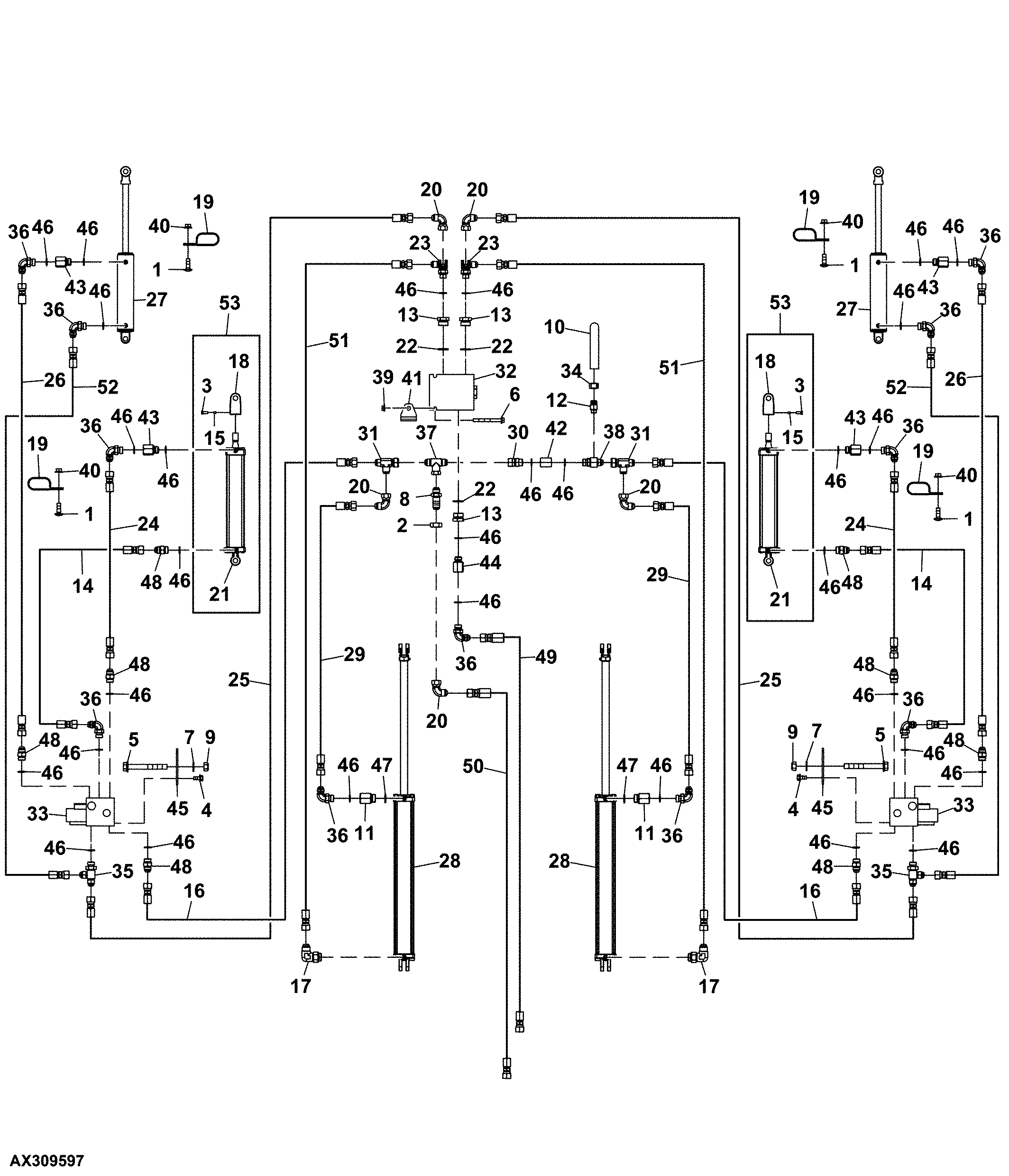

Wing Fold Hydraulic Lines, 23 Row (770101 - )
