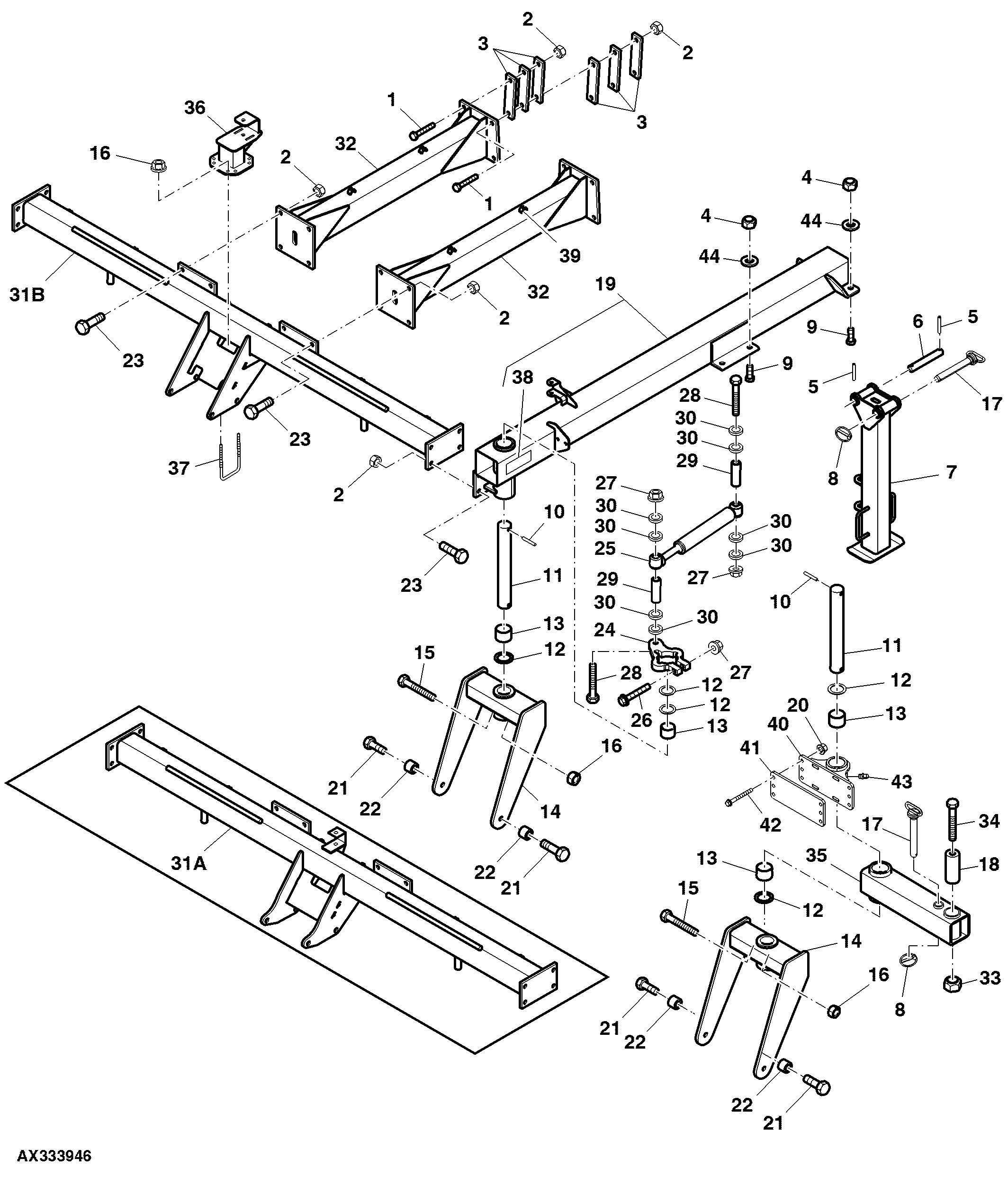

Wheel Mounting Frame, Yokes and Crosstubes

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7495	4	Cap Screw	M16 X 100
2	A31869	12	Lock Nut	-
3	N330484	6	Plate	-
4	A31870	6	Lock Nut	-
5	E63018	2	Spring Pin	-
6	N238376	1	Pin Fastener	-
7	AN235792	1	Stand	-
8	AA21292	2	Quick Lock Pin	-
9	19M7612	6	Cap Screw	M20 X 55
10	A85641	2	Spring Pin	-
11	N330169	2	Pin Fastener	-
11	KK41430	1	Pin Fastener	16 Row
12	N237227	4	Washer	-
13	N237306	4	Bushing	-
14	AN235626	2	Yoke	-
15	19M7914	2	Cap Screw	M12 X 120
16	A31867	6	Lock Nut	-
17	PM01512	2	Pin Fastener	-
18	N330438	1	Bushing	-
19	AN235630	1	Support	RH Illustrated
19	AN236971	1	Support	SUB FOR AN235631, LH
20	14M7589	6	Lock Nut	M16
21	19M7831	4	Screw	M20 X 80
22	H156127	4	Sleeve	-
23	19M7759	2	Cap Screw	M16 X 60
24	N330938	1	Plate	-
25	N331309	1	Shock Absorber	-
26	19M7817	1	Screw	M12 X 70
27	14M7401	3	Lock Nut	M12
28	19M7820	2	Screw	M12 X 100
29	M135798	4	Bushing	SUB FOR N330943 APPL
30	24H448	8	Washer	25/32" X 1-1/8" X 0.090"
32	AN235633	2	Tube	-
33	A31871	1	Lock Nut	-
34	19M7734	1	Cap Screw	M24 X 220
35	AN235788	1	Structural Tube	-
36	AN236271	1	Bracket	SUB FOR AN236449
37	A75087	2	U-Bolt	-
38	N332029	1	Safety Sign	-
39	N239610	1	Bracket	-
40	AN403118	1	Bracket	SUB FOR AN400205
41	N401469	1	Plate	-
42	19M7830	6	Screw	M16 X 150
43	JD7844	1	Lubrication Fitting	-
44	N231749	6	Washer	-
31A	AN236604	1	Wing Frame	SUB FOR AN235632, INCLUDES N239916
31B	AN400681	1	Wing Frame	MY08 AND PRIOR ALSO ORDER AN236271, (2) A75087 AND (4) A31867, SUB FOR AN236855, INCLUDES N239916
