Depth Control Hydraulic Lines, 15 Row (770101 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AA29209	1	Pressure Relief Valve	-
2	H35112	2	Adapter Fitting	-
3	AR94522	2	Hydr. Quick Coupler Plug	-
4	AR21837	1	Clamp	-
5	AN260207	1	Filter	-
6	AW16707	1	Union Fitting	-
7	AN280712	2	Gauge	-
8	R38556	1	Hose	-
9	19H1813	4	CAP SCREW	5/16" X 5/8"
10	N114610	2	Orifice	-
11	AN261475	1	Elbow Fitting	-
12	AH75164	10	Elbow Fitting	-
13	AT32332	8	Elbow Fitting	-
14	AE14428	1	Elbow Fitting	-
15	R26375	1	O-Ring	-
16	AN140263	6	Tee Fitting	-
17	AAK39273	1	PART MISSING IN WISE	-
18	AKK39282	2	Hydraulic Hose	-
19	AKK39287	1	Hydraulic Hose	-
20	AN240195	4	Hydraulic Hose	ORDER AKK27129
20	AKK27129	4	Hydraulic Hose	ORDER AKK39289
20	AKK39289	2	Hydraulic Hose	-
21	AKK39291	1	Hydraulic Hose	-
22	AKK39278	1	Hydraulic Hose	-
23	R30815	1	Fitting	-
24	AN280978	5	Adapter Fitting	-
25	R27237	1	Fitting	-
26	AN281426	5	Valve	ORDER AFH216499
26	AFH216499	5	Valve	-
27	AN33434	4	Tee Fitting	-
28	N117554	2	Orifice	-
29	A47028	2	Orifice	-
30	AKK18195	2	Valve	Manual Control
30	AKK18196	2	Valve	TruSet™ Control
31	AH212681	2	Hydraulic Cylinder	-
32	AH212757	2	Hydraulic Cylinder	-
33	AW21857	8	Fitting	-
34	AH214207	2	Hydraulic Cylinder	-
35	AKK39281	1	Hydraulic Hose	-
36	AKK39280	1	Hydraulic Hose	-
37	AKK39279	1	Hydraulic Hose	-
38	AKK39290	2	Hydraulic Hose	-
39	AKK39292	1	Hydraulic Hose	-
40	AKK39286	1	Hydraulic Hose	-
41	AKK39272	1	Hydraulic Hose	-
42	51M7041	2	O-Ring	11.300 X 2.200 mm
43	64M1017	2	Drain Plug	-

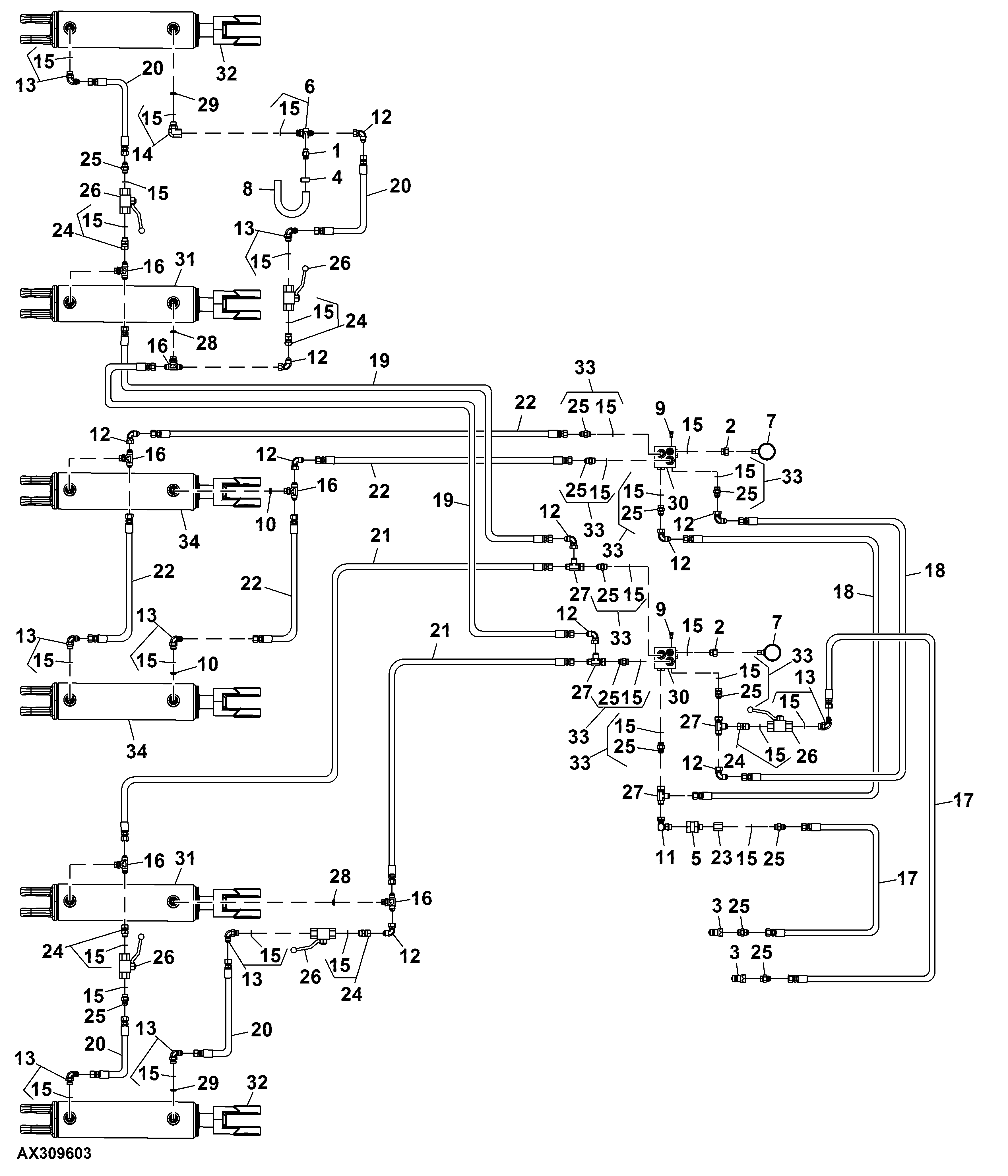

Depth Control Hydraulic Lines, 15 Row (770101 - )

Нет текстового описания
